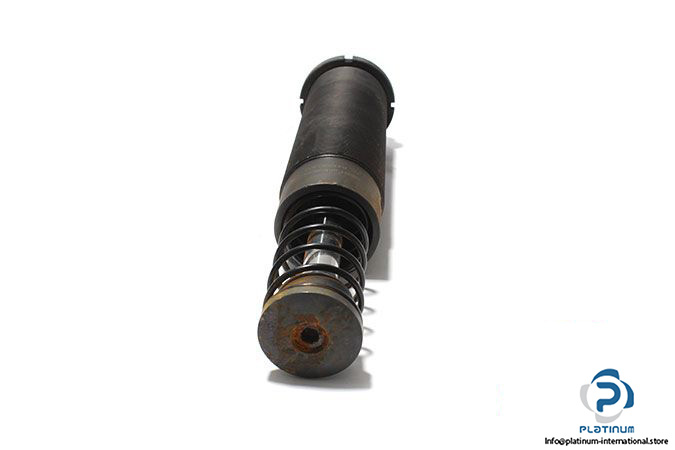

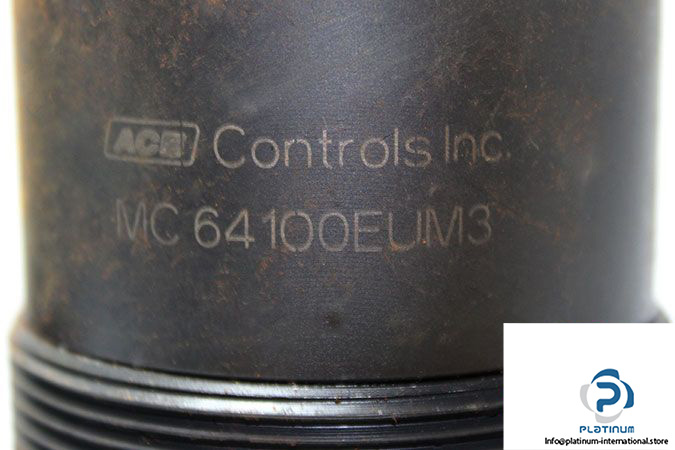

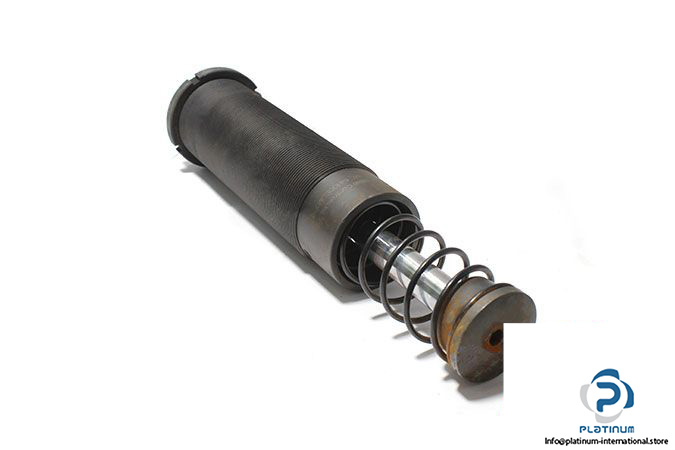

ACE Controls MC 64100EUM3 Shock Absorber

Manufacturer: ACE CONTROLS

Type: SHOCK ABSORBER

Model: MC 64100EUM3

Material

Outer body: Nitride hardened steel

Piston rod: Hard chrome plated steel

Rod end button: Hardened steel and corrosion-resistant

Energy capacity: 33,000 in-lbs/cycle

Return Force: min. 23.5 lbs

Return Force: max. 61.0 lbs

Return Time: 0,34 s

Stroke Length: 3.91 in

Rod Diameter: 0.75 in

Piston Diameter: 1.9 in

Total length: 12.85 in

Diameter: 2.5 in

Temperature Range: -10 … 80 ^°C

Weight: 3.8 kg
