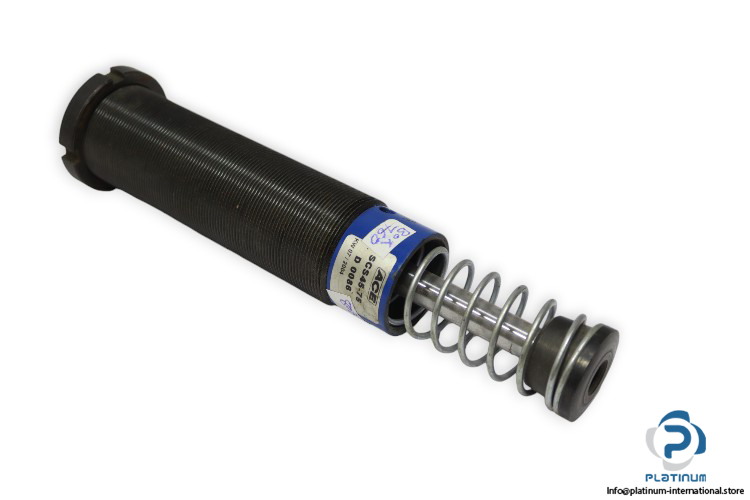

ACE SCS45-75 Shock Absorber

Manufacturer: ACE CONTROLS
Type: Shock Absorber
Model: SCS45-75

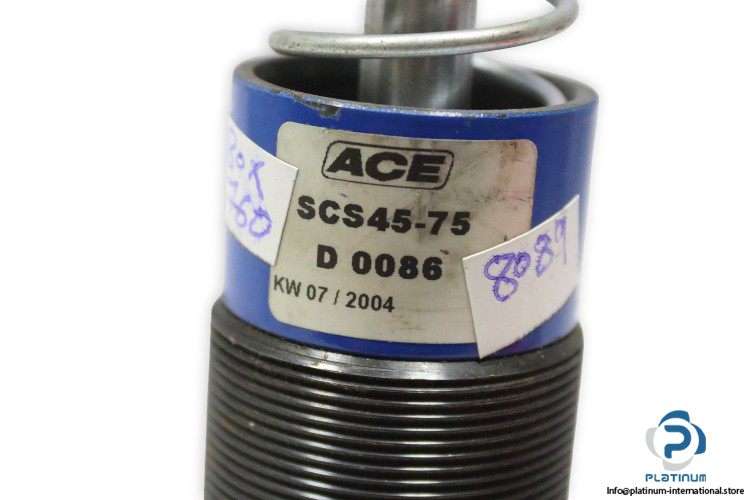

MNR:  SCS45-75 D 0086

Piston Diameter: 45 mm
stroke: 75 mm
Energy capacity optimized: 30,978 in-lbs/cycle
Energy capacity: 6,019 in-lbs/Cycle to 30,978 in-lbs/Cycle
Impact velocity range: 0.06 ft/sec to 16 ft/sec
Operating temperature range: 10 °F to 158 °F
Material
Outer body: Nitride hardened steel
Piston rod: Hard chrome plated steel
Rod end button: Hardened steel and corrosion-resistant coating
Return spring: Zinc plated or plastic-coated steel
Length: 245 mm
