Advanced Energy MDX 500 Power Supply
1 099,99$
Advanced Energy Power Supply MDX500 “ High-performance power supply with 500 W output, selectable ramp timer, and robust design for industrial applications.
Advanced Energy Power Supply MDX500
Manufacturer: Advanced Energy
Type: Power Supply
Model: MDX500

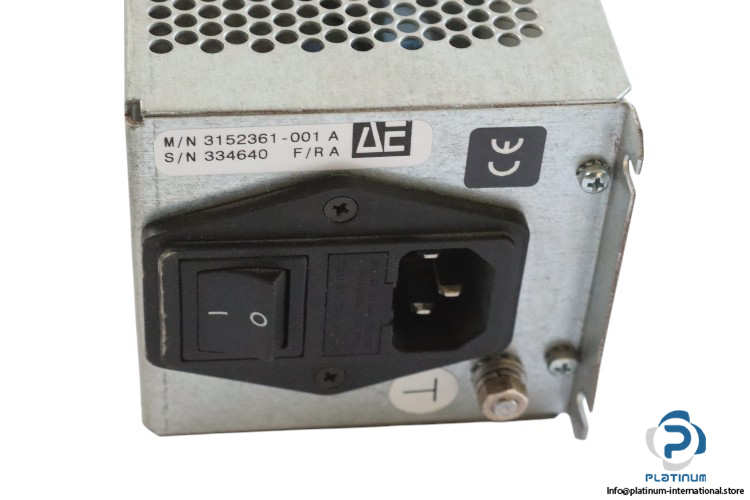

DC Sputter Manufacturer No.: 3152361-001 A

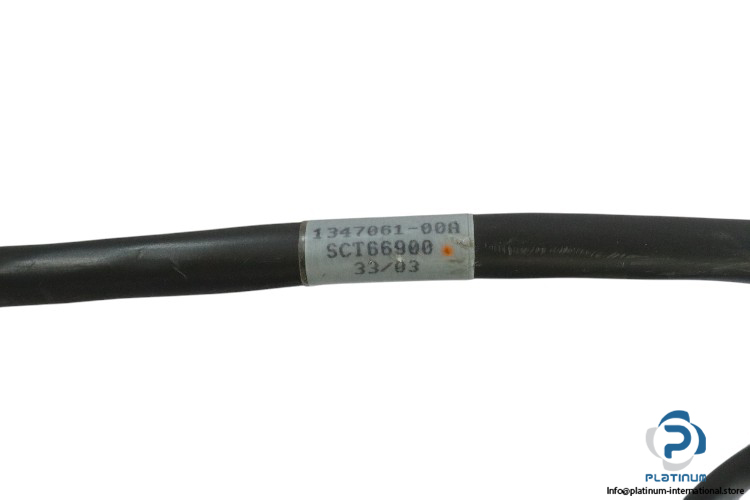

Cable No.: 1347061-00A SCT66900 33/03
The Advanced Energy MDX500 is a high-performance power supply designed for precision applications, including DC sputtering processes. Known for its reliability and versatile performance, this power supply ensures stable output under varying operational conditions, making it a preferred choice for industrial and laboratory applications.
Technical Specifications:

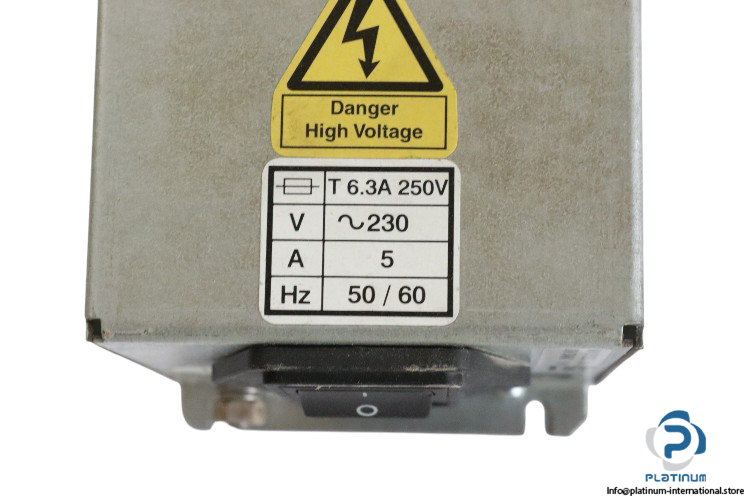

- Input Voltage: 115/230 V AC
- Input Current: 10/5 A
- Frequency: 50/60 Hz
- Output Voltage:
- Low Tap: 0 to 600 V, 900 V Ignition Voltage
- High Tap: 0 to 1200 V, 1200 V Ignition Voltage
- Output Current:
- Low Tap: 0 to 1 A
- High Tap: 0 to 0.5 A
- Output Power: 0 to 500 W
- Ramp Timer: 0.1, 1.0, or 10 seconds (selectable at the rear panel)

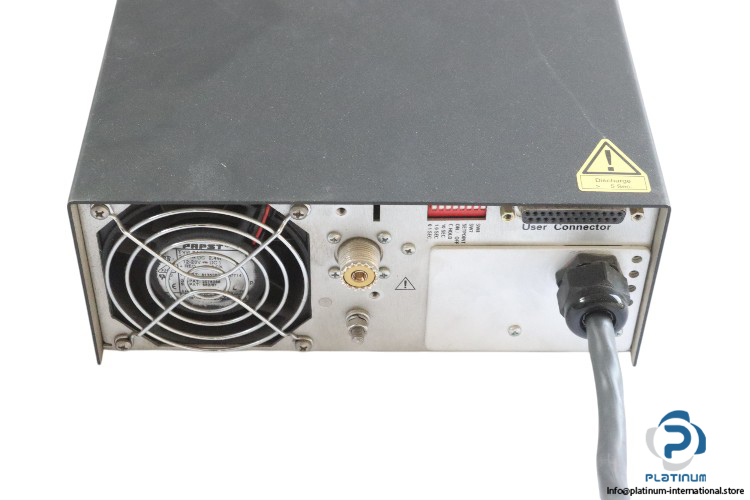

- Power Output Connector: UHF style “N” type (optional SHV style)
- Operation Temperature: 0 to 40 °C
- Dimensions: 381 x 89 x 216 mm
The MDX500 is compact, user-friendly, and engineered for high precision. It is well-suited for applications requiring stable and controlled power delivery, such as DC sputtering and other specialized industrial uses. The selectable ramp timer and versatile connector options add flexibility to its operation.
