Aeco SI12-A2 NO Inductive Sensor
Neu
Auf Lager1 EinheitVersandbereit
Induktiver Sensor AECO SI12-A2 NO induktiver Näherungssensor mit AC-Betriebsspannung 20–250 Vac, 2 mm Erfassungsabstand, M12 Gehäuse und LED-Statusanzeige für industrielle Automatisierungserkennungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

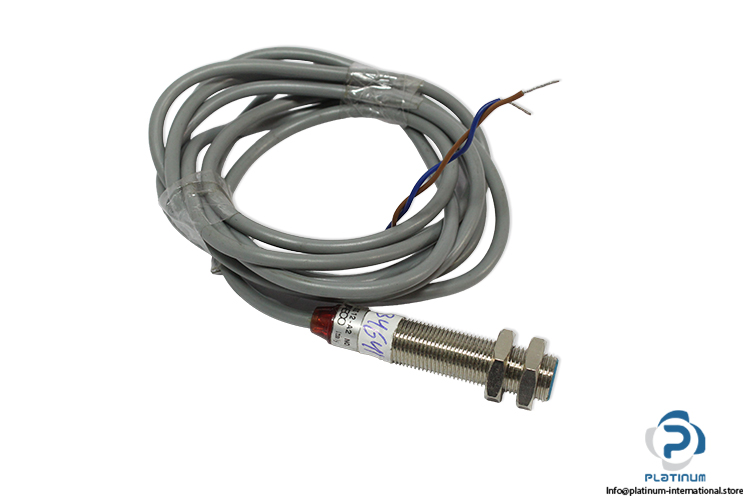

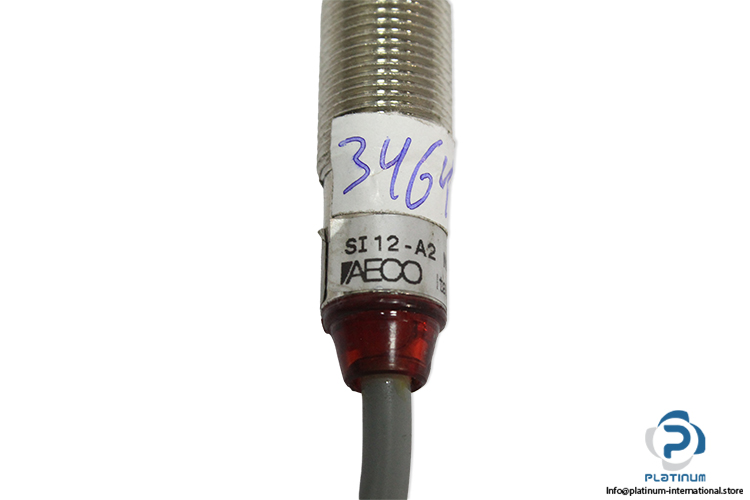

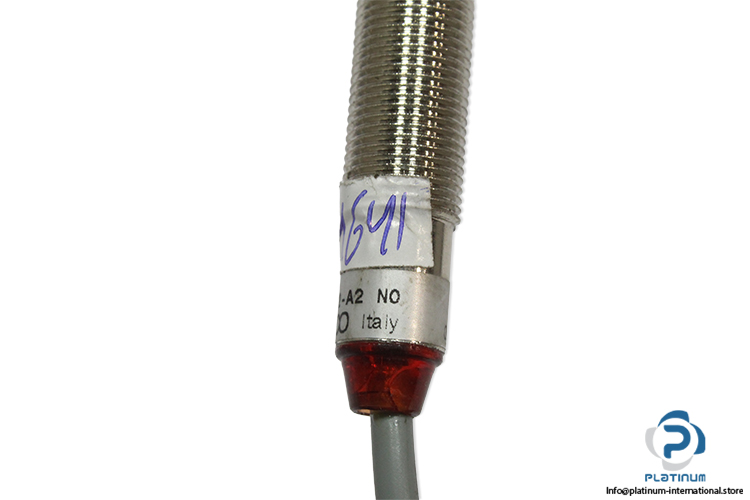

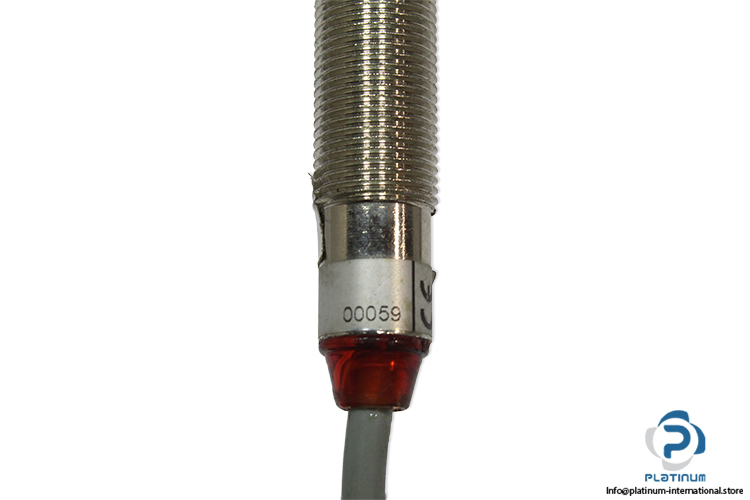

AECO SI12-A2 NO Inductive Sensor
The AECO SI12-A2 NO is an industrial inductive proximity sensor designed for reliable non-contact detection of metallic objects in automation and machine control systems. With an M12 cylindrical housing and AC power supply capability, this sensor provides stable switching performance and robust protection for industrial environments.
Manufacturer: AECO
Type: Inductive Sensor
Model: SI12-A2 NO
Code: 00059
| Working Voltage | 20 to 250 Vac |
| Power Supply Type | Alternating Current |
| Function | NO |
| Dimensions | M12 x 60 mm |
| Max Voltage Drop | 6 V |
| Max Output Current | 300 mA |
| Minimum Output Current | 5 mA |
| Max Peak Current | 1.5 A |
| Residual Current | 1 mA |
| Max Switching Frequency | 12 Hz |
| Detection Zone Switching Distance (Sn) | 2 mm |
| Real Sensing Distance (Sr) | 2 ± 10% mm |
| Operative Distance (So) | 0 ÷ 1.62 mm |
| Correction Factor | Stainless Steel: 0.9 - Brass: 0.5 - Aluminium: 0.4 - Copper: 0.4 |
| Hysteresis | < 10 %Sr |
| Switching Point Drift | -10 ÷ +10 %Sr |
| Repeatability | < 3 %Sn |
| Environmental Conditions Temperature Limits | -25 ÷ +70 °C |
| IP Rating | IP65 - IP66 - IP67 |
| Display | Output Switching Status “ 1 x LED (Yellow) |
