AEG 910-202-209 Motor Circuit Protector
Neu
Auf Lager1 EinheitVersandbereit
AEG Motor-Leistungsschalter MBS 16 mit einstellbarem Auslösestrombereich (6-10 A), ausgelegt für Betriebsspannungen von 380/500/660 V. Ideal zum Motorschutz in industriellen Anwendungen.
0660157163380500660AdjustableAEGCircuitCurrentIECIndustrialMBSmotorNominalPolesProtectionprotectorRatedreleaseVVDE
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

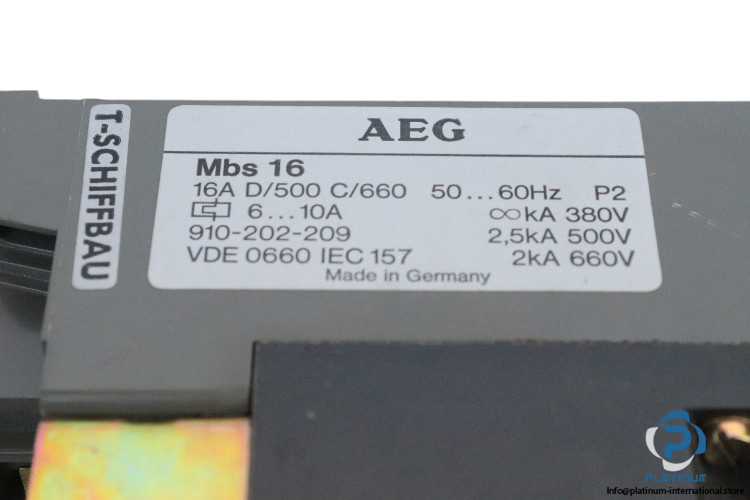

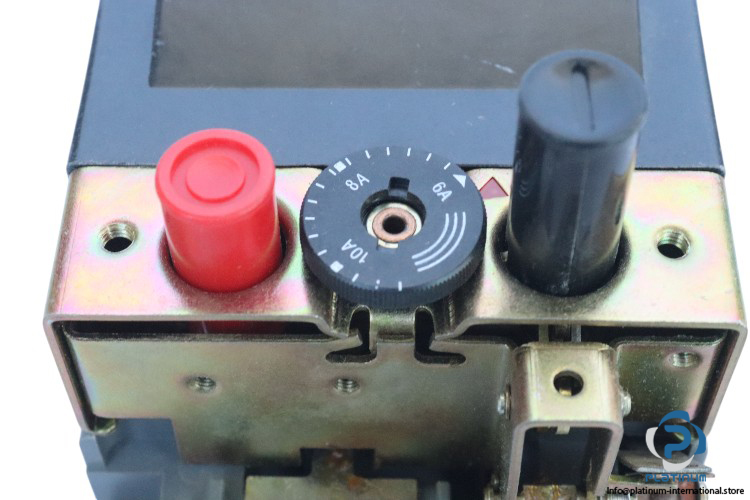

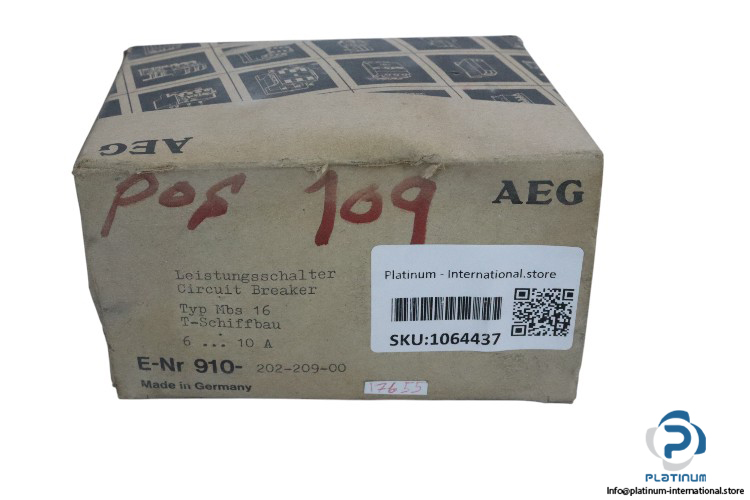

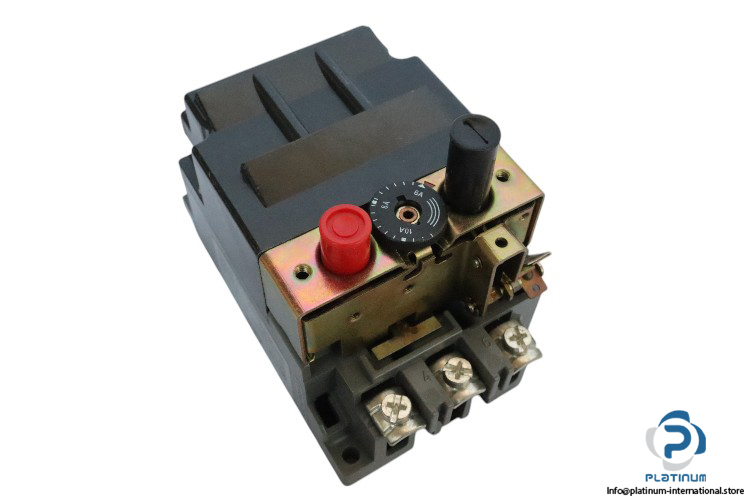

AEG Motor Circuit Protector MBS 16
AEG Motor Circuit Protector MBS 16 is a high-quality motor protection solution designed for industrial applications. With adjustable release current and reliable performance, it provides essential protection for motors and electrical circuits. Below are the key technical specifications:
- Manufacturer: AEG
- Type: Motor Circuit Protector
- Model: MBS 16
- Part No.: 910202209
Technical Data:
- Number of Poles: 3
- Rated Nominal Current (In): 16 A
- Release Current Range: 6 to 10 A
- Rated Operational Voltage: 380/500/660 V
- Frequency: 50 to 60 Hz
- Standard: VDE 0660, IEC 157
