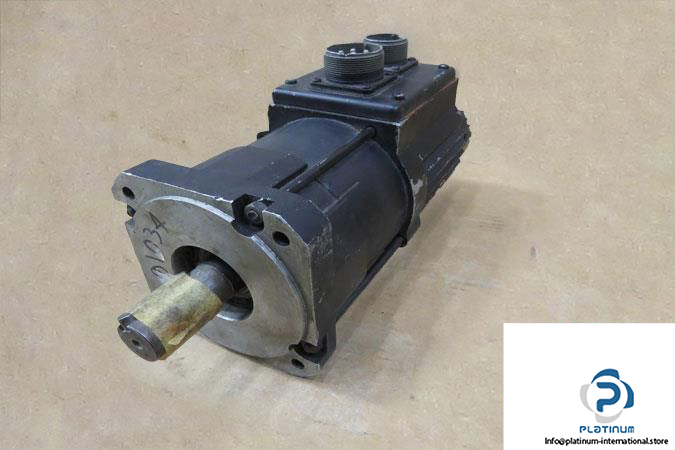

AEG Bhtb 2202-201L AC Servo Motor

Manufacturer: AEG

Type: PERMANENT MAGNET AC SERVO MOTOR

Model: BHTB 2202-201L

MRN: M42202-00L-201

Voltage: 300 V

Current: 6.8 A Rated stall; 20 A Peak stall

Torque: 6.6 Nm Rated stall; 18.5 Nm Peak stall

Speed: Max. 3000 rpm

Speed Sensor: 12.5 V/KRPM

Position Sensor: Digital 6BII
