Agilent MS40+ Rotary Vane Pump
Gebraucht
Auf Lager12 EinheitenVersandbereit
Rotary Vane Pump
Agilent MS40+ RVP Rotary Vane Pump with 40 m3/h flow rate and 1450 rpm pumping speed. Comes with LAFERT AG80ZBA4X motor and Agilent SS 40+ control unit for optimized vacuum applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Agilent MS40+ RVP Rotary Vane Pump
The Agilent MS40+ RVP Rotary Vane Pump is designed for high-performance vacuum applications with a flow rate of 40 m3/h and pumping speed of 1450 rpm. This rotary vane pump offers reliable and consistent performance for demanding processes.

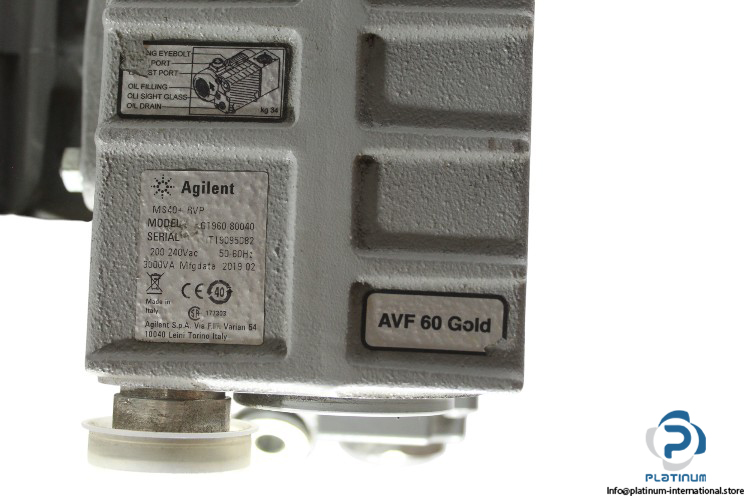

Manufacturer: Agilent
Model: MS40+ RVP
Alt Model: G1960 80040
Serial No.: IT19095DB2

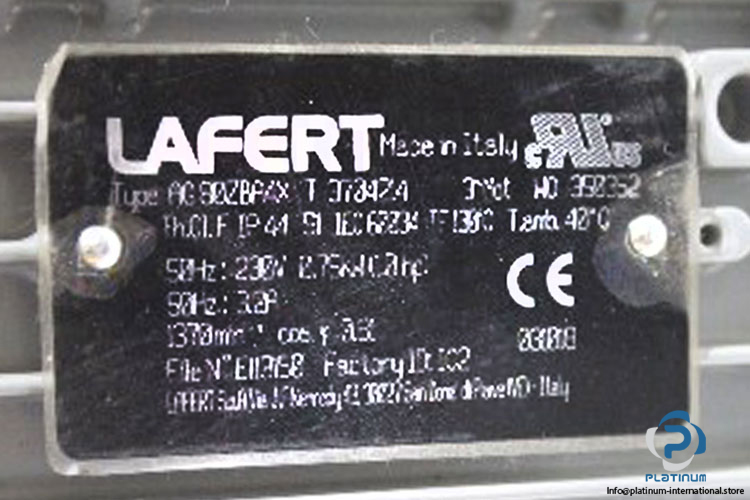

Lafert AG80ZBA4X T 3704214 3-Phase E-Motor
Technical Information:

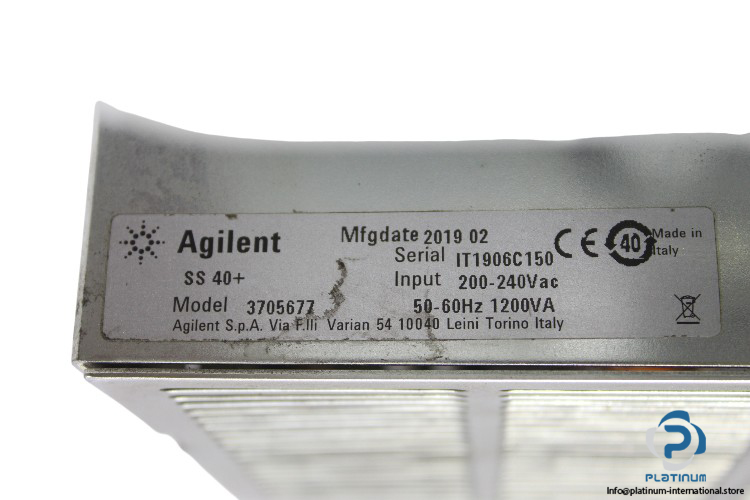

Agilent SS 40+ Control Unit
Technical Information:
| Rated Voltage [VAC] | 200 to 240 |
| Max Input Power [VA] | 3000 |
| Frequency [Hz] | 50/60 |
| Vacuum Fluid | AVF 60 GOLD |
| Pumping Speed (at 5 mbar inlet pressure) | 1450 rpm |
| Flow Rate | 40 m3/h |
| Attachment 1 | LAFERT AG80ZBA4X T 3704214 MOTOR |
| Part No. | 350352 |
| Code | 031018 |
| Rated Voltage [V] | 230 |
| Rated Current [A] | 3.2 |
| Rated Power [kW] | 0.75 |
| Horsepower [Hp] | 1 |
| Rated Speed [rpm] | 1370 |
| Protection Class [IP] | 44 |
| Duty | S1 Cont. |
| Frequency [Hz] | 50 |
| Power Factor [cos] | 0.81 |
| Ambient Temperature [°C] | 40 |
| Insulation Class | F |
| Attachment 2 | AGILENT SS 40+ CONTROL UNIT |
| Part No. | 3705677 |
| Rated Voltage [VAC] | 200 to 240 |
| Power [VA] | 1200 |
| Frequency [Hz] | 50/60 |
