Airmec MT 1008 M AIR Compressor
Air Compressor

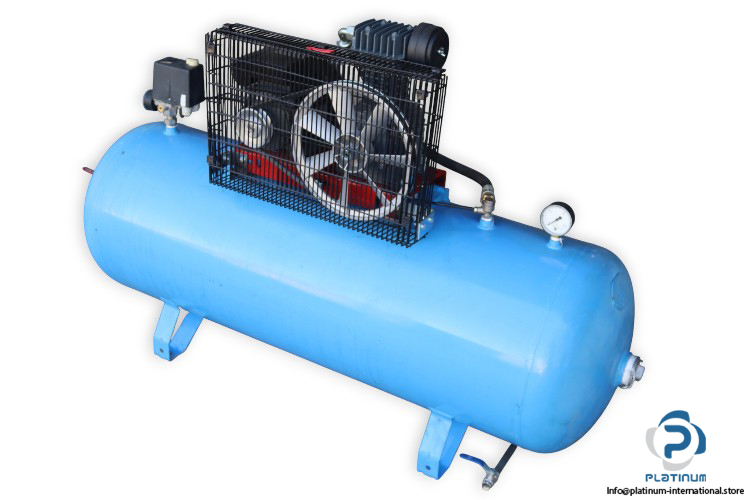

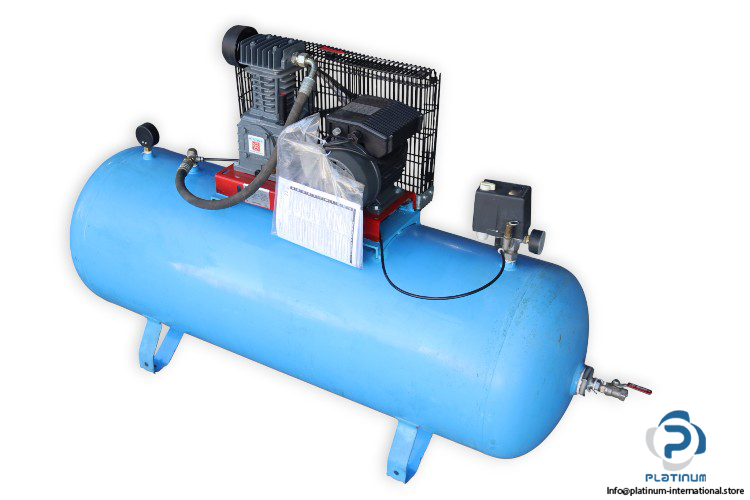

Airmec MT1008M single-stage air compressor with 200 L tank, 1 HP motor, and 10 bar operating pressure for industrial and workshop applications.Airmec MT1008M Air Compressor
A high-performance air compressor manufactured by Airmec, designed to deliver reliable compressed air for industrial, workshop, and automation applications. Featuring a single-stage pump, robust motor, and large-capacity air tank, this unit ensures stable pressure delivery, efficient airflow, and dependable continuous operation.

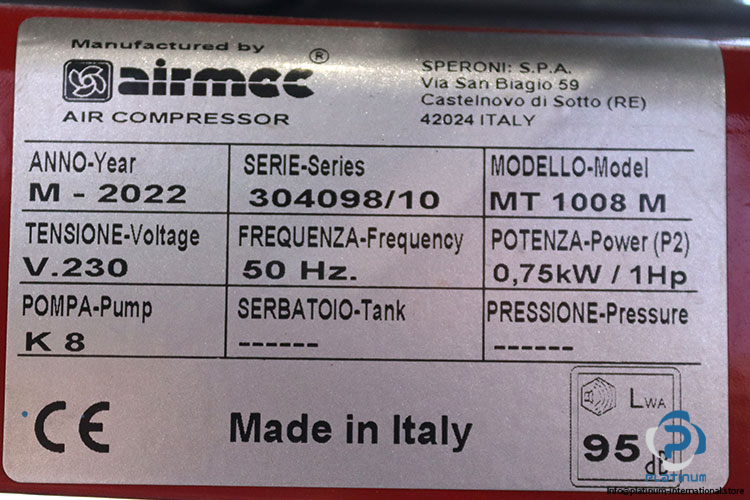

Manufacturer: Airmec
Type: Air Compressor
Model: MT1008M
Series: 304098/10
Motor Specifications
Attachments

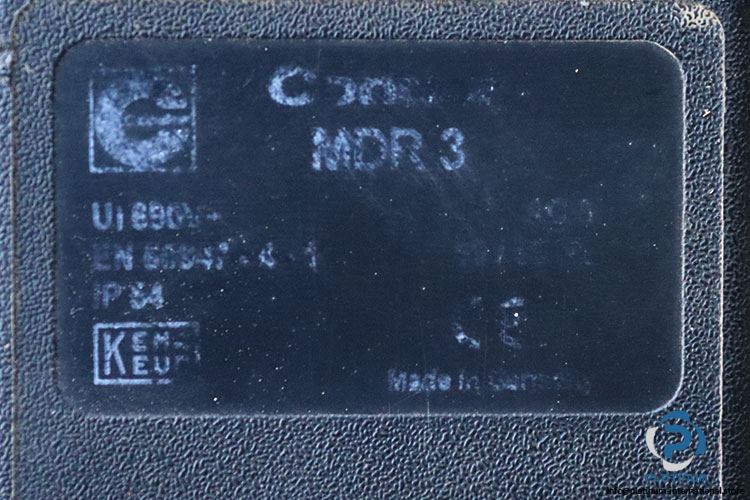

MDR3 Pressure Switch
SPERONI SM 80 Pressure Gauge
Application:
Compressed air supply for industrial automation, workshops, pneumatic tools, and air-operated equipment
Recommendation:
This Airmec air compressor is ideal for systems requiring stable air supply and high reliability. For optimal performance and extended service life, it is recommended to use this compressor together with high-quality Air Filters to maintain clean air output and reliable Sensors for pressure and system monitoring, all available from Platinum International.
| Rated Voltage | 230 V AC, 50 Hz |
| Volumetric Flow | 8.7 m³/h |
| Flow Rate | 145 l/min |
| Current | 5.5 A |
| Power | 0.75 kW / 1 HP |
| Rated Speed | 850 r/min |
| Stage Number | 1 |
| Operating Pressure | 10 bar |
| Pump Type | K8 |
| Dimensions | 550 x 350 x 400 mm |

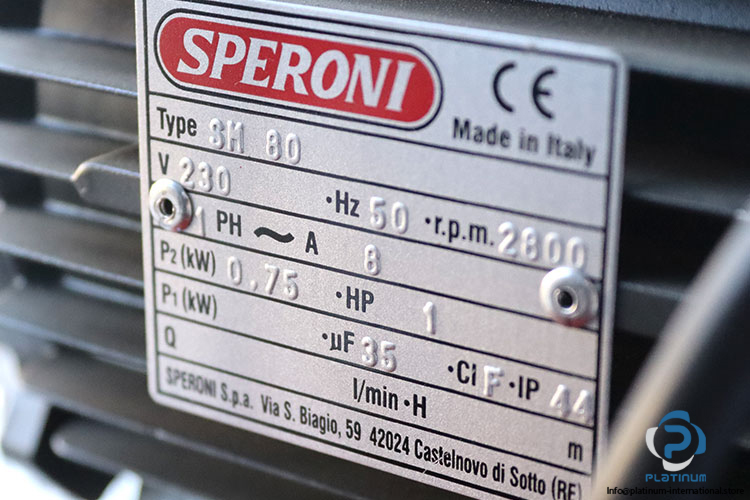

| Voltage | Single-phase 230 V AC, 50 Hz |
| Speed | 2800 rpm |
| Insulation Class | F |
| Protection Degree | IP44 |
| Current | 8 A |
| Power | 0.75 kW / 1 HP |

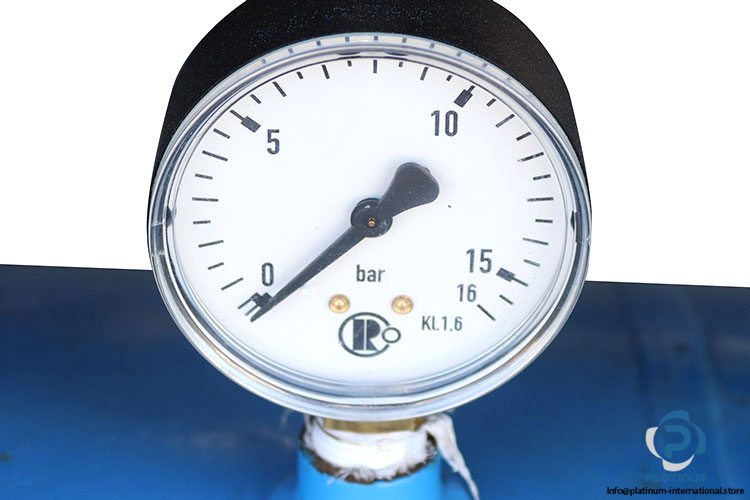

| RIEGLER KL1.6 Pressure Gauge Pressure Range | 0 to 16 bar |

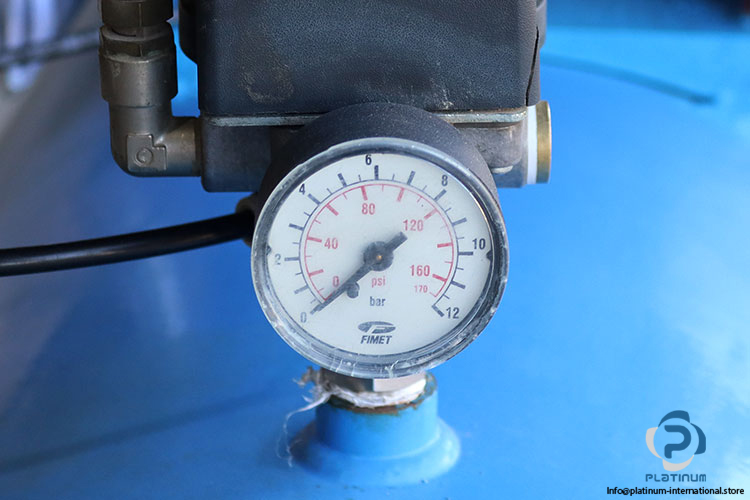

| FIMET Pressure Gauge Pressure Range | 0 to 12 bar |

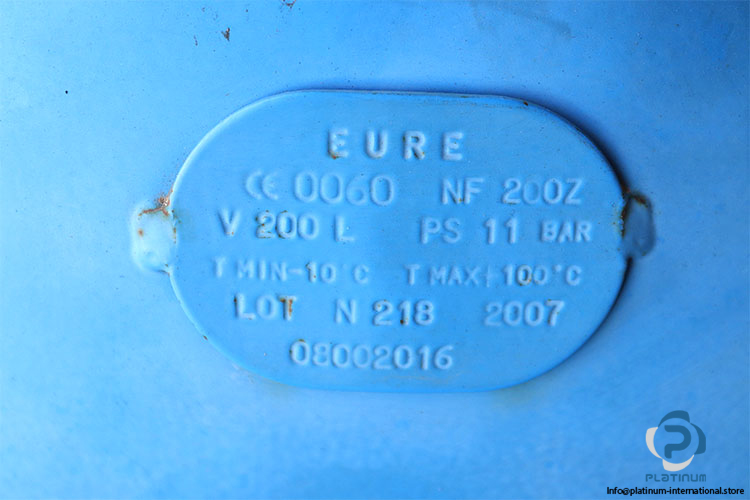

| EURE NF 200Z Compressor Tank Tank Capacity | 200 L |
| Max Working Pressure | 11 bar |
| Operating Temperature Range | -10 °C to +100 °C |
| Pressure Monitoring | Integrated Pressure Gauges |
| Control | Automatic Pressure Switch Control (Start / Stop) |
