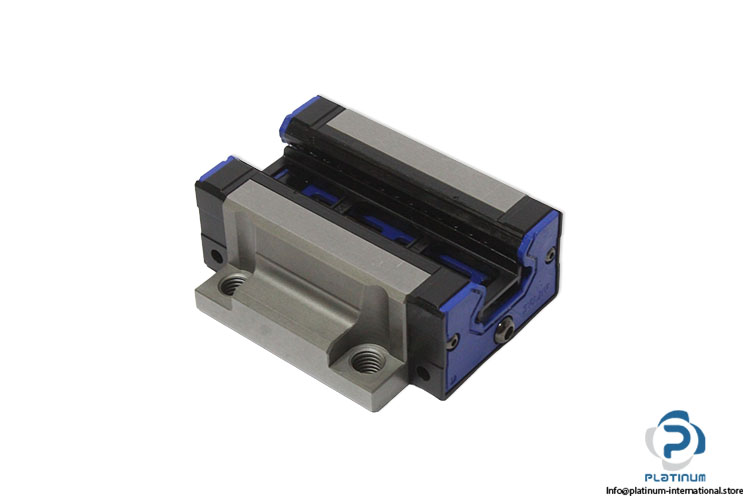

Airtac LSH30BK-F3N-N-C-M6 Linear Guideway Block
Neu
Auf Lager12 EinheitenVersandbereit
Self-Lubricator Standard Linear Guide The Airtac LSH30BK-F3N-N-C-M6 self-lubricating linear guide block offers precise linear motion, high load capacity, flange mounting, and reliable long-term performance for industrial automation and machine applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

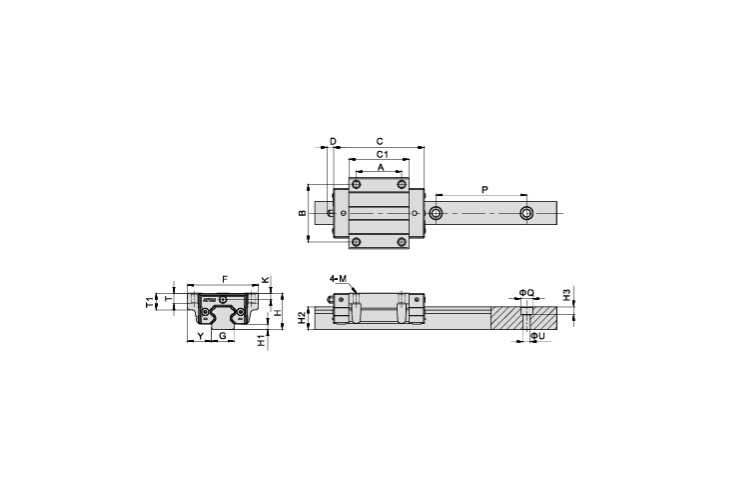

| Series | LSH |
| Size | 30 |
| Block Style | F3 Flange type, Mounting from top or bottom |
| Rail Width G | 28 mm |
| Total Height H | 42 mm |
| Block Width F | 90 mm |
| Block Length C | 95.5 mm |
| Distance between Bolt A | 52 mm |
| Bolt hole diameter | 14,2 mm |
| Mounting hole | M8 |
| Suffix | M6, Equipped with an M6 grease nipple |
| Accuracy Grade | C |
| Preload | Normal Clearance (N) |
| Basic Load Ratings | Dynamic C: 37.4 kN / Static C0: 55 kN |
| Allowable Static Moment | MRO: 0.66 kNm, Y axis MYO: 0.67 kNm, Z axis MPO: 0.67 kNm |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing |
| Condition | New |
| Stock Key | CH001 |
| SKU | 1098021 |
| Weight | 1,15 |
