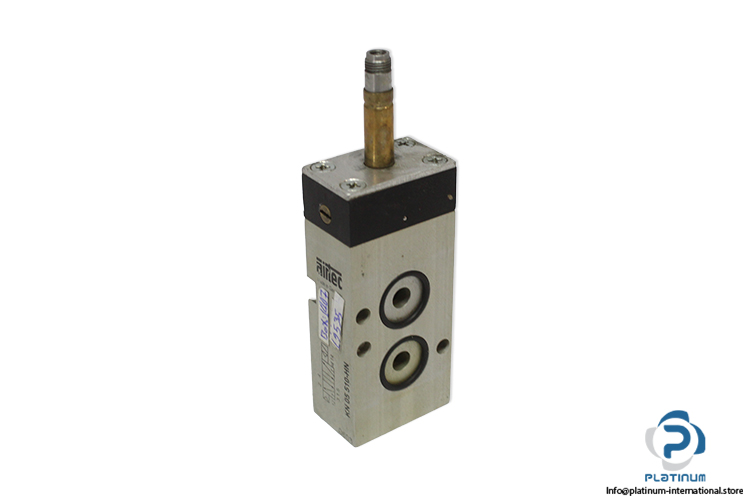

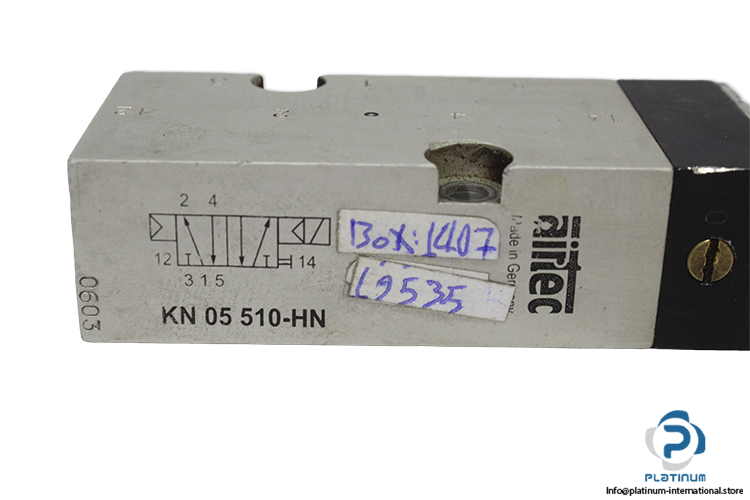

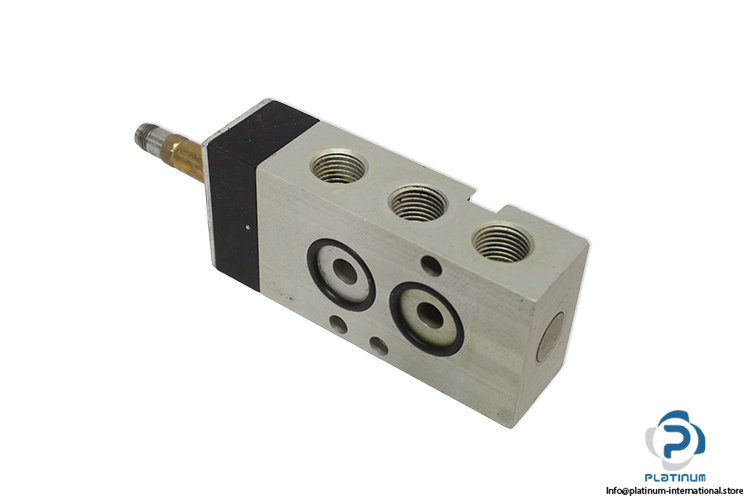

Airtec KN 05 510-HN Single Solenoid Valve Without Coil
Gebraucht
Auf Lager1 EinheitVersandbereit
Single Solenoid Valve The Airtec KN-05-510-HN is an electrically actuated 5/2 single solenoid valve with air spring return, designed for efficient pneumatic control, offering 10 bar pressure, 900 Nl/min flow rate, and IP65 protection.
5/2AirAirtecAluminumAutomationComponentsControlG1/4IndustrialIP65KN-05-510-HNPneumaticSinglesolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Code | 0603 |
| Series | KN-05 |
| Type of Actuation | Electrically |
| Function | 5/2, , single solenoid with air spring return. |
| Max Operating Pressure | 10 bar |
| Fluid | Filtered, oil-free, and dried compressed air |
| Nominal Size | 6 mm |
| Flow Rate | 900 Nl/min |
| Body Material | Aluminum (anodized), plastic |
| Seals | NBR |
| Inner Parts | Aluminum, steel, and plastic |
| Protection | IP 65 |
| Ambient Temperature | -10°C to +70°C |
| Port Size | G1/4 |
| Condition | Used |
| SKU | 1096786 |
| Weight | 0,24 |
