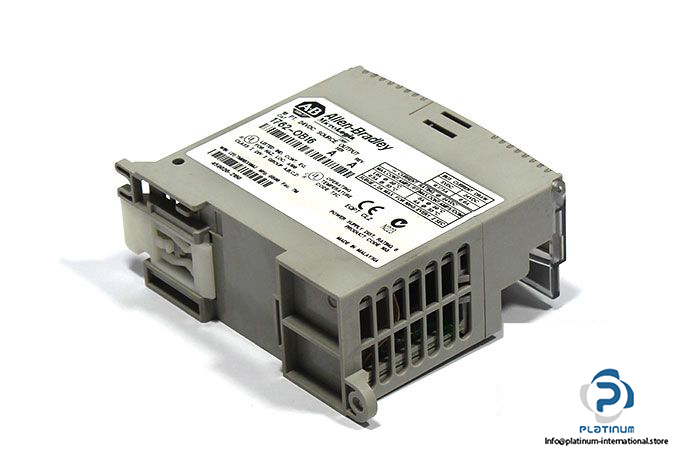

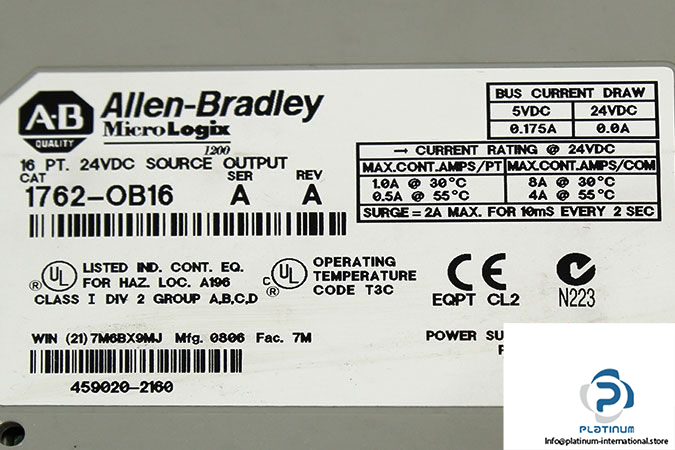

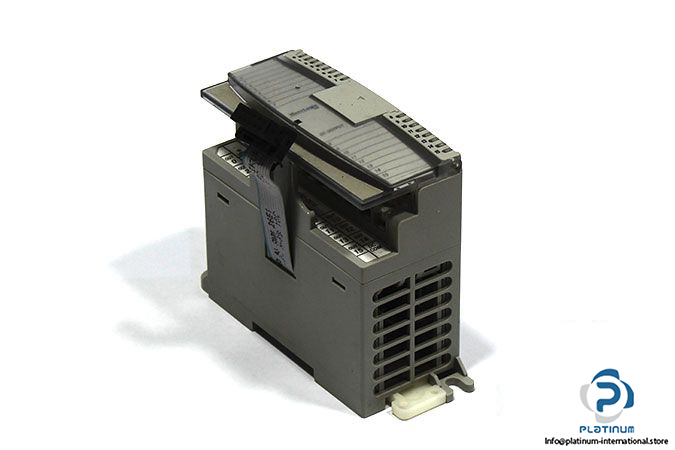

Allen-Bradley 1762-OB16 Digital Output Module

Manufacturer: Allen-Bradley

Type: Digital Output Module

Model: 1762-OB16

Voltage Category: 24 VDC

Operating Voltage Range: 20.4 … 26.4 VDC

No. of Outputs: 16

No. of Commons: 1

Bus Current Draw, Max: 175 mA at 5V DC (0.88 W)

Heat Dissipation, Max: 2.9 Total watts @ 30 °C, 2.1 Total watts at 55 °C

Off-State Leakage, Max: 1 mA

On-State Current, Min: 1 mA

On-state Voltage Drop, max: 1 VDC

Dimensions: 40 X 86.5 X 90 mm

Weight: 0.18 kg
