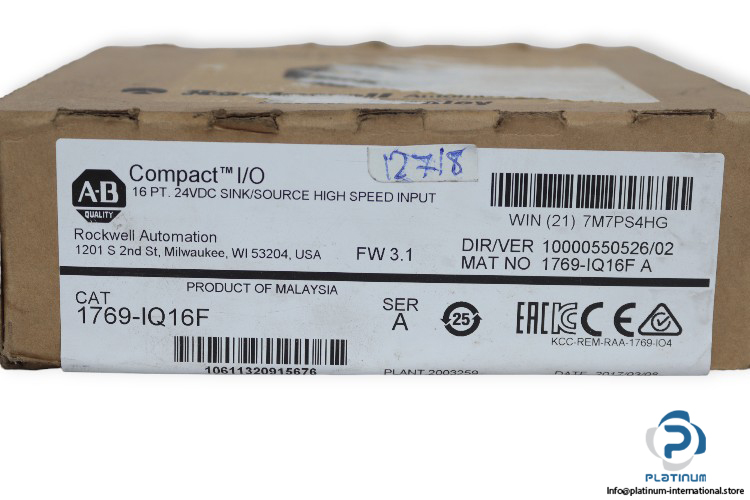

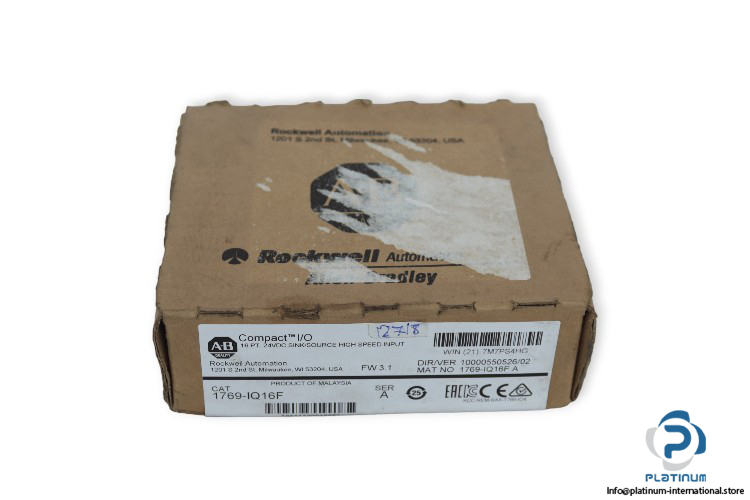

Allen Bradley 1769-IQ16F Digital Input Module
Hersteller: Allen Bradley Typ: Digitales Eingangsmodul / Hochgeschwindigkeits-Eingangsmodul Modell: 1769IQ16F Artikelnummer: 10000550526/02 Serie: A
Manufacture: Allen Bradley
Type: Digital Input Module / High-speed input module
Model: 1769IQ16F
Part No: 10000550526/02
Series: A
Voltage Category: 24 V DC
Operating Voltage Range: 10 … 30 V DC@30°C,10 … 26.4 V DC@60°C
No. of Digital Input (DI): 16
Digital filter, off to on: 0 s, 100 ms, 500 ms, 1 ms, 2 ms
Digital filter, on to off: 0 s, 100 ms, 500 ms, 1 ms, 2 ms
Input delay, off to on: 100 ms, typical / 300 ms, max
Input delay, on to off: 250 ms, typical / 1 ms, max
Current draw @ 5.1V: 110 mA
Heat dissipation, max: 3.55 W
Off-state voltage, max: 5 V DC
Off-state current, max: 1.5 mA
On-state voltage, min: 10 V DC
On-state current, min: 2 mA
Inrush current, max: 250 mA
Input impedance, nom: 3 kW
Slot width: 1
Operating Temperature: 0 … 60 °C
Dimensions: 118 X 35 X 87 mm
