Allen-Bradley 22B-D010N104 Powerflex
199,99$
Powerflex-Antrieb Der Allen-Bradley 22B-D010N104 Powerflex arbeitet mit 380 bis 480V AC-Spannung und 48 bis 63 Hz Frequenz. Ideal für 3-Phasen AC-Motoren mit einer Ausgangsleistung von 4,0 kW und 10,5 Ampere Strom, bietet IP20-Schutz und ist für Umgebungstemperaturen von -10°C bis 50°C geeignet.
Allen-Bradley 22B-D010N104 Powerflex

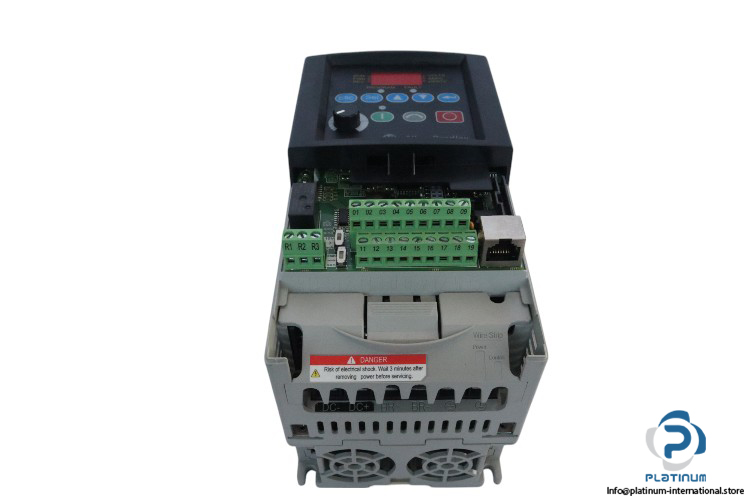

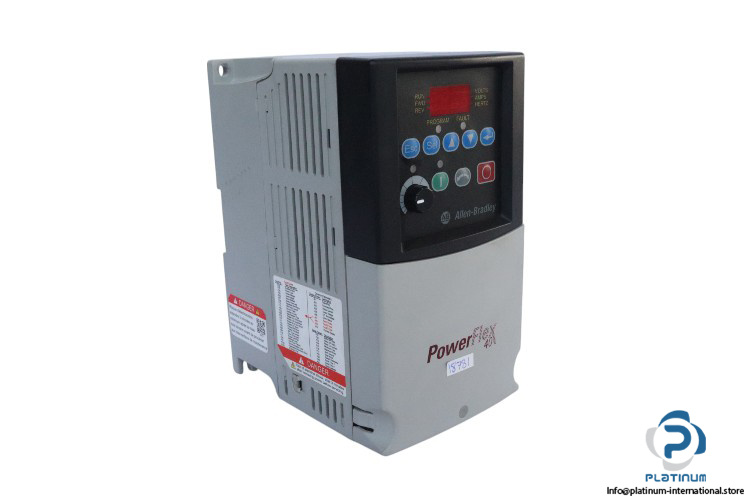

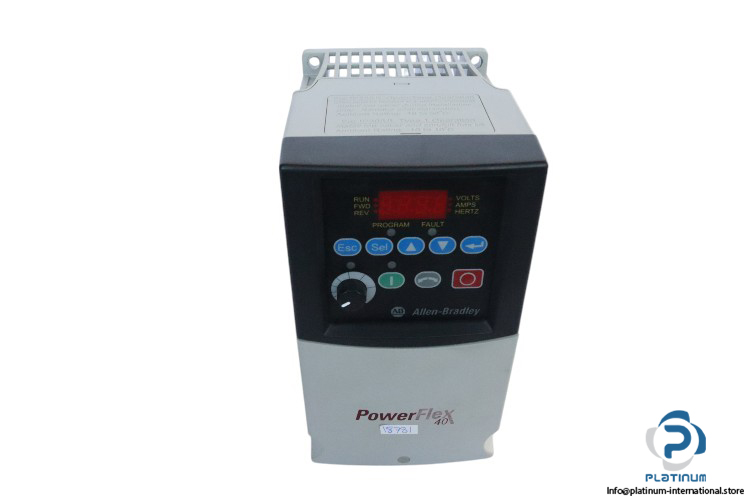

The Allen-Bradley 22B-D010N104 Powerflex drive is a high-performance variable frequency drive ideal for controlling 3-phase AC motors in industrial applications. With a voltage range of 380 to 480V AC and a frequency range of 48 to 63 Hz, it delivers reliable performance and optimal control. The drive provides an output rating of 4.0 kW (5.0 kW max) and a current rating of 10.5 Amps, while the input power rating is 10.3 kVA with a current of 13.0 Amps. The drive is designed to operate within an ambient temperature range of -10°C to 50°C and features an IP20 degree of protection, ensuring safe and stable operation in various environments.
Manufacturer: Allen-Bradley
Type: Powerflex Series A

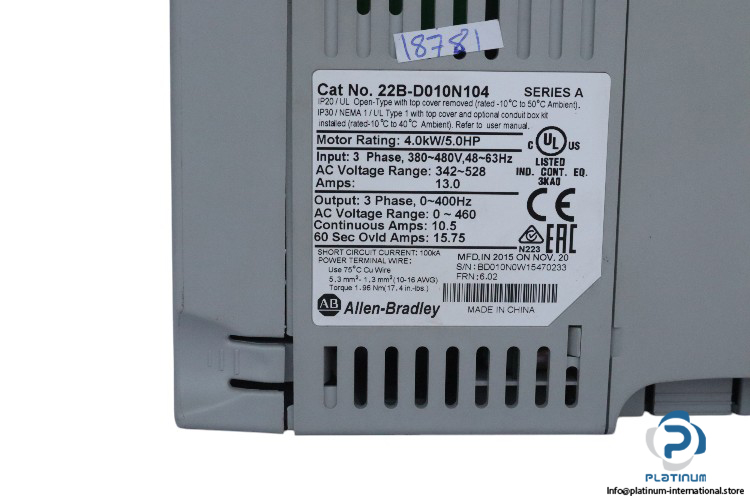

Model: 22B-D010N104
The Powerflex 22B-D010N104 drive is a reliable solution for precise motor control in industrial settings, offering energy-efficient operation and high-speed performance in demanding environments.
| Voltage | 380...480V AC |
| Frequency | 48 to 63 Hz |
| Number of Phases | 3 AC |
| Output Rating Power/Current | 4.0 (5.0) kW / 10.5 Amps |
| Input Rating Power/Current | 10.3 kVA / 13.0 Amps |
| Degree of Protection | IP20 |
| Ambient Temperature | -10 to 50°C |
