Allen Bradley 440K-B04026 Safety Interlock Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
155,55$
Safety Interlock Switch
The Allen-Bradley 440K-B04026 is a metal-housed safety interlock switch with a tongue actuator and IP65 protection. It offers 1NO + 2NC contacts, rated up to 500 V, ensuring secure guard door monitoring in industrial applications.440K-B04026ActuatorAllen-BradleyAutomationDoorGuardGuardingHousingIndustrialInterlockIP65LHM20MachineMetalSafetySwitchTDBS-3Tongue
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

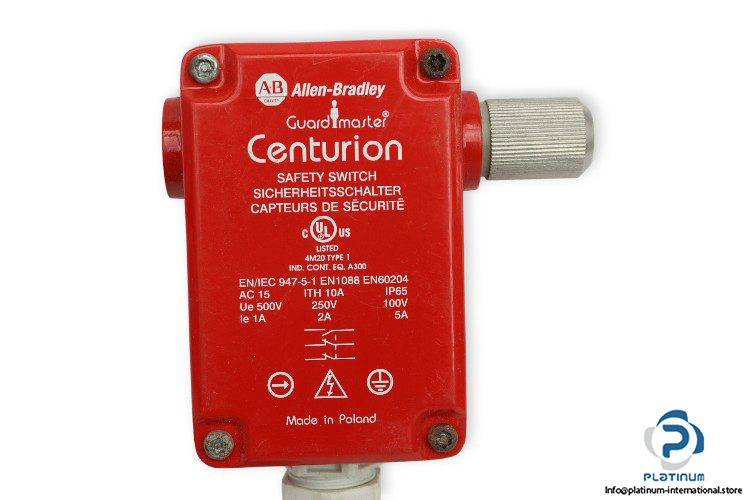

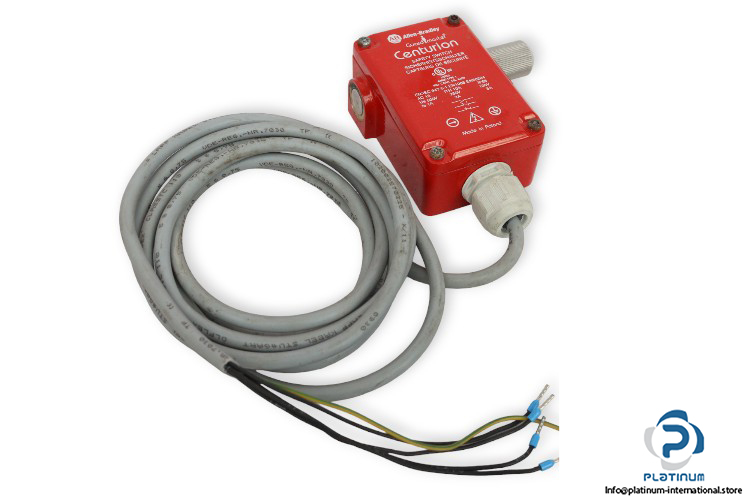

Allen-Bradley 440K-B04026 Safety Interlock Switch
The Allen-Bradley 440K-B04026 Safety Interlock Switch is a robust and reliable safety device designed for guarding applications in industrial environments. Featuring a durable metal housing and tongue actuator, it ensures safe machine operation by preventing access when safety conditions are not met. Its compact design, IP65 protection, and multiple contact configurations make it suitable for use in a wide range of machinery and automation systems.
Manufacturer: Allen-Bradley
Type: Safety Interlock Switch

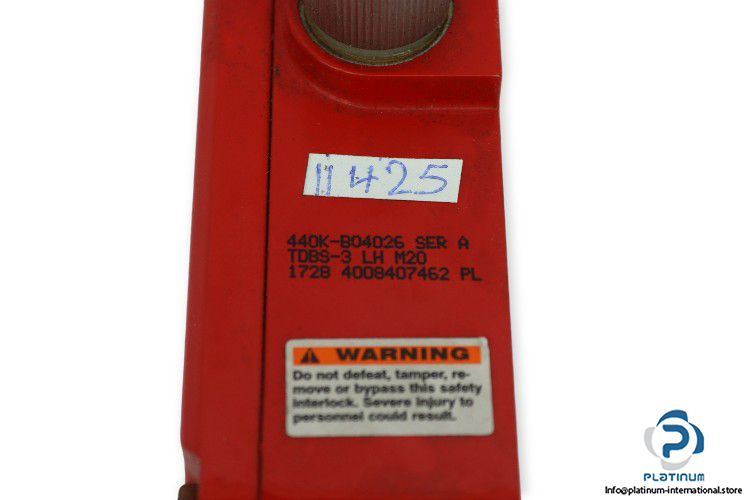

Model: 440K-B04026
Alternative Model: TDBS-3 LH M20
Part No.: 1728 4008407462 PL
| Series | A |
| Insulation Voltage | 500 / 250 / 100 V AC DC |
| Rated Current | 1 / 2 / 5 A |
| Rated Thermal Current | 10 A |
| Contact Configuration | 1 Normally Open (NO) + 2 Normally Closed (NC) |
| Actuator Type | Tongue Actuator Included |
| Housing Material | Metal |
| Protection Class | IP65 |
| Ambient Operating Temperature | -20 / 60 °C |
| Dimensions | 98 × 40.5 × 64 mm |
