Almatec E10TTZ Diaphragm Pump
Neu
Auf Lager1 EinheitVersandbereit

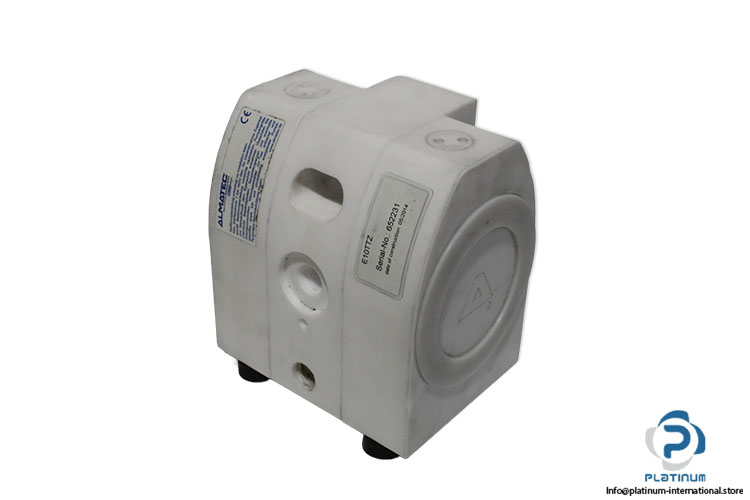

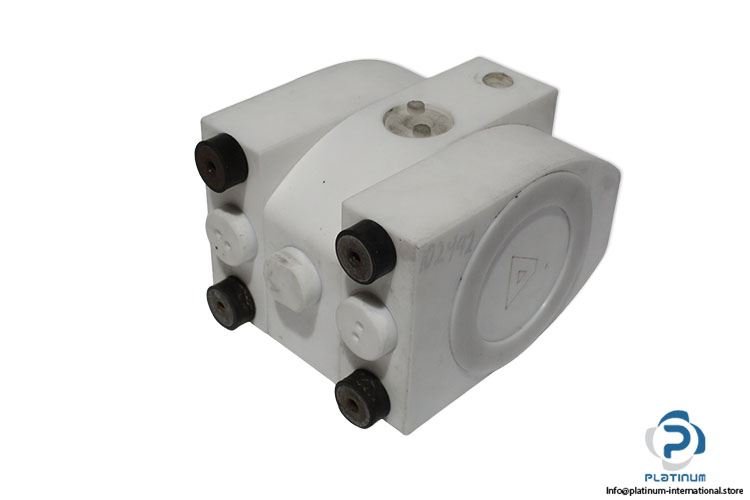

Diaphragm Pump ALMATEC E10TTZ diaphragm pump with conductive PTFE housing, PTFE/EPDM diaphragms, and PTFE ball valves, designed for reliable industrial fluid handling.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

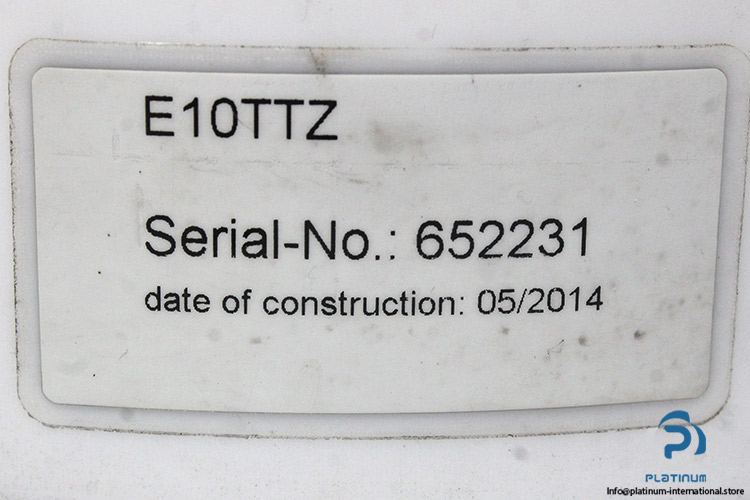

| Serial-No . | 652231 |
| Series | E |
| Size | 10 |
| Housing | PTFE Conductive (ATEX) |
| Diaphragms | PTFE/EPDM |
| Ball Valves | PTFE |
| Dimensions, mm | 110 x 147 x 169 |
| Nominal port size | 3/8" |
| Air connection | R 1/8 |
| Max. particle size of solids for pumps with ball valves mm (in.) | 3 (0.12) |
| Suction Lift Dry, mWC (ft) | 9 (29.5) |
| Max. driving and operating pressure bar (psig) | 7 (100) |
| Max. operating temperature, °C (F) | 100 (212) |
| Max Capacities | 1.4 m³/h,23 l/min,6 gpm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100560 |
| Weight | 5,1 |
