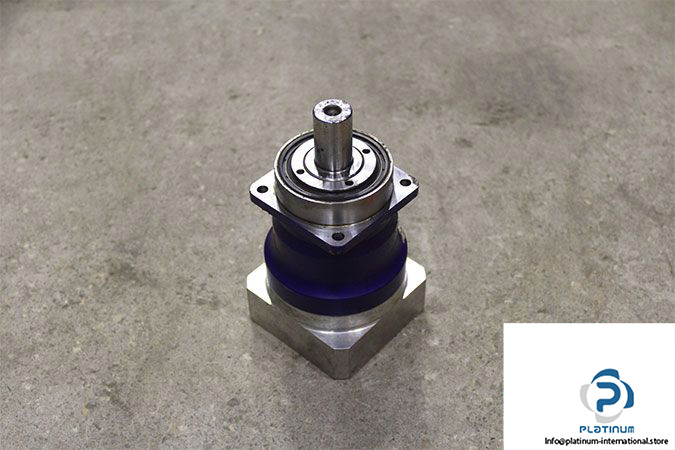

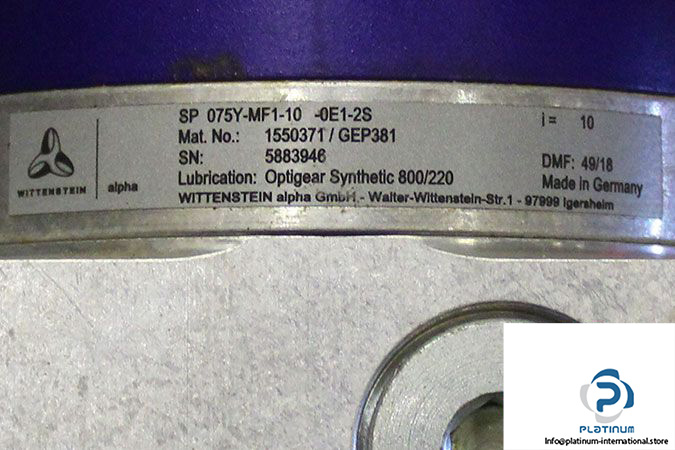

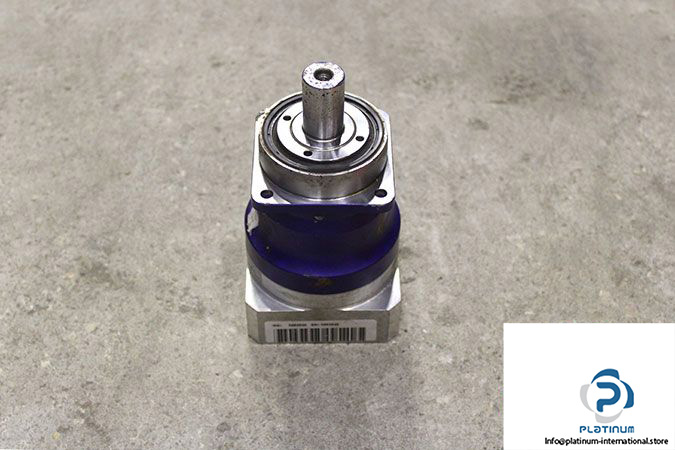

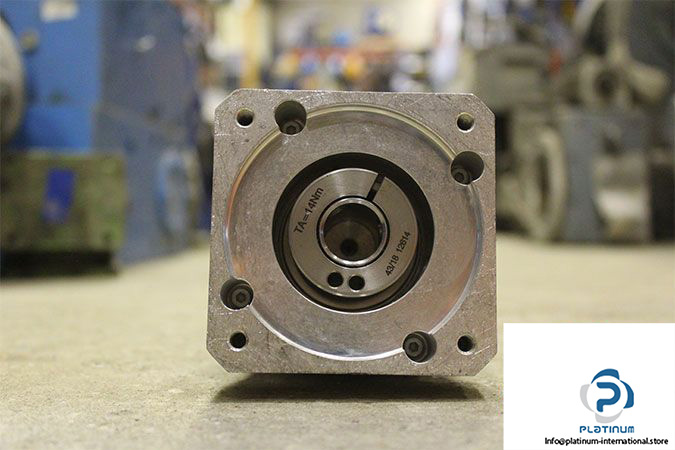

Alpha SP 075Y-MF1-10-0E1-2S Planetary Gearbox

Manufacturer: Alpha

Type: Planetary Gearbox

Model: SP 075Y-MF1-10-0E1-2S

Ratio: 10

Size: 75

Stages: 1-Stage

Max. Torque: 152 Nm

Nominal Torque: 81 Nm

Permitted Average Input Speed: 3100 rpm

Max. Input Speed: 7500 rpm

Max. Axial Force: 3350 N

Max. Lateral Force: 2400 N

Ambient Temperature: -15…40 C°

Efficiency at Full Load: 97 %

Protection class: IP65

Shaft [mm]: 22

Hollow Shaft [mm]: 19

Flange Diameter [mm]: 90

Lubrication: Optigear Synthetic 800/220
