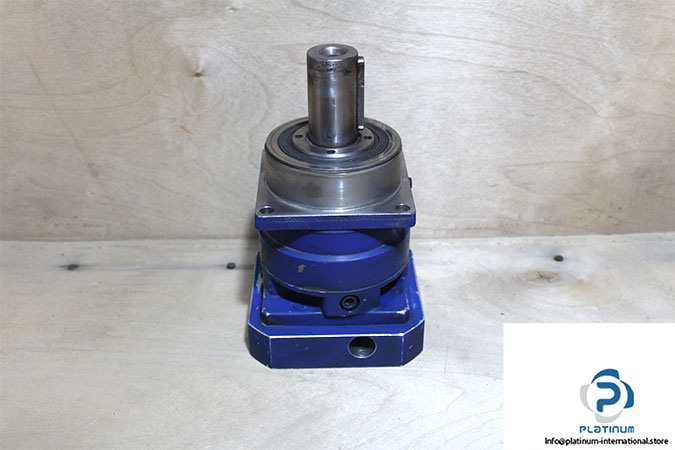

Alpha SP 100-MC1-5-151-000 Planetary Gearbox

Manufacturer: Alpha

Type: Planetary Gear Box

Model: SP100-MC1-5-151-000

Article Code: 20013905

Ratio [i]: 5

Max./Nominal Torque [Nm]: 240/91

Max. Backlash [arcmin]: Standard ≤ 4/Reduced ≤ 2

Number of Stage: 1

Shaft [mm]: 32

Hollow Shaft [mm]: 19

Flange Diameter [mm]: 120

Ambient Temperature [°C]: -15…40

Lubrication: Lubricated for Life

Protection Class [IP]: 65
