Alpha SP 140S-MF2-35-0K1-2S Planetary Gearbox
Gebraucht
Auf Lager2 EinheitenVersandbereit
799,99$
Planetary Gear Box
The Alpha SP140S-MF2-35-0K1-2S planetary gearbox delivers high torque capacity, low backlash, and maintenance-free operation. With a 35:1 ratio and IP65 protection, it ensures reliable performance for servo and automation applications.AlphaAutomationBacklashBoxControlDriveEquipmentGearGearboxHighIndustrialIP65lowMotionPlanetaryPrecisionServoSP140S-MF2-35-0K1-2STorqueUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

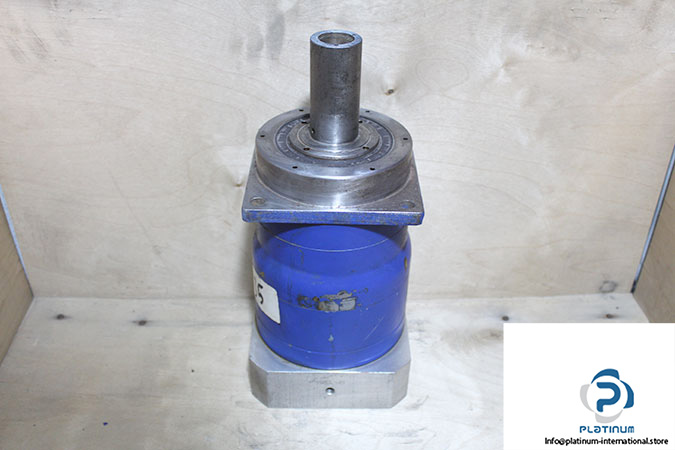

Alpha SP140S-MF2-35-0K1-2S Planetary Gear Box
The Alpha SP140S-MF2-35-0K1-2S Planetary Gear Box is a high-precision, durable, and compact gear unit designed for demanding industrial motion control applications. It provides exceptional torque transmission, minimal backlash, and long service life. The gearbox is ideal for servo systems, automation machinery, and robotic applications requiring accurate positioning and high efficiency.
Manufacturer: Alpha
Type: Planetary Gear Box

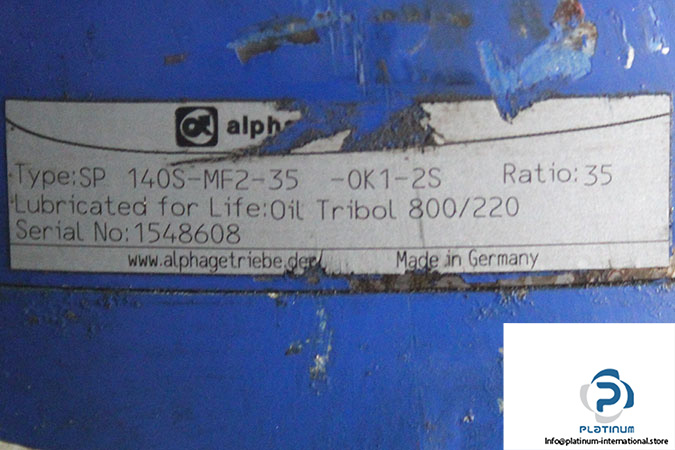

Model: SP140S-MF2-35-0K1-2S
| Ratio [i] | 35 |
| Max./Nominal Torque [Nm] | 670/536 |
| Max. Backlash [arcmin] | Standard ‰¤ 5 / Reduced ‰¤ 3 |
| Number of Stage | 2 |
| Shaft [mm] | 40 |
| Hollow Shaft [mm] | 32 |
| Flange Diameter [mm] | 150 |
| Ambient Temperature [°C] | -15 / 40 |
| Lubrication | Lubricated for Life |
| Protection Class [IP] | 65 |
