Antek DC90/REG50/2-02 Gear Motor
Neu
Auf Lager2 EinheitenVersandbereit
DC Gear Motor
Antek DC90/REG50/2-02 DC Gear Motor operates at 3000 rpm with an 80 VDC rated voltage, featuring a 26.52 planetary gear ratio and 80 Nm max torque, ideal for various industrial applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

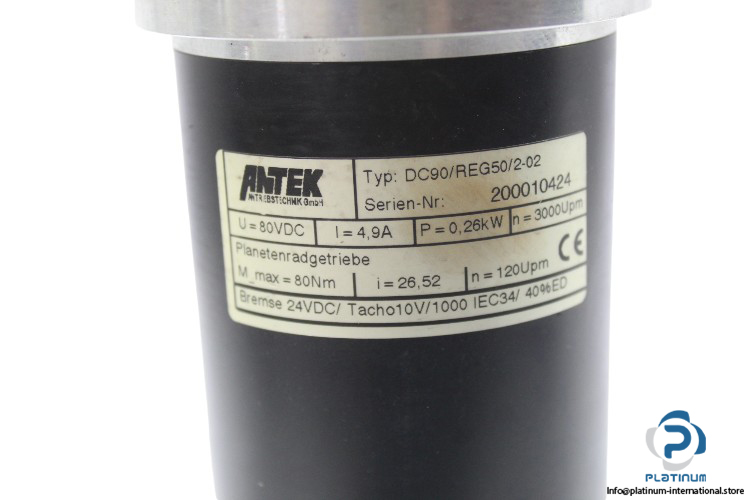

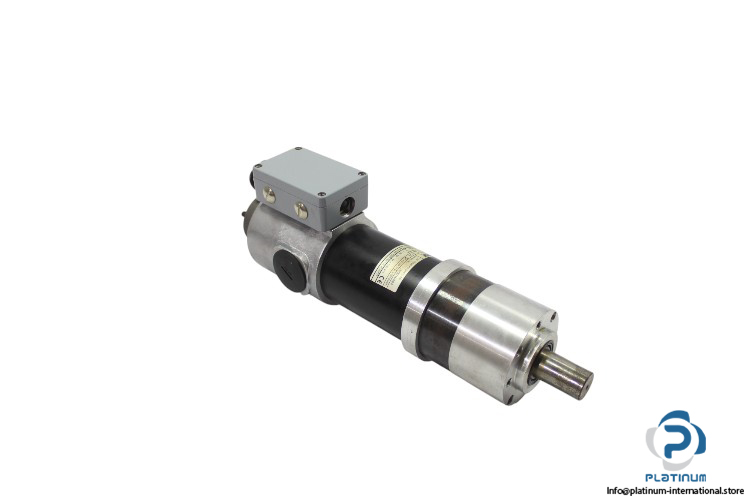

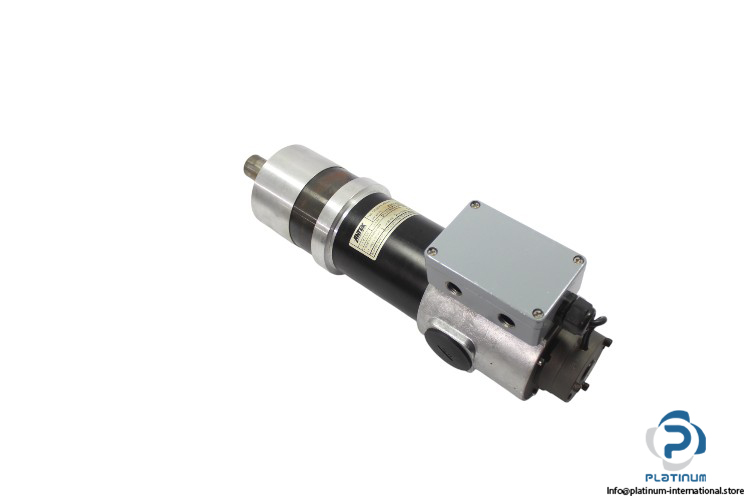

Antek DC90/REG50/2-02 DC Gear Motor
The Antek DC Gear Motor DC90/REG50/2-02 provides efficient and reliable performance with a 3000 rpm speed and 80 VDC voltage. Its planetary gear design with a ratio of 26.52 offers high torque and is suitable for a wide range of industrial applications.
Manufacturer: Antek
Type: DC Gear Motor
Model: DC90/REG50/2-02
| Speed | 3000 rpm |
| Rated Current | 4.9 A |
| Rated Voltage | 80 VDC |
| Rated Power | 0.26 kW |
| Protection Class | IP44 |
| Planetary Gear Ratio | 26.52 |
| Gear Speed | 120 rpm |
| Max. Torque | 80 Nm |
| Brake Voltage | 24 V DC |
