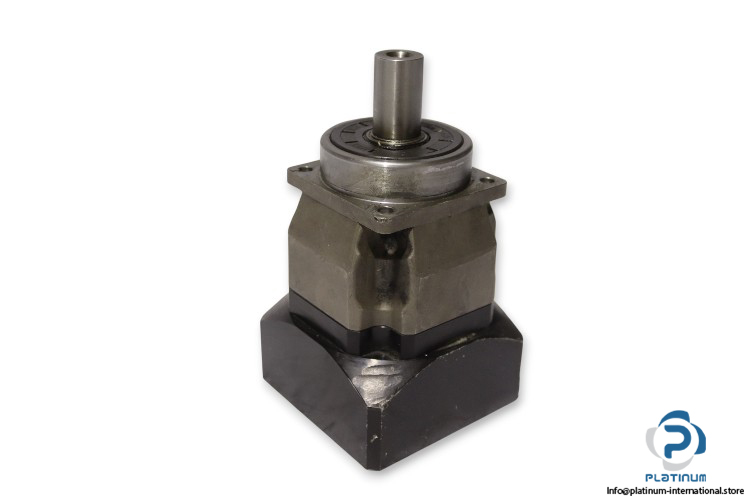

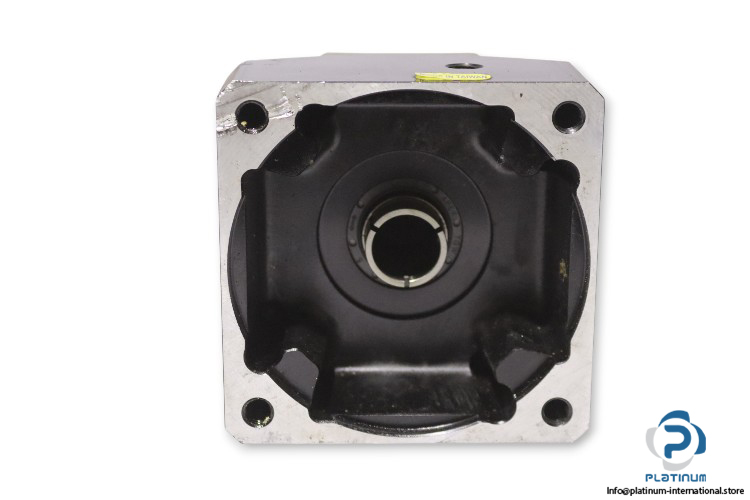

Apex AF075-S1-P2 Planetary Gearbox
444,44$
Precision Planetary Gearbox
High-precision gearbox with 7:1 ratio, 140 Nm torque, 22 mm shaft, and IP67 protection. Ideal for servo systems, robotics, and industrial automation requiring accuracy and durability.Apex Dynamics AF075-S1-P2 Precision Planetary Gearbox
The Apex Dynamics AF075-S1-P2 is a high-performance precision planetary gearbox designed for superior accuracy, durability, and efficiency. Engineered for demanding automation and motion control applications, it ensures reliable torque transmission, smooth operation, and long service life. This model delivers excellent performance with minimal backlash, making it ideal for servo systems, robotics, and industrial machinery where precision and stability are critical.

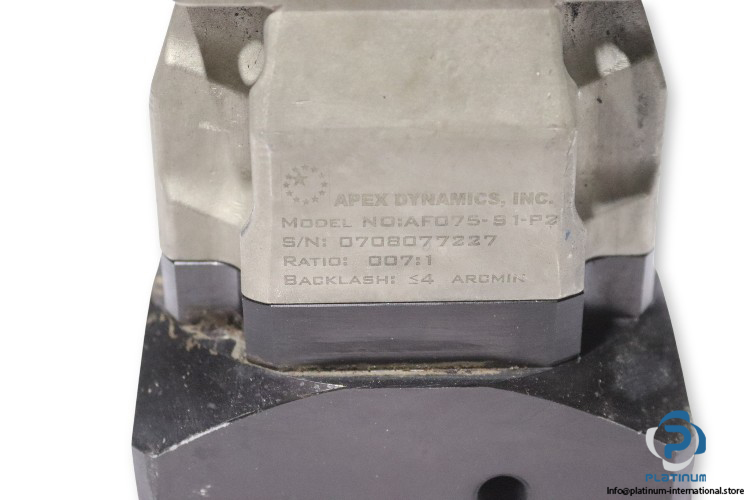

Manufacturer: Apex Dynamics
Type: Precision Planetary Gearbox
Model: AF075-S1-P2
Serial No.: 0708077227
Series: AF
This gearbox combines strength and precision in a compact design. With its IP67 protection, it is resistant to dust and moisture, ensuring long-term performance even in harsh environments. The AF075-S1-P2 guarantees high torsional stiffness, smooth torque transfer, and quiet operation ” the perfect choice for automation engineers looking for a reliable and efficient drive solution.
| Ratio [i] | 7:1 |
| No. of Stage | 1 |
| Shaft | 22 mm |
| Hollow Shaft | 18 mm |
| Flange Diameter | 100 mm |
| Shaft Option | S1: Smooth Output Shaft |
| Backlash | P2: Standard Backlash (‰¤ 4 arcmin) |
| Nominal Output Torque T2N | 140 Nm |
| Emergency Stop Torque | 3XT2n (420 Nm) |
| Nominal Input Speed | 4000 rpm |
| Max. Input Speed | 8000 rpm |
| Max. Axial Force | 3700 N |
| Max. Radial Force | 4100 N |
| Operating Temperature | -10 to 90 °C |
| Lubrication | Lubricant |
| Mounting Position | All Directions |
| Protection Class | IP67 |
