Asiaon 90.20 Relay Socket
Gebraucht
Auf Lager1 EinheitVersandbereit
Relay Socket
Asiaon 90.20 “ 10A relay socket with 2NO+2NC contacts, IP20 protection, and 2000V dielectric strength for industrial applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

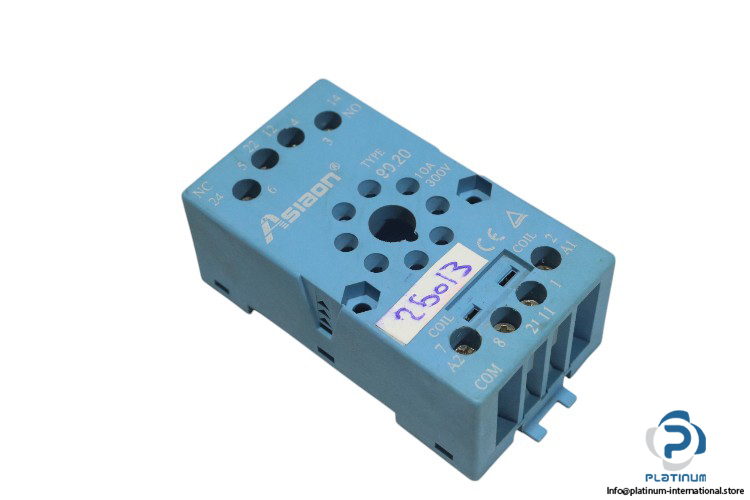

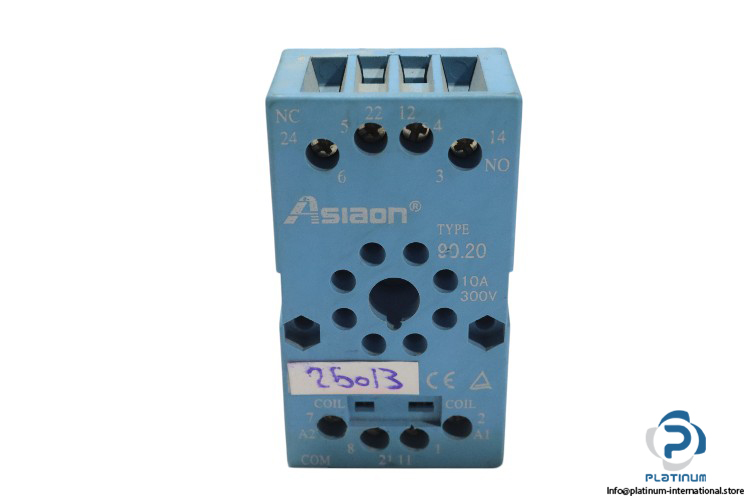

Asiaon 90.20 Relay Socket
The Asiaon 90.20 is a robust relay socket engineered for reliable and safe electrical connections in control and automation systems. It supports a rated load of 10A at 300VAC and features 2NO+2NC contacts. The socket includes terminal protection to IP20 and high dielectric strength to ensure electrical safety and performance. Suitable for wire sizes from AWG 20 to 14 (0.5“2.5 mm²), it is a practical choice for industrial panel applications.
- Manufacturer: Asiaon
- Type: Relay Socket
- Model: 90.20
Technical Specifications:
- Rated Load: 10A / 300VAC
- Contact: 2NO + 2NC
- Screw Torque: 0.8 Nm
- Terminal Protection Degree: IP20
- Dielectric Strength (Coil/Contact): 2000 V/S
- Dielectric Strength (Between Contacts): 2000 V/S
- External Connection Wire: AWG 20“14 / 0.5“2.5 mm²
Applications:
- Industrial control panels
- Automation systems
- Relay-based switching circuits
- Electrical panel assemblies
