Atlas 9032011951-0001 Digital Motion Controller

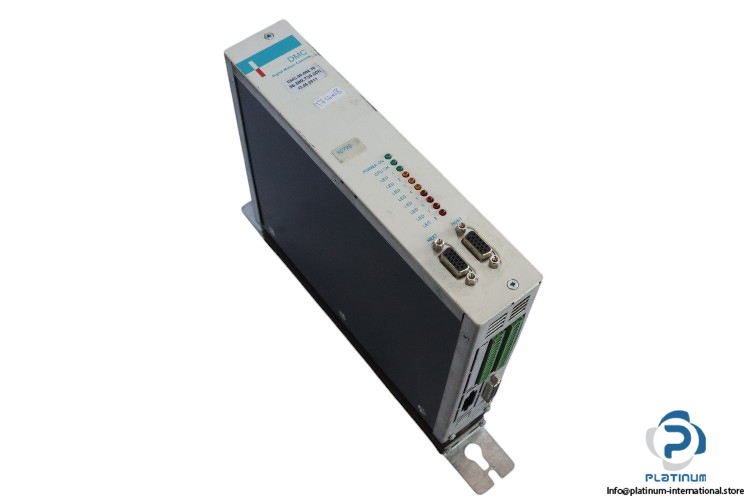

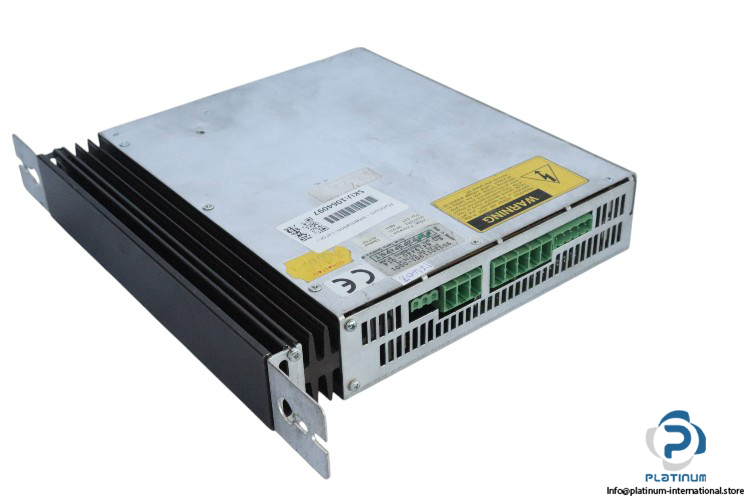

Atlas Copco Digital Motion Controller DMC 50720-AC

Atlas Copco Digital Motion Controller DMC 50720-AC is a high-performance digital controller designed for efficient motor control in various industrial applications. Offering precise speed control, high current capability, and energy efficiency, it is ideal for demanding environments.

• Manufacturer: Atlas Copco
• Type: Digital Motion Controller (DMC)
• Model: DMC 50720-AC

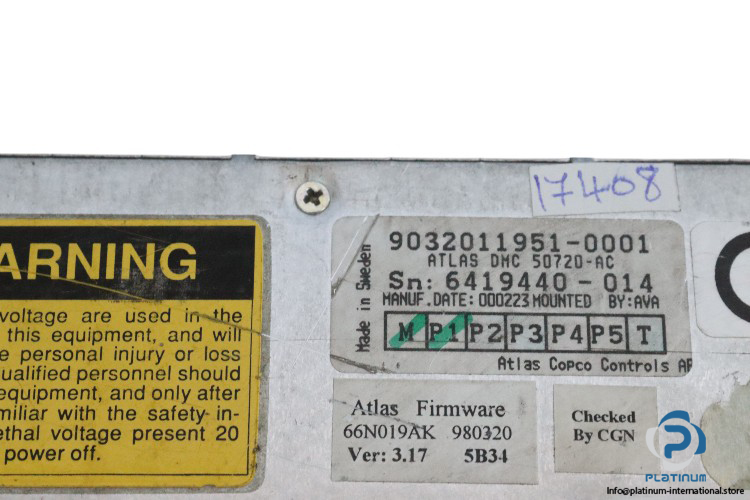

• Part No. 1: 9032 0119 51-0001

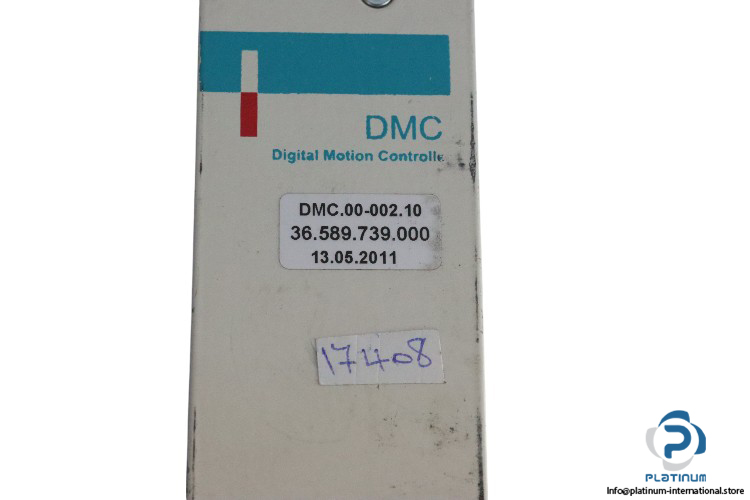

• Part No. 2: DMC.00-002.10
• Part No. 3: 36.589.739.000

Technical Data:

• Input Voltage: 570 V DC
• Shunt Regulation On: 670 to 700 V DC
• Shut Down DC Bus Voltage: 700 to 725 V DC
• Continuous Current (A DC): 7 A at 40°C
• Continuous Current (Arms): 4.5 A at 40°C
• Peak Current: 20 A
• Continuous Output Power: 3 kW at 40°C
• Power Loss: 60 W
• Min Motor Inductance: 8 mH
• Speed Range: 1 to 9000
• Switching Frequency: 4 kHz
• Ambient Temperature: 0 to 60°C
• Protection Degree: IP 20
• Dimensions: 227 x 46 x 234 mm
