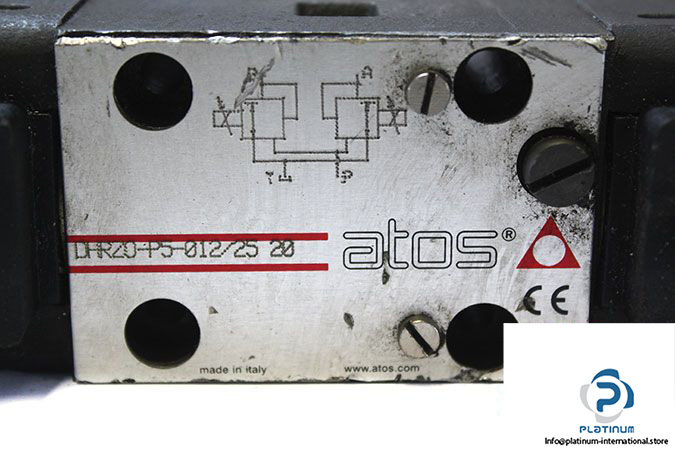

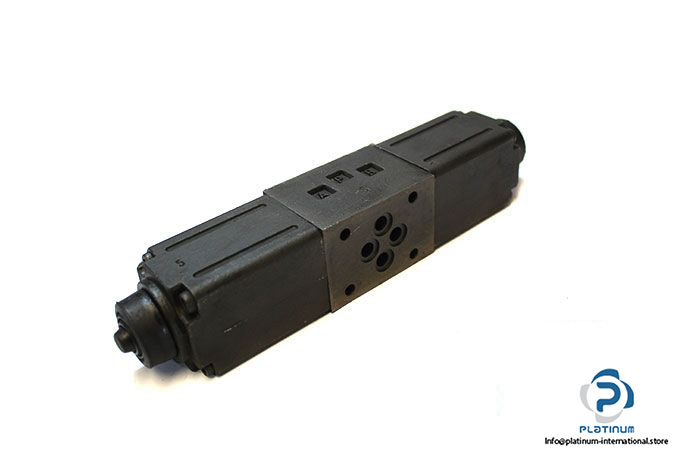

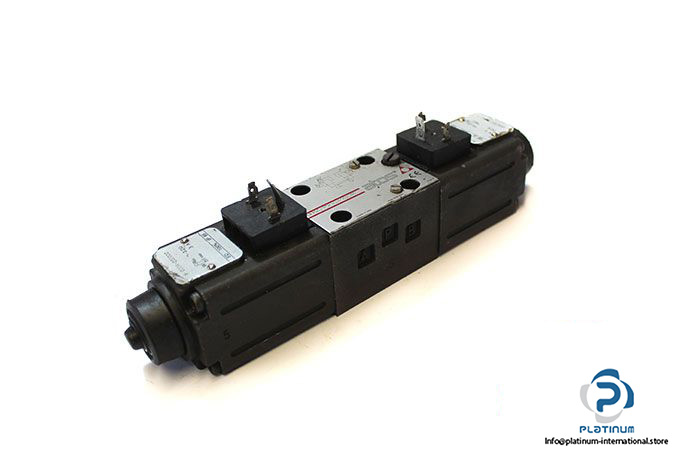

Atos DHRZO-P5-012/25 20 Proportional Reducing Valve

Manufacturer: ATOS

Type: Proportional Reducing Valve

Model: DHRZO-P5-012/25 20

Size: 06

Ambient Temperature Range: –20 …. +70 ^oC

Maximum Operating Pressure Port P:350 bar

Maximum Operating Pressure Port T: 210 bar

Maximum Flow Rate: 24 l/min

Hydraulic Fluid Temperature Range: –20 …. +60 ^oC

Viscosity Range: 15 … 100 mm²/s

Max. Power: 40 W

Connection: Sup-plate

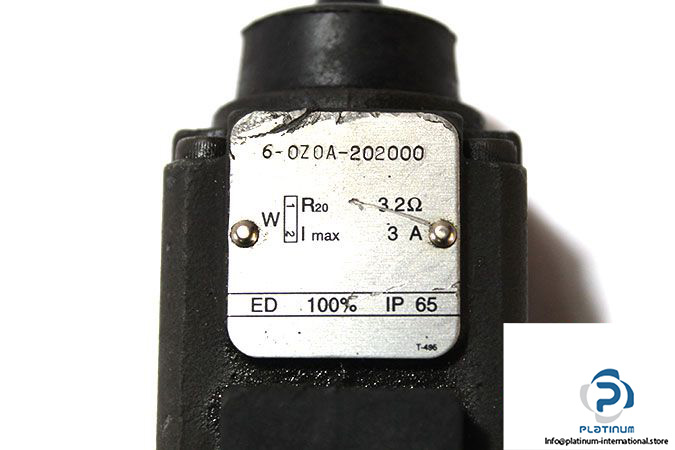

Attachment:  ATOS 6-OZOA-202000 SOLENOID COIL

Manufacturer: ATOS

Type: Solenoid Coil

Model:  6-OZOA-202000

Coil Resistance R at 20^oC : 3.2 Ω

Current:  3 A

Weight: 2.60 kg
