Atos E-ME-AC-05F/RR-4 Analog Electronic Drive
744,44$
Analoger elektronischer Antrieb Der ATOS E-ME-AC-05F/RR-4 bietet präzise Steuerung für Proportionalventile ohne Transducer. Mit einer 24 VDC-Versorgung, 50 W Leistung und 3,3 A Solenoidausgang bietet er einstellbare Rampeneinstellungen und hohe Stabilität für industrielle Automatisierungs- und Hydrauliksysteme.

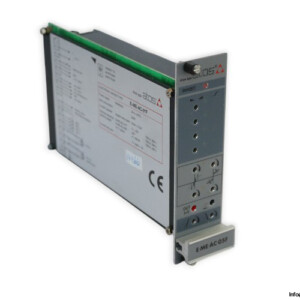

ATOS E-ME-AC-05F/RR-4 Analog Electronic Drive
The ATOS E-ME-AC-05F/RR-4 is an advanced analog electronic drive in Eurocard format, designed for proportional valves without transducers. It provides precise control with adjustable ramp functions and four reference potentiometers, ensuring accurate and stable valve operation in industrial automation and hydraulic systems.
Manufacturer: ATOS
Type: Analog Electronic Drive
Model: E-ME-AC-05F/RR-4
| Format | Eurocard, for proportional valves without transducer |
| Options | Rising and falling ramps, 4 reference potentiometers |
| Version | 05F for double solenoid proportional valves |
| Power Supply | 24 VDC |
| Max Power Consumption | 50 W |
| Current Supplied to Solenoids | 3.3 A |
| Nominal Reference Signal (factory preset) | 5 V at contact 12C (GND on 8a) |
| Reference Signal Variation Range (scale adjust) | 10 V max / 2.5 V min |
| Potentiometers Supply | +5 V / 50 mA at contact 10c, “5 V / 20 mA at contact 14c |
| Electrical Wiring (coil) | 2 × 1 mm² up to 20 m, 2 × 1.5 mm² shielded up to 40 m |
| Operating Temperature | 0 / 50 °C |
| Front Panel Dimensions | 128.4 × 35.3 mm |
