Auma SA 07.1-G0 Multi-Turn Actuator

Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SA07.1-G0
Part No.: 13031458

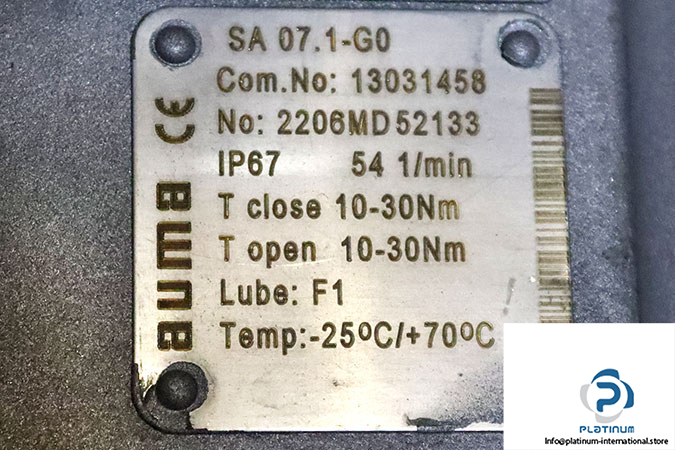

Type and Size Actuator: SA 07.1
Flange Size: G0
Torque Range in Direction Close [Nm]: 10-30
Torque Range in Direction Open [Nm]: 10-30
Lubricant Type: F1
Rated Speed [rpm]: 54
Temperature [°C]: -25…+70
Protection Class [IP]: 67

Type AC Motor: AD00 63-4/50
Art. Nr.: Z006.422
Mains Voltage [V]: 460
Rated Current [A]: 0.18
Mains Frequency [Hz]: 60
Rated Power [kW]: 0.9
Power Factor: 0.50
Type of Duty: Short-Time Duty S2-15 min
Speed [rpm]: 1680
Insulation Class: F
Thermistors Protected: Th
Protection Class [IP]: 67
