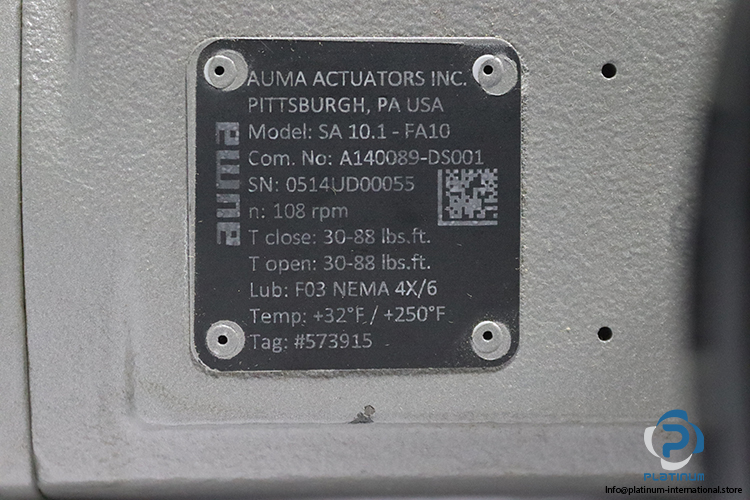

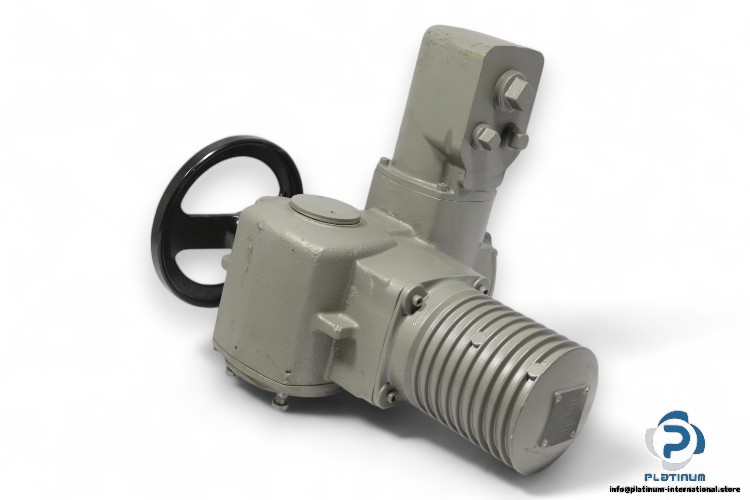

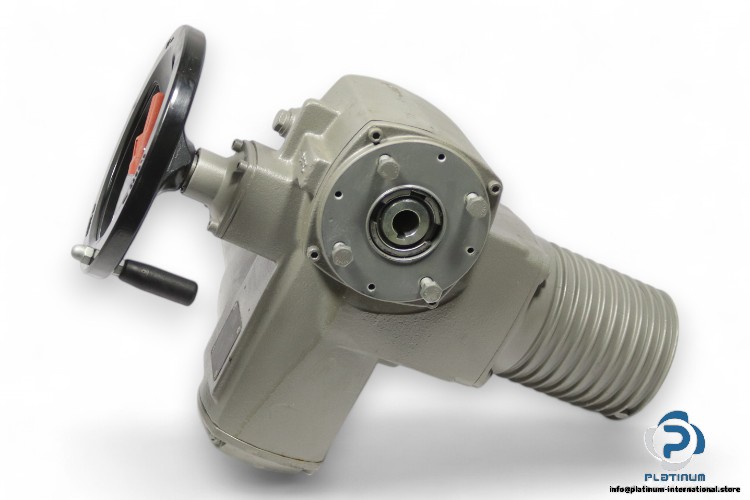

Auma SA 10.1-FA10 Multi-Turn Actuator

Manufacturer:  AUMA
Type: Multi-Turn Actuator
Model: SA10.1-FA10
MRN: A140089-DS001

Type and Size Actuator: SA 10.1
Flange Size: FA10
Torque Range in Direction Close: 30-88 lbs.ft
Torque Range in Direction Open: 30-88 lbs.ft
Lubricant Type: F03
Rated Speed: 108 rpm
Ambient Temperature Range: -32…+250°F

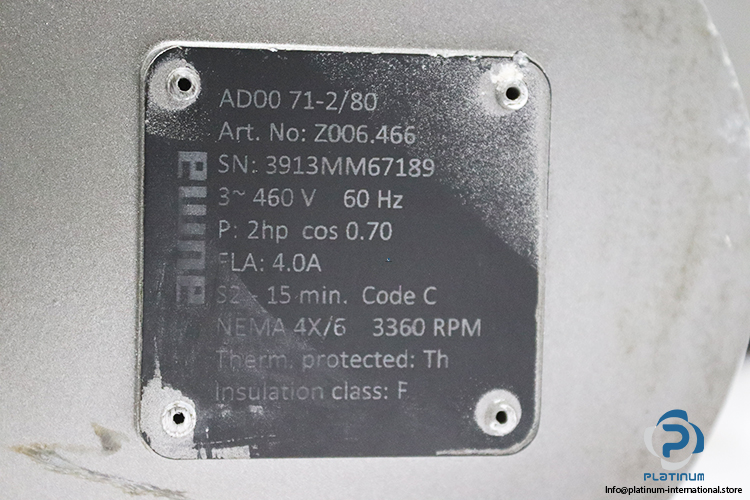

Attachment: AUMA AD00 71-2/80 AC MOTOR
Manufacturer:  AUMA
Type: AC MOTOR
Model: AD0071-2/80
Article Number: Z006.466

Mains Voltage: 460 V
Rated Current: 4 A
Mains Frequency: 60 Hz
Horsepower: 2 HP
Power Factor: 0.7
Type of Duty: Short-Time Duty S2-15 min
Speed: 3360 rpm
Insulation Class: F
Thermistors Protected: Th
