Auma SA 10.1-G0 645080 Multi-Turn Electric Actuator
Elektrischer Stellantrieb Mehrgang elektrischer Stellantrieb, 400 V AC 3-phasig, 0,75 kW, 40"120 Nm Drehmoment, IP67 Schutz. Zuverlässige Automatisierungslösung für Industriearmaturen, Rohrleitungen und Prozessleitsysteme.

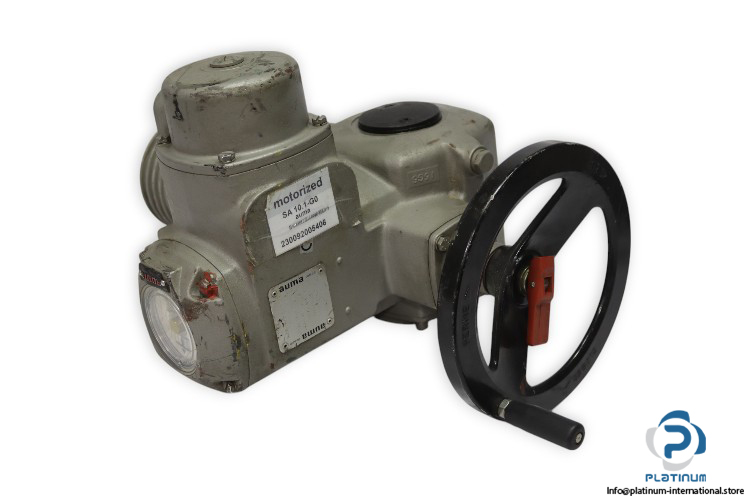

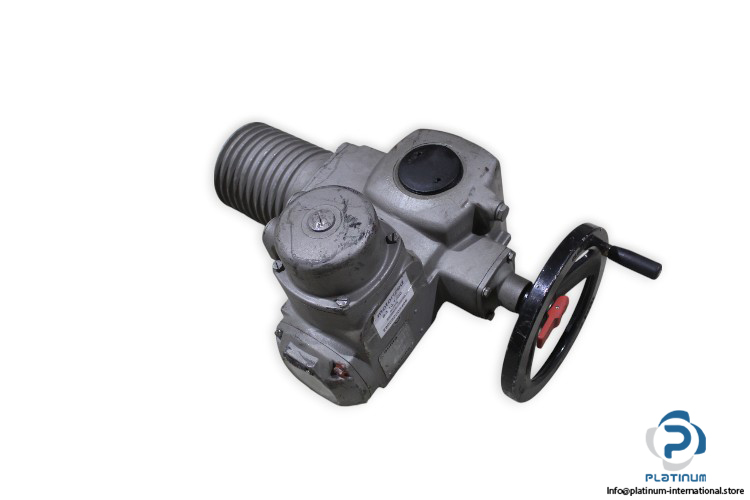

Auma SA 10.1-G0 Multi-Turn Electric Actuator
The Auma SA 10.1-G0 is a high-performance multi-turn electric actuator designed to deliver reliable torque control, precise valve operation, and long-lasting durability in demanding industrial environments. Built with robust materials and engineered for smooth operation, it provides optimal performance in process automation and fluid control systems.
Manufacturer: Auma
Type: Multi-Turn Electric Actuator
Model: SA 10.1-G0
Order No.: 645080
Serial No.: 3096MD41342
Thanks to its durable housing and high protection class IP67, this actuator is ideal for harsh operating conditions, ensuring consistent performance even in dusty or wet environments. It offers exceptional precision in valve automation, reduces maintenance requirements, and improves overall system efficiency. The Auma SA 10.1-G0 with integrated AD00 71-4/80 motor is a trusted choice for reliable valve control in critical industrial operations.

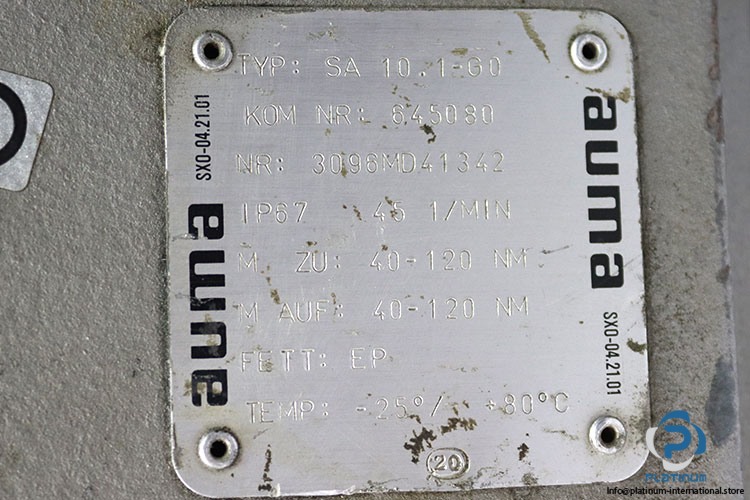

| Flange Size | G0 |
| Torque | 40 to 120 Nm (close) / 40 to 120 Nm (open) |
| Speed | 45 rpm |
| Protection Class | IP67 |
| Lubrication | Grease EP |
| Temperature Range | -25 °C to +80 °C |

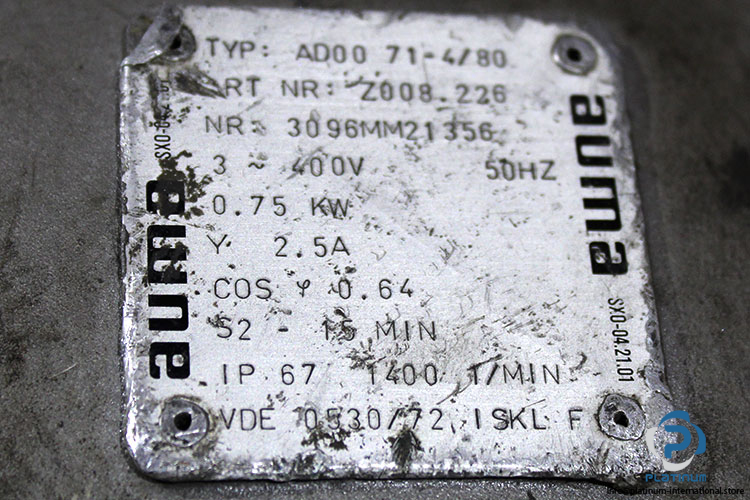

| Attachment | AUMA AD00 71-4/80 AC Motor |
| Art. No. | Z008.226 |
| Code | 3096MM21356 |
| Mains Voltage | 400 V AC 3-phase |
| Rated Current | 2.5 A |
| Mains Frequency | 50 Hz |
| Rated Power | 0.75 kW |
| Power Factor | 0.64 |
| Type of Duty | Short-Time Duty S2-15 min |
| Speed | 1400 rpm |
| Protection Class | IP67 |
| Standard | VDE 0530/72 |
| Applications | Industrial valves, pipelines, water treatment, oil & gas plants |
