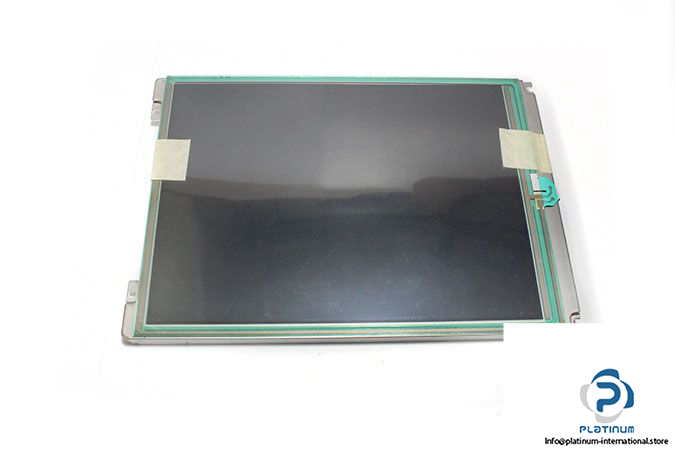

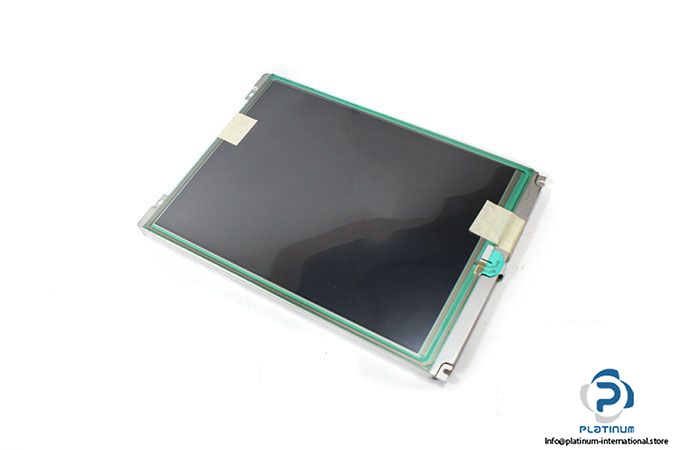

AUO G084SN05 V8 TFT LCD Module

Manufacturer: AUO

Type: 8.4 INCH COLOR TFT LCD MODULE

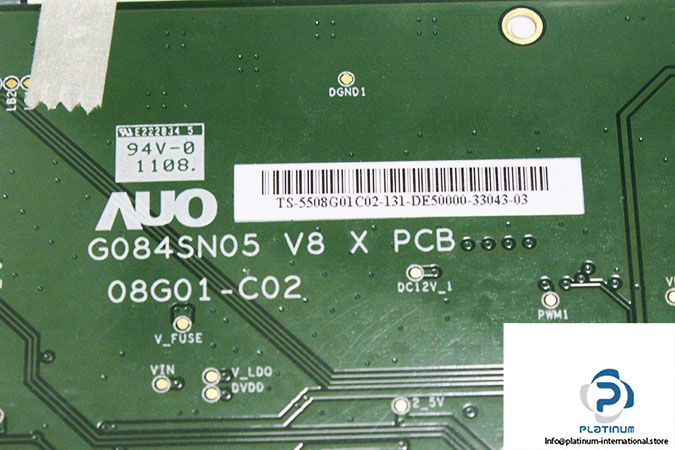

Model: G084SN05 V8

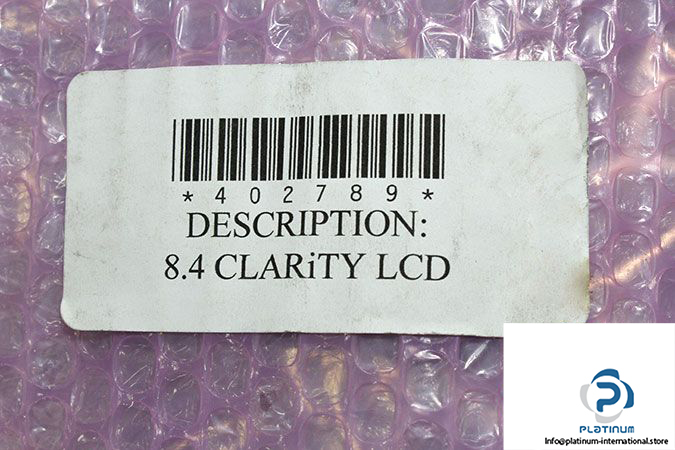

Videojet Part No.: 402789



Application: Suited To Be The Display Units For Industrial Applications

Screen Size: 8.4 inch

Active Area: 170.4 mm (H) x 127.8 mm (V)

Pixel Pitch: 0.213x 0.213 mm

Physical Size ( W x H x D ): 203.0 mm x 142.5 mm x 8.0 mm

Pixel Arrangement: R.G.B. Vertical Strip

Display Mode: TN, Normally White

Nominal Input Voltage ( VDD ): 3.3 V

Input Voltage ( VCC ): 10.8 … 12.6 V

Max. VDD Current: 330 mA

Typical Power Consumption: 4.2 Watt

Electrical Interface: 1 channel LVDS

Surface Treatment: Anti-glare, Hardness 3H

Temperature: -30 … 85 °C

Weight: 0.36 kg
