Motion Control Rotary Encoders

Autonics E50S8-5000-3-N-5 Incremental Rotary Encoder

Name: AUTONICS E50S8-5000-3-N-5 INCREMENTAL ROTARY ENCODER
SKU: 1080518
Availability: LimitedAvailability

autonics-E50S8-5000-3-N-5-incremental-encoder-(New)

autonics-E50S8-5000-3-N-5-incremental-encoder-(New)-1

autonics-E50S8-5000-3-N-5-incremental-encoder-(New)-2

autonics-E50S8-5000-3-N-5-incremental-encoder-(New)-3

Neu

Auf Anfrage verfügbar

Incremental Rotary Encoder

The Autonics E50S8-5000-3-N-5 encoder offers high precision, 5000 P/R resolution, and reliable NPN open collector output for accurate motion and position detection.

Hersteller

AUTONICS

SKU

1080518

Kategorie

Rotary Encoders

Zustand

Neu

5000 5V Automation Autonics Collector dc E50S8 E50S8-5000-3-N-5 Encoder Feedback Incremental Industrial IP50 Motion NPN Open P/R Rotary Sensor Series

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

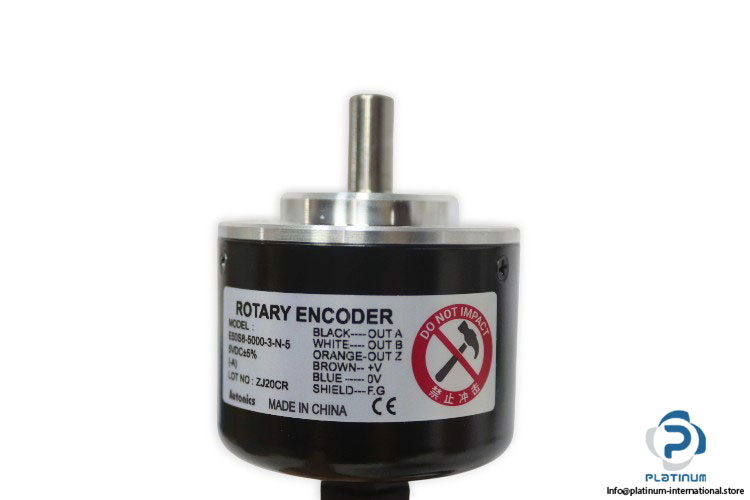

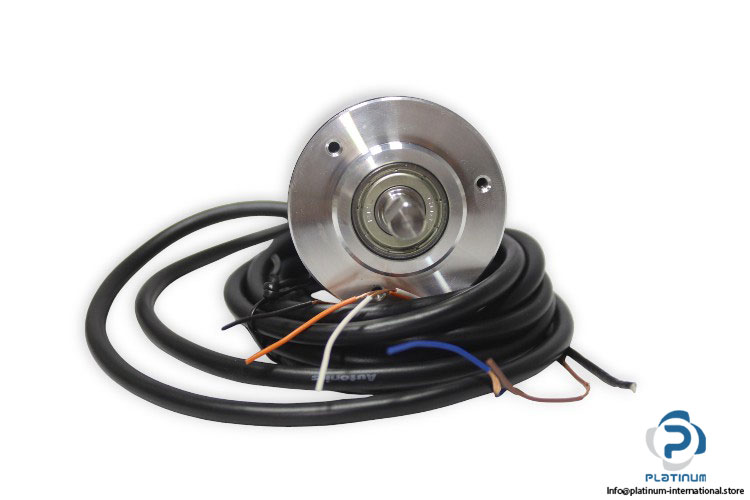

Autonics E50S8-5000-3-N-5 Incremental Rotary Encoder

The Autonics E50S850003N5 Incremental Rotary Encoder is a precise and reliable motion detection device designed for accurate speed and position feedback in industrial automation systems. Built for high-speed operation and stable output performance, it ensures dependable control in demanding environments.

Manufacturer: Autonics

Type: Incremental Rotary Encoder

Model: E50S8-5000-3-N-5

Lot. No.: ZJ20CR

Series	E50S8
Shaft Outer Diameter	8 mm
Speed Max	5000 RPM
Resolution	5000 P/R
Control Output	NPN Open Collector
Voltage Supply	5 V DC
Current Consumption Max.	80 mA
Connection Type	Axial Cable
Flange Diameter	30 mm
Length, Diameter	58.3, 50 mm
Protection Class	IP50
Temperature	-10 / 70 °C
