Autonics MT4W-DA-41 Panel Meter
Neu
Auf Anfrage verfügbar
PANEL METER
Autonics MT4W-DA-41 Panel Meter with 100“240 V AC supply, wide current measurement ranges, 4-digit LED display, and contact output up to 250 V AC, 3 A.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
AUTONICS MT4W-DA-41 PANEL METER
The Autonics MT4W-DA-41 Panel Meter is a reliable digital display device designed for precise measurement and monitoring in industrial applications. With a wide measurement range, 4-digit LED display, and high accuracy, it delivers efficient performance for various electrical systems.
Manufacturer: Autonics
Type: Panel Meter
Model: MT4W-DA-41
Code: YE09CR
| Supply Voltage | 100 to 240 V AC |
| Measurement Ranges | 0 to 5 A, 0 to 2 A, 0 to 500 mA, 0 to 200 mA, 0 to 50 mA, 4 to 20 mA, 0 to 5 mA, 0 to 2 mA |
| Frequency | 50/60 Hz |
| Power Consumption | 5 VA |

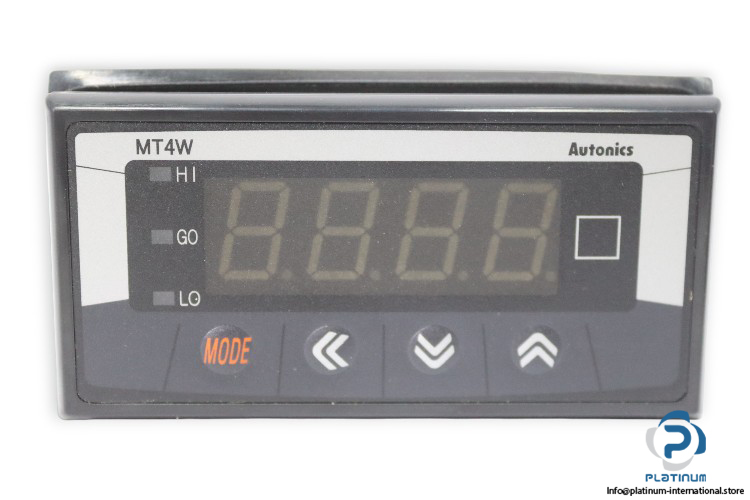

| Display Method | 4-digit 7-segment LED |
| Character Height | 14.2 mm |
| Max. Display Range | -1999 to 9999 |
| Contact Out | 250 V AC, 3 A |
| Impedance | 1 Ω to 0.01 Ω |
