Aventics 5812110110 Single Solenoid Valve
Neu
Auf Lager3 EinheitenVersandbereit
199,99$
SINGLE SOLENOID VALVE
Advanced AVENTICS single solenoid valve designed for electric actuation and 5/2-way pneumatic control. Features durable IP65-rated housing, sub-based connection, and 24 V DC coil with low power consumption.049831750224v44011100005/258120100005812110110AventicsBoschcoilconnectiondcElectricIP65PlugPneumaticPneumaticsR401001276RexrothsolenoidSub-BaseV581-5/2SR-024DC-I2-1P22-HB1valValveWay
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

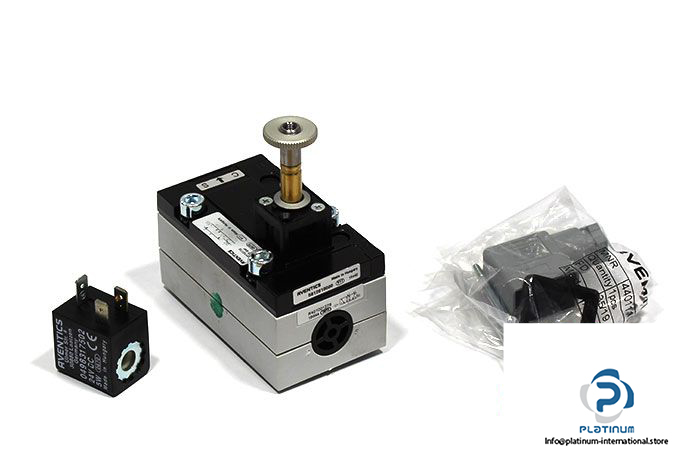

AVENTICS V581-5/2SR-024DC-I2-1P22-HB1-PA-X-C-T0 SINGLE SOLENOID VALVE
This high-precision AVENTICS single solenoid valve is engineered for demanding pneumatic systems. Built with fiber-glass reinforced polyamide and rated IP65 for durability, it offers efficient 5/2-way operation with electric actuation and reliable sub-base connection.
Manufacturer: AVENTICS / BOSCH / REXROTH
Type: Single Solenoid Valve

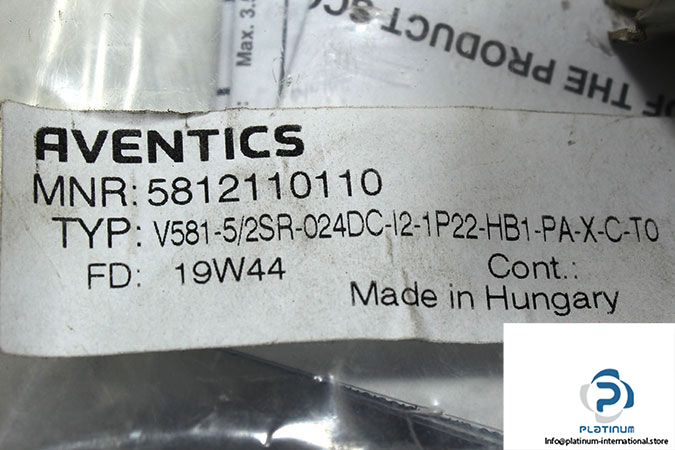

Model: V581-5/2SR-024DC-I2-1P22-HB1-PA-X-C-T0

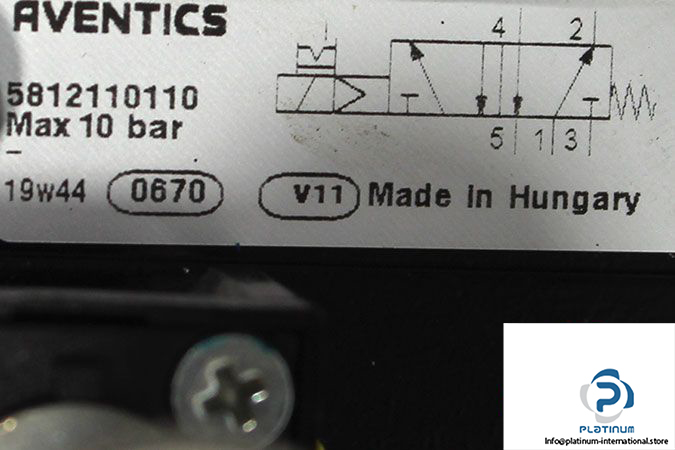

Part No.: 5812110110

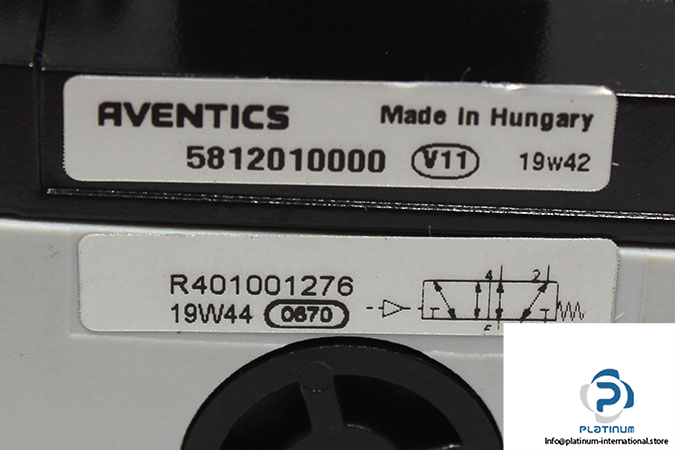

Valve Cover: 5812010000
Valve Housing Without Cover: R401001276
Included Attachments
| Fluid | Air |
| Valve Function | 5/2 Way |
| Type of Actuation | Electrically |
| Operating Pressure Max. | 10 bar |
| Plug Diameter | 8 mm |

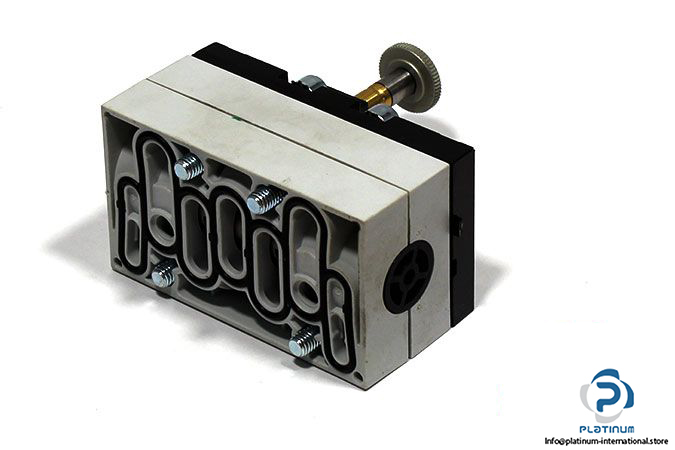

| Pneumatic Connection | Sub-Based |
| Material | Polyamide, Fiber-Glass Reinforced |
| Protection Class | IP65 |
| Ambient Temperature | 0 ... 50 °C |

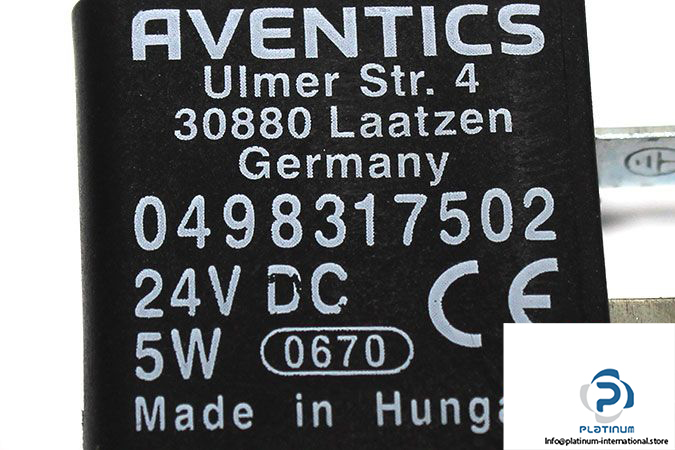

| Solenoid Coil | AVENTICS 0498317502 |
| Supply Voltage | 24 V DC |
| Power Consumption | 5 W |

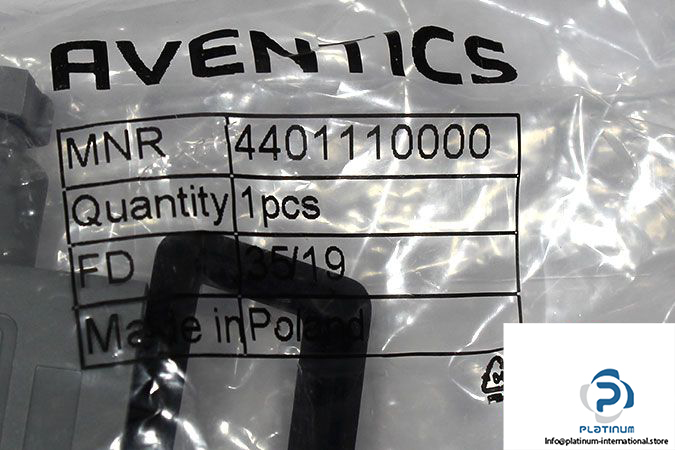

| Connection Plug | AVENTICS 4401110000 |
