Aventics R412019207 Mini Slide
Mini Slide

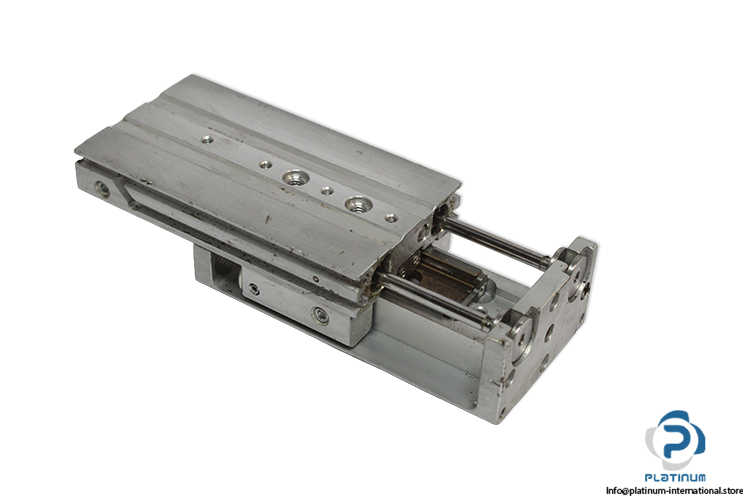

Aventics MSC mini slide with 8 mm piston diameter and 40 mm stroke, designed for precise pneumatic linear motion in compact automation systems.Aventics MSC Mini Slide R412019207
A compact and precise mini slide manufactured by Aventics (Emerson), designed for short-stroke linear movements in pneumatic automation systems. The MSC series mini slide combines accurate guidance, smooth motion, and reliable performance, making it ideal for handling, positioning, and light-duty industrial applications. Manufacturer: Aventics / Emerson
Type: Mini Slide
Series: MSC

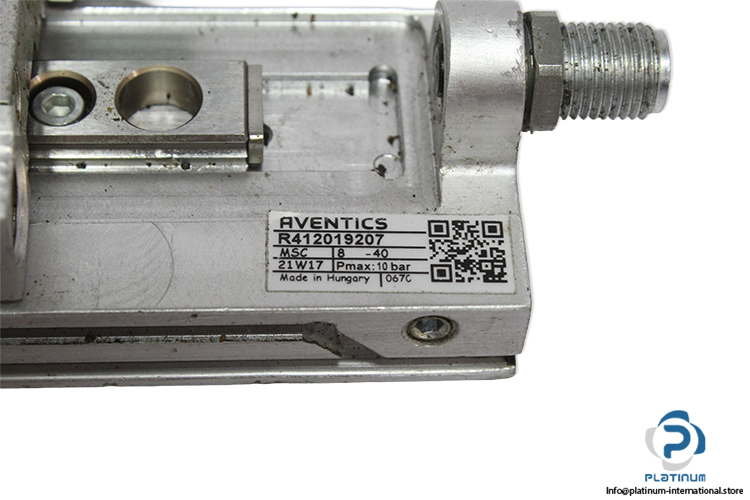

MNR: R412019207
Code: 067C / 21W17
Recommendation:
This Aventics mini slide is well suited for compact automation, pick-and-place systems, and precise linear positioning tasks. For optimal system reliability and motion accuracy, it is recommended to use this unit together with high-quality Sensors for position feedback and clean air preparation components such as Filters. Platinum International also offers a wide range of Servo Motors to support advanced and synchronized automation solutions.
| Piston Diameter | 8 mm |
| Stroke Length | 40 mm |
| Operating Pressure (Max.) | 10 bar |
| Medium | Compressed Air |
| Max. Particle Size | 5 µm |
| Pressure for Determining Piston Forces | 6.3 bar |
| Oil Content of Compressed Air | 0 to 1 mg/m³ |
| Ambient Temperature | 0 to 60 °C |
| Connection | G 1/8 “ 5 mm |
