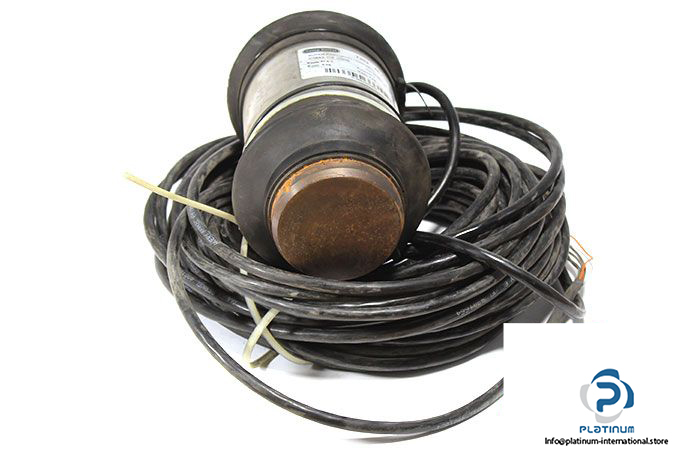

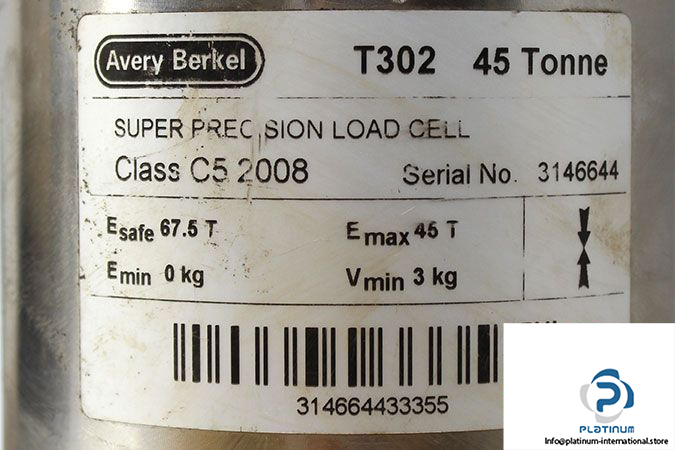

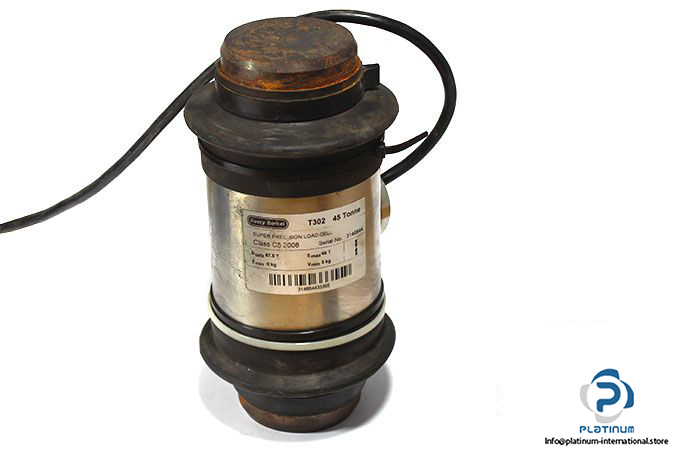

Avery Berkel T302 MAX 45000 KG High Performance Load Cell

Manufacturer: AVERY BERKEL

Type: High Performance Load Cell

Model: T302

Maximum weight limit (E max): 45000 kg

Normal Excitation Electrical: 10 – 12 V, AC or DC

Max. Excitation Electrical: 20 V, AC or DC

Rated Output: 1.75 mV/V 0.1% (At Rated Capacity)

Terminal Resistance Input At 20 °C: 560 – 620

Terminal Resistance Output At 20 °C: 480 Nominal

Class: C5

Weight: 4.48 kg
