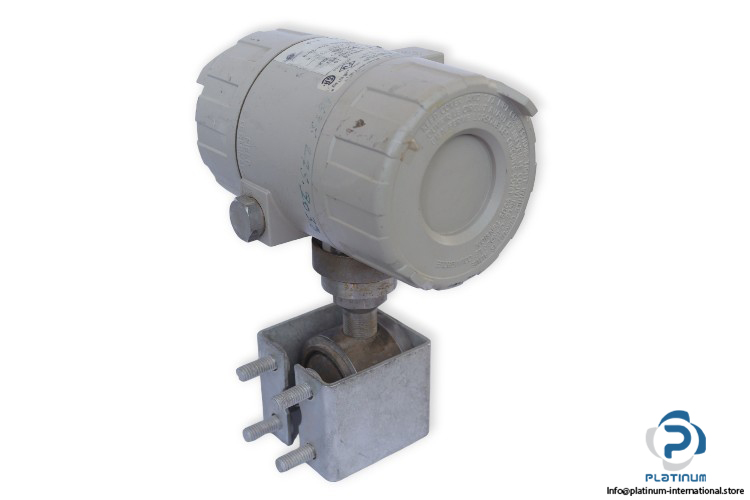

Bailey BC6721111 Differential Pressure Transmitter

Manufacturer: BAILEY
Type: Differential Pressure Transmitter
Model: BC6721111

Used for: Measuring Pressure and Differential Pressure of Liquids, Gases, and Vapors. Transmitters are Used in Oil Fields, Pipelines, Well Heads, and Other Solar or Battery Powered Systems Located in Remote Area.
Description: Absolute Pressure
Static Pressure Limit Max.: 300 PSI / 2068 kPa
Supply Voltage: 12 … 42 V DC
Analog Output Current: 4 … 20 mA
Power Consumption: 23 mW
Span: 0 … 300 PSI
Fill Fluid: Silicon Fluid
Electrical Connection: 2 x ½ “NPT Conduit Holes
Material:
Diaphragm/Trim: 316L Stainless
Flange/Adapter/Plug: 316 Stainless
O-Ring/Bolting: VITON/Carbon Steel
Protection Class: IP66/67
Temperature: -40 … 105 °C
Dimensions: 250.4 x 185.4 x 109.7 mm
