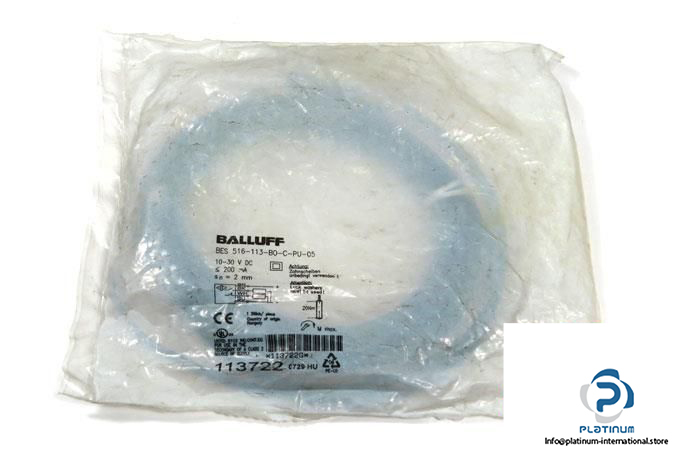

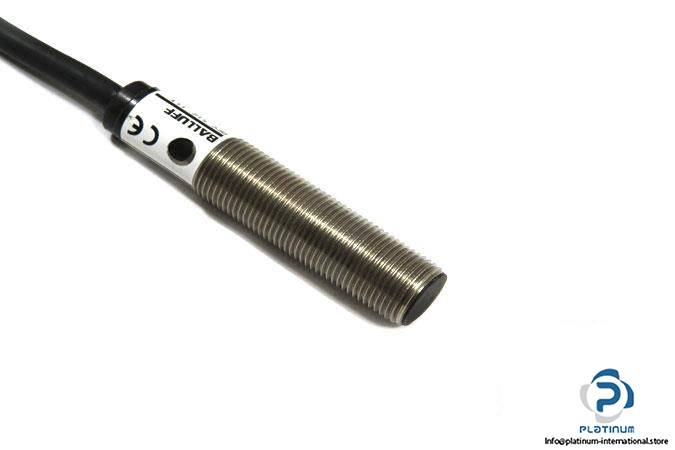

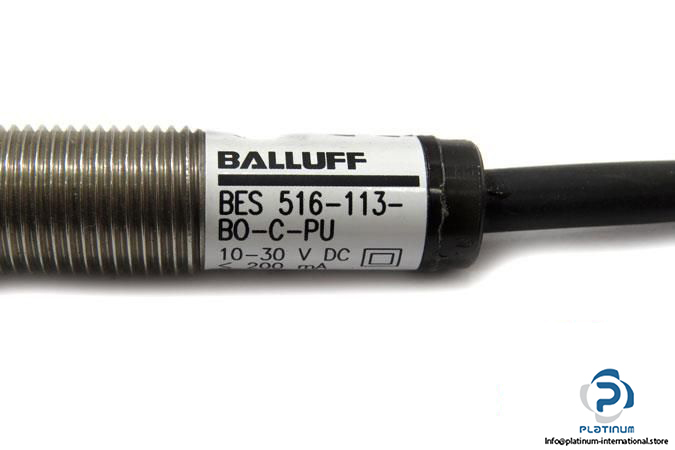

Balluff BES 516-113-BO-C-PU Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES0160

MRN: BES 516-113-B0-C-PU-05

Sensing Range: 2 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 800 Hz

Rated operating current: 200 mA DC

Electrical design: PNP

Output Function: Normally closed

Connector type: PUR Cable

Protection Class: II

Enclosure rating: IP68

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 12, 60 mm

Material: Stainless steel; sensing face: PA 12

Mounting: Flush mountable

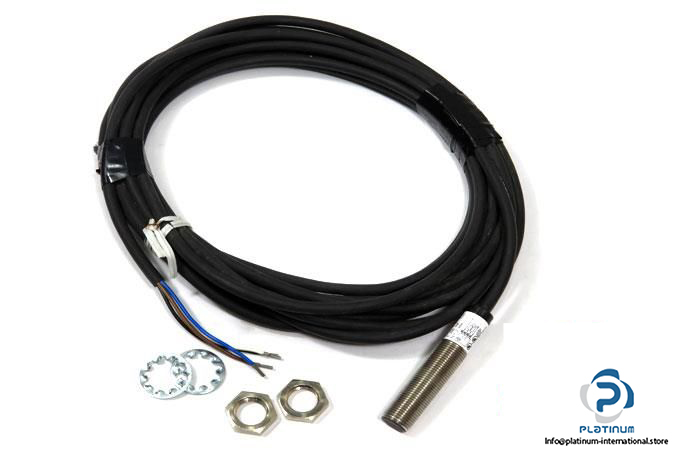

Supplied Accessories: 2 lock nuts

Condition: New
