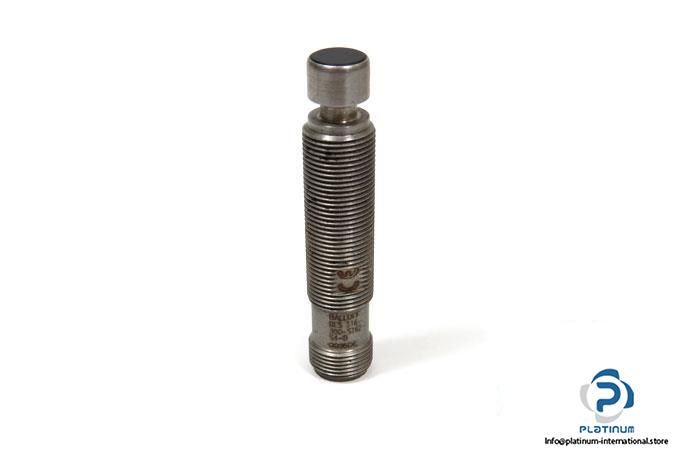

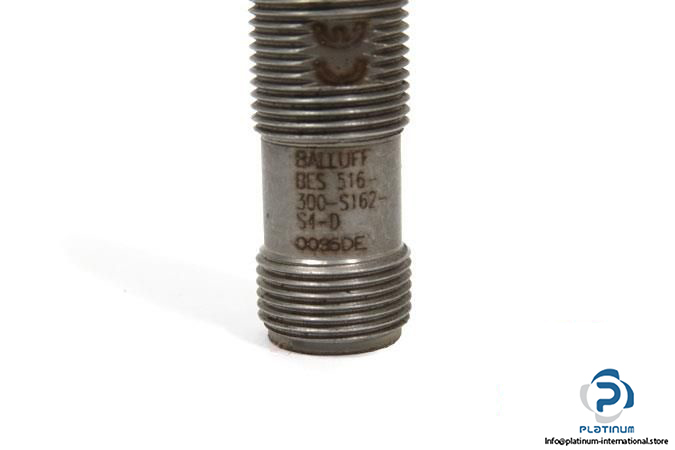

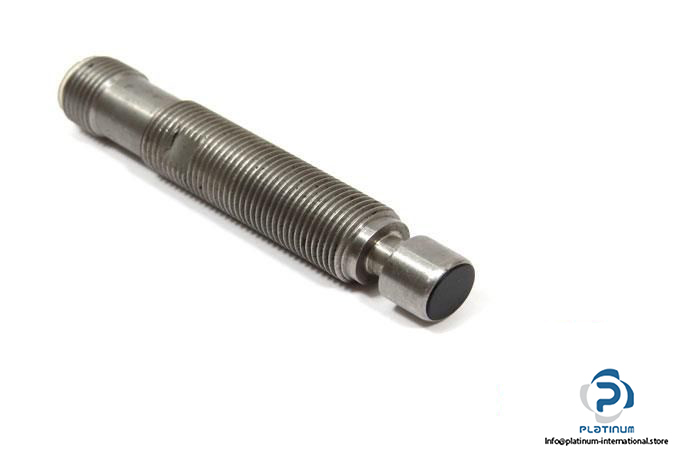

Balluff BES 516-300-S162-S4-D Inductive Pressure Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE PRESSURE SENSOR

Order Code: BHS0021

MRN: BES 516-300-S162-S4-D

Application: for position monitoring of hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.

Sensing Range: 1.5 mm

Pressure rating max: 500 Bar

Pressure rating note: Oil pressure rated

Operating Voltage: 10 … 30 V DC

Switching frequency: 1000 Hz

Rated operating current: 200 mA DC

Electrical design: PNP

Output Function: Normally open

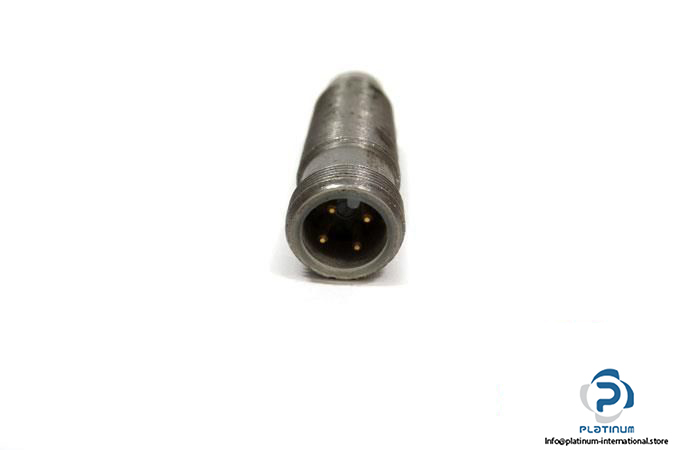

Connector type: M12 Connector

Enclosure rating: IP68

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12, 69 mm

Sealing ring size: 5.3 x 2.4 mm

Material: Stainless steel; sensing face: EP

Mounting: Flush mountable
