Balluff BES 516-325-S4-CW Inductive Sensor
Gebraucht
Auf Lager1 EinheitVersandbereit
Balluff Induktiver Sensor BES516-325-S4-CW mit 2 mm Nennbetriebsabstand, PNP elektrisches Design und IP67 Gehäuseschutz. Ideal für den industriellen Einsatz mit bündigem Einbau und hoher Schaltfrequenz.
BalluffCoatedFlushFrequencyHighInductiveIndustrialIP67M12x1MountableNormallyOpenPNPPtfeSensorSteelSwitchingtainless
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

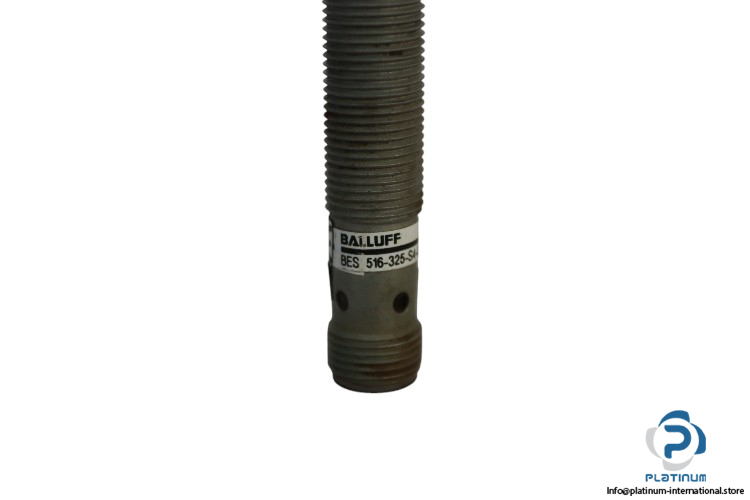

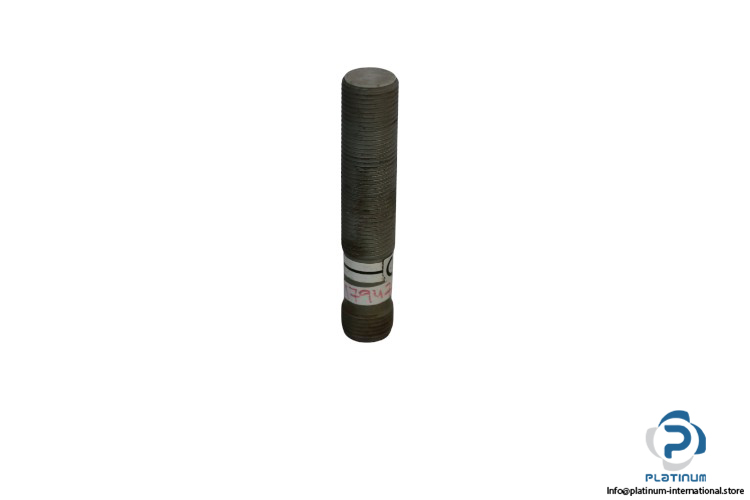

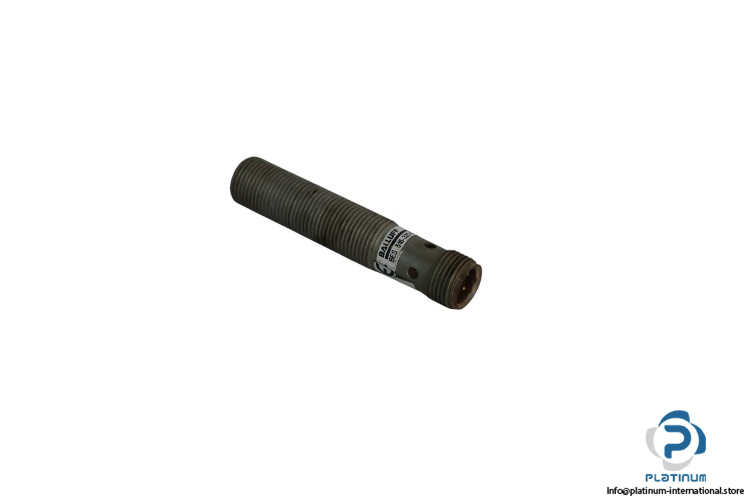

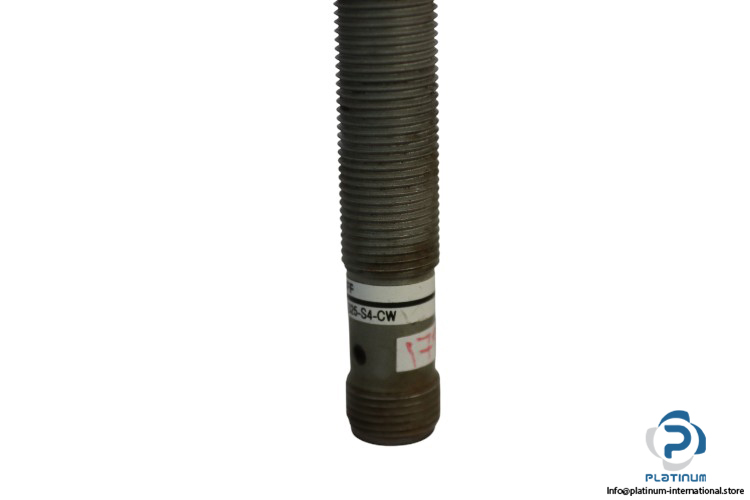

Balluff Inductive Sensor BES516-325-S4-CW
Balluff Inductive Sensor BES516-325-S4-CW is a high-performance sensor designed for precise detection in industrial environments. Below are the key technical specifications:
- Manufacturer: Balluff
- Type: Inductive Sensor
- Model: BES516-325-S4-CW
Technical Data:
- Rated Operating Distance (Sn): 2 mm
- Assured Operating Distance (Sa): 1.6 mm
- Operating Voltage: 10 / 30 V DC
- Switching Frequency: 1000 Hz
- Electrical Design: PNP
- Switching Output: Normally Open
- Connector Type: M12x1-Male, 4-pin, A-coded
- Enclosure Rating: IP67
- Ambient Operating Temperature: -25 to 70°C
- Diameter, Housing Length: 12, 61 mm
- Housing Material: Stainless steel, PTFE coated
- Material Sensing Surface: PTFE
- Mounting: Flush Mountable
