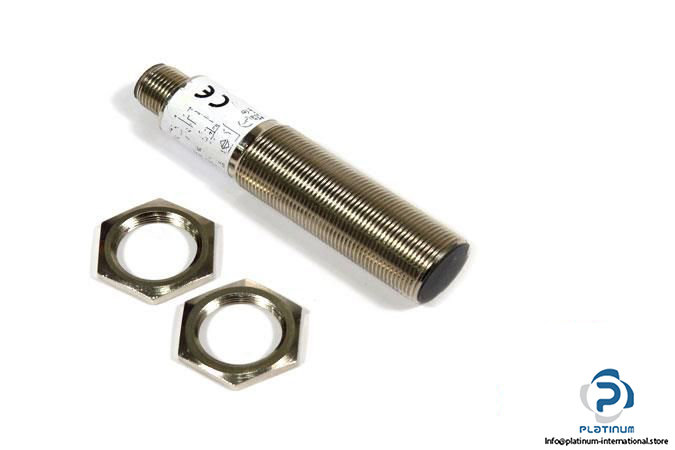

Balluff BES 516-326-S4-C Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Part No.: BES01CW

MRN: BES 516-326-S4-C

Sensing Range: 5 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 900 Hz

Load current max.: 200 mA DC

Electrical design: PNP

Output Function: Normally open

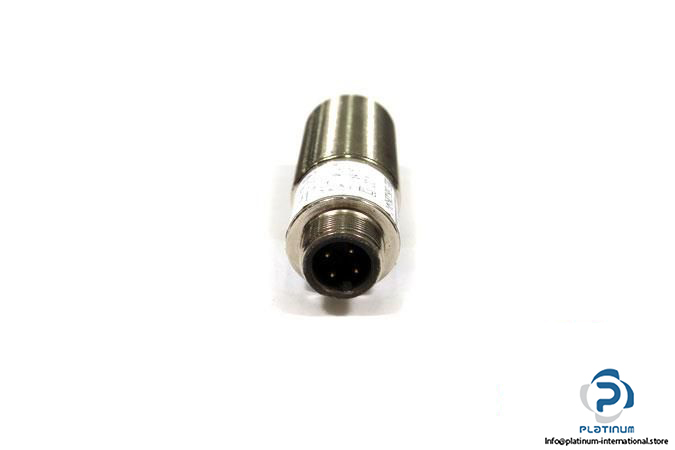

Connector type: M12 Connector, 4-pin

Protection Class: II

Enclosure rating: IP68

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 18, 83 mm

Material: Nickel-plated Brass; sensing face: PA 12

Mounting: Flush mountable

Supplied Accessories: 2 lock nuts

Condition: New / Used
