Balluff BES 516-327-S4-CW Inductive Sensor
Gebraucht
Auf Lager1 EinheitVersandbereit
Inductive Sensor
The Balluff BES516-327-S4-CW inductive sensor offers a 10 mm sensing range with PNP output and IP67 protection. Its brass housing is PTFE-coated for durability, and it includes an M12x1-Male connector for easy integration.10BalluffBES516-327-S4-CWbrassCoatedConnectorFlushInductiveIndustrialIP67M12x1-MalemmmountedPNPPtfeRangeSensingSensor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

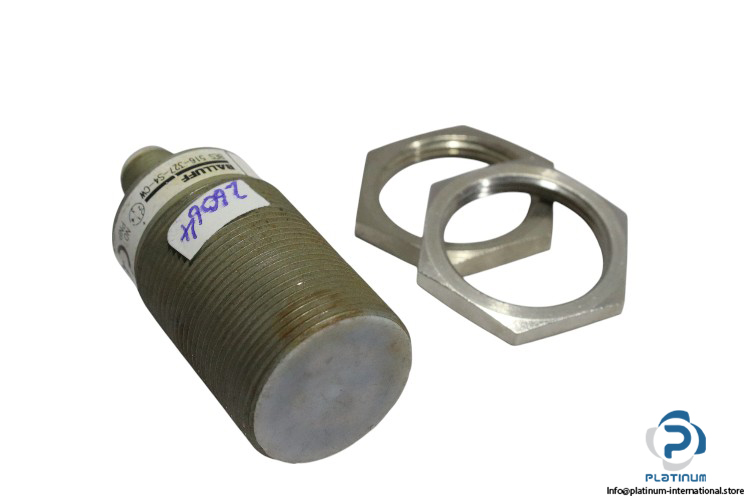

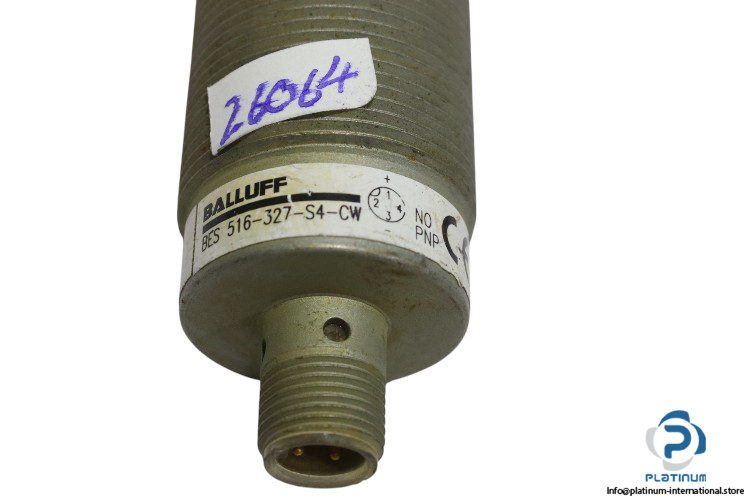

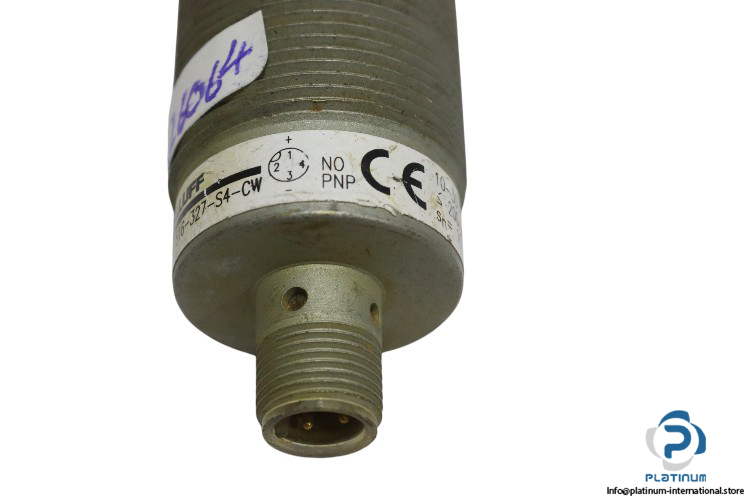

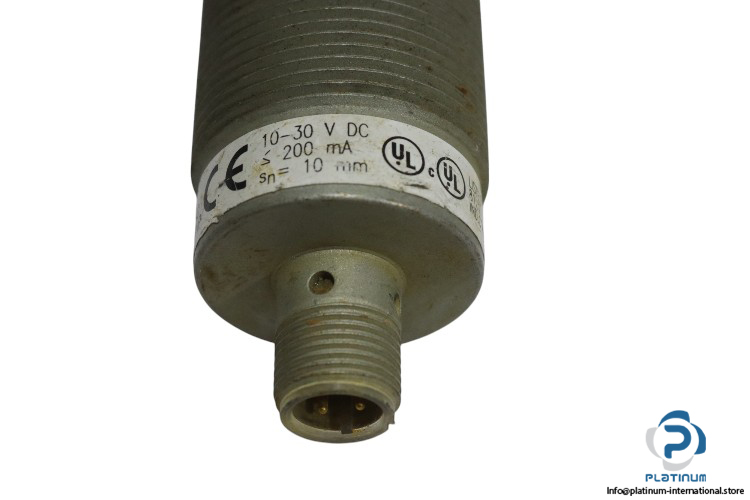

Balluff BES516-327-S4-CW “ Inductive Sensor
The Balluff BES516-327-S4-CW inductive sensor is designed for precision sensing with a 10 mm range. Featuring a cylindrical housing and flush mounting, it offers reliable performance in industrial environments with protection against dust and water ingress (IP67).
Manufacturer: Balluff
Type: Inductive Sensor
Model: BES516-327-S4-CW
Order Code: BES02JH
| Sensing Range | 10 mm |
| Operating Voltage | 10 to 30 V DC |
| Electrical Design | PNP |
| Switching Output | NO |
| Current Rating | 200 mA |
| Housing | Cylindrical |
| Mounting | Flush |
| Protection Degree | IP67 |
| Connection | Connector M12x1-Male, 4-pin, A-coded |
| Housing Material | Brass, PTFE coated |
| Operating Temperature | -25 to 70°C |
| Supplied Items | 2 lock nuts |
| Dimensions | Diameter 30 x Length 65 mm |
