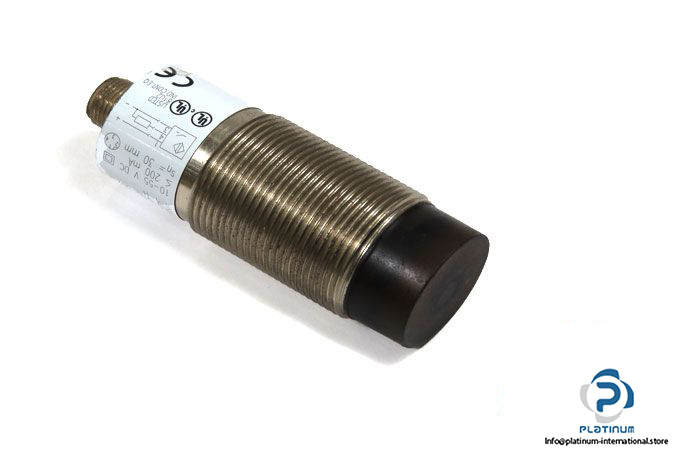

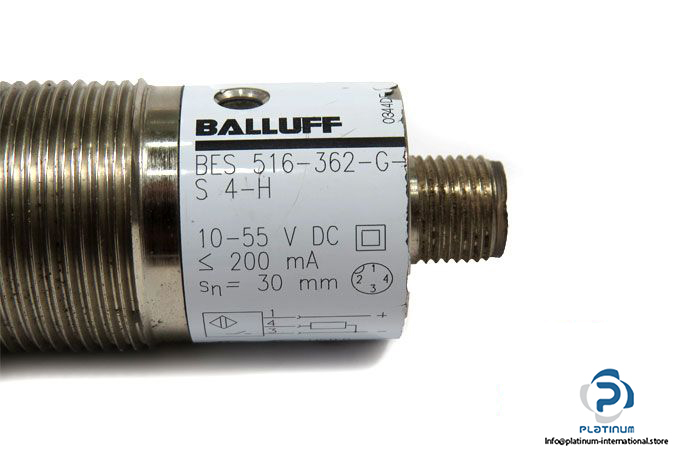

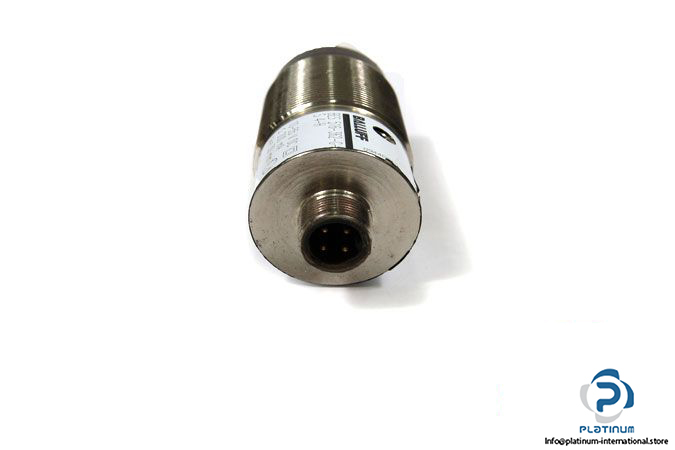

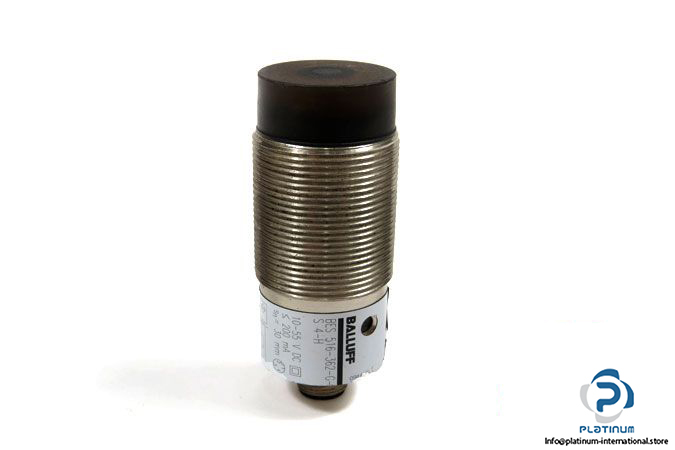

Balluff BES 516-362-G-S4-H Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order code: BES01JC

MRN: BES 516-362-G-S4-H

Sensing Range: 30 mm

Operating Voltage: 10 … 55V DC

Switching frequency: 70 Hz

Switching output current: 200 mA DC

Electrical design: PNP

Output Function: Normally open

Connector type: M12 Connector, 4-pin

Protection Class: II

Enclosure rating: IP68

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30, 83 mm

Material: Nickel-plated Brass; sensing face: PA 12
