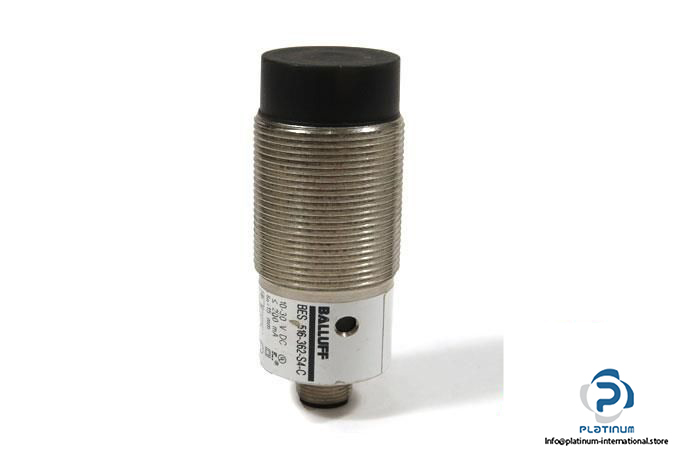

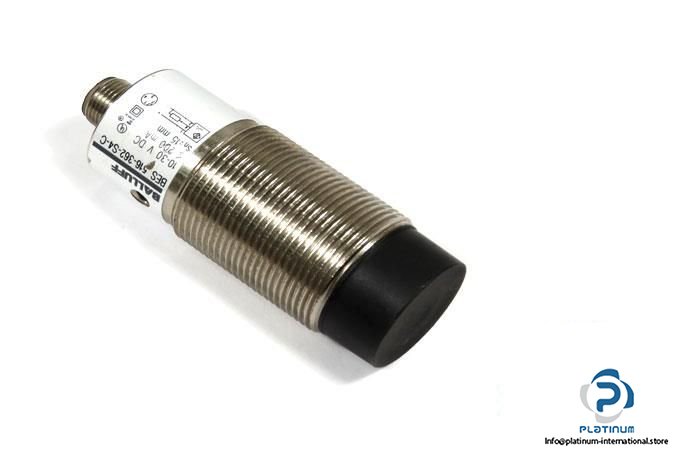

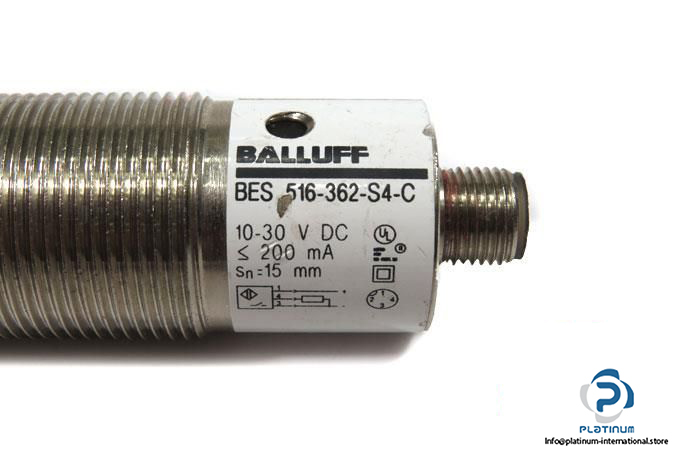

Balluff BES 516-362-S4-C Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES01JE

MRN: BES 516-362-S4-C

Sensing Range: 15 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 100 Hz

Load current max.: 200 mA DC

Electrical design: PNP

Output Function: Normally open

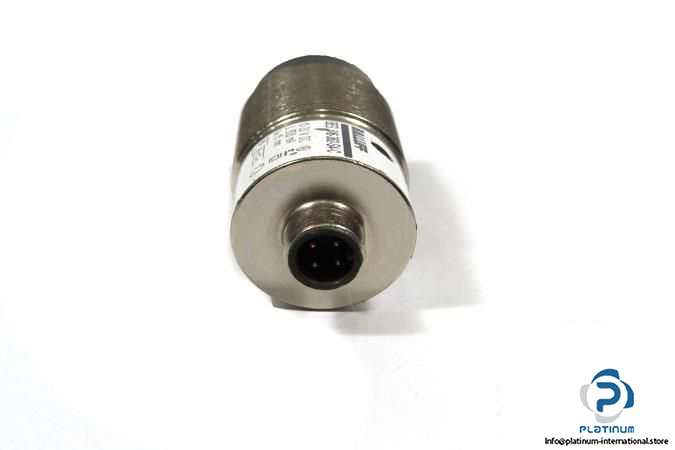

Connector type: M12 Connector, 4-pin

Protection Class: II

Enclosure rating: IP68

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30, 83 mm

Material: Nickel-plated Brass; sensing face: PA 12

Mounting: Flush mountable, or non-flush mountable

Condition: Used
