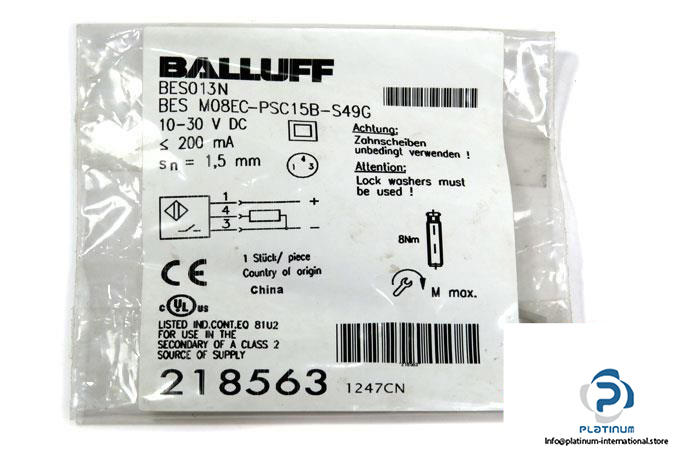

Balluff BES M08EC-PSC15B-S49G Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES013N

MRN: BES M08EC-PSC15B-S49G

Sensing Range: 1.5 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 5000 Hz

Rated operating current: 200 mA DC

Electrical design: PNP

Output Function: Normally open

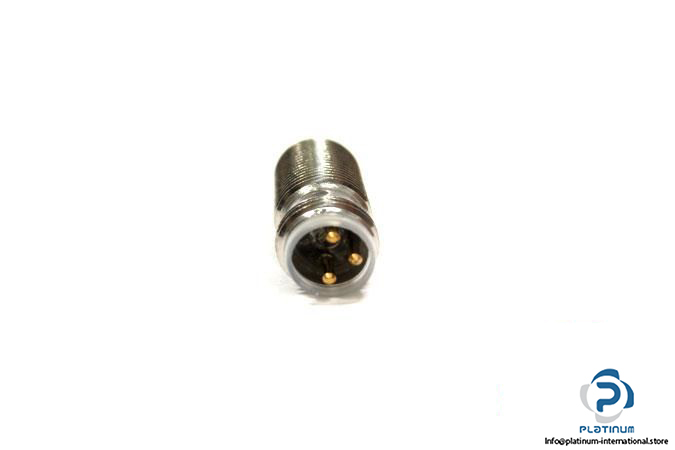

Connector type: M8 Connector, 3-pin

Protection Class: II

Enclosure rating: IP68

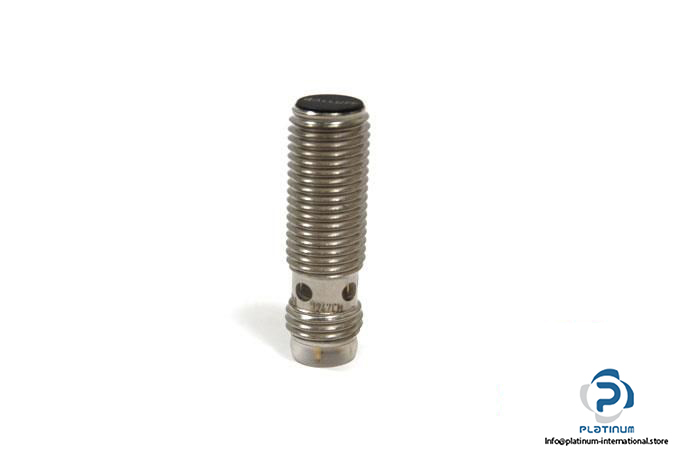

Housing: Threaded type

Ambient Operating temperature: -40 … 85°C

Diameter, Housing length: 8, 30 mm

Material: Stainless steel; sensing face: PBT

Mounting: Flush mountable

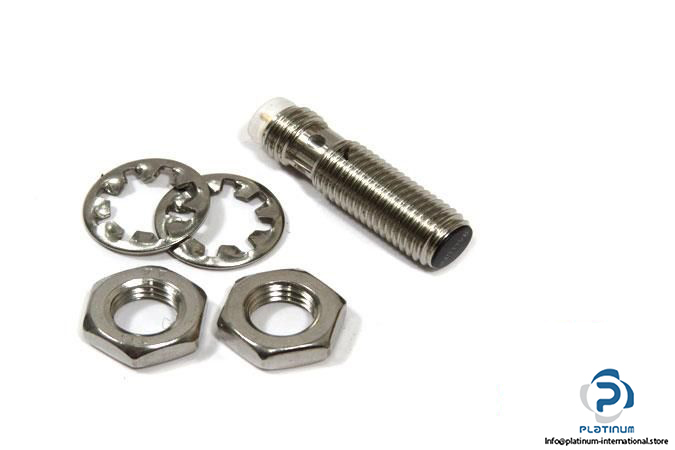

Supplied Accessories: 2 lock nuts

Condition: New
