Balluff BES M30MI-PSC10B-S04K Inductive Sensor
Gebraucht
Auf Lager2 EinheitenVersandbereit
Inductive Sensor
Balluff BESM30MI-PSC10B-S04K inductive sensor with 10 mm sensing range, 12 / 30 V DC PNP design, normally open output, M12 4-pin connector, and robust nickel-plated brass housing.BalluffBES00A4BESM30MI-PSC10B-S04KbrassConnectorInductiveIndustrialM12M30NickelPlatedPNPProximitySensor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

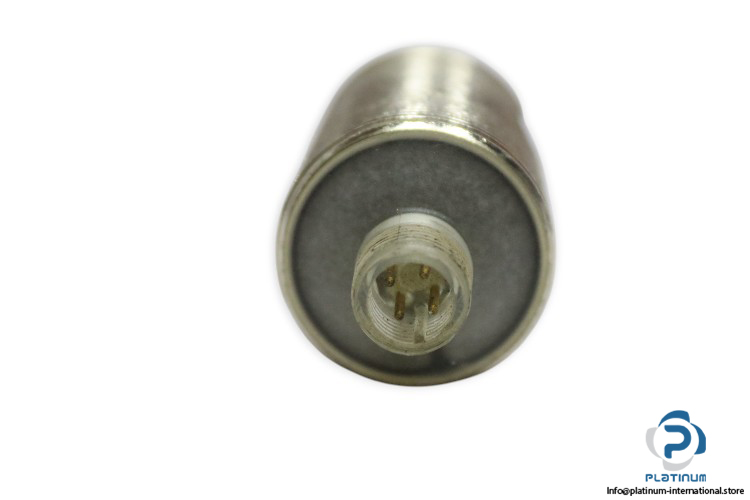

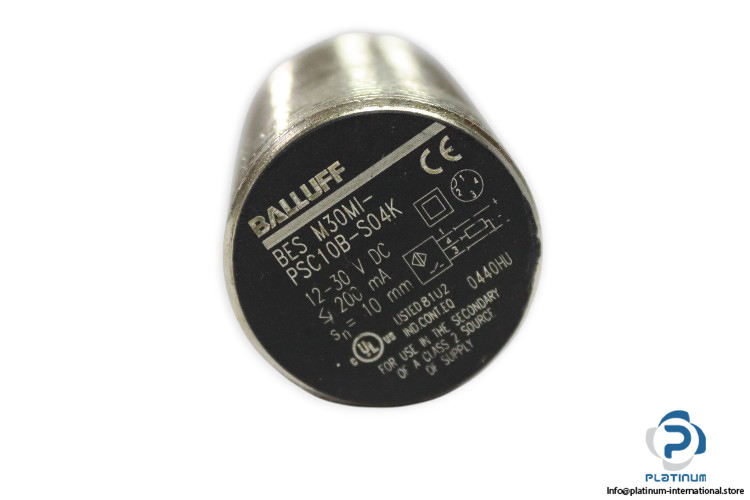

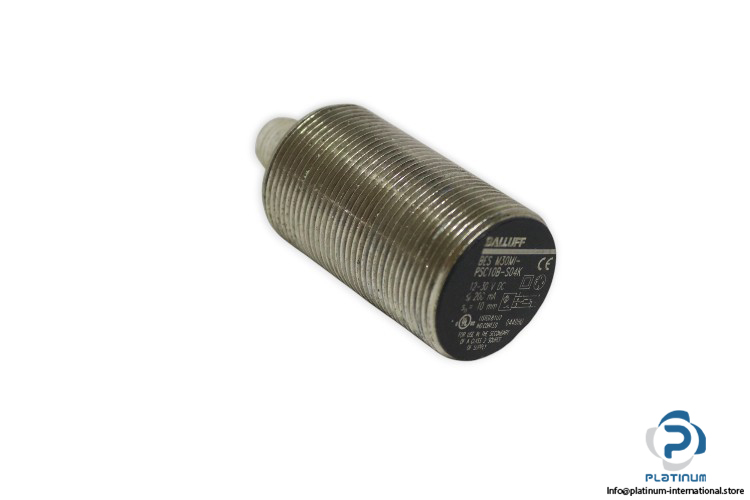

Balluff BESM30MI-PSC10B-S04K Inductive Sensor
The Balluff BESM30MI-PSC10B-S04K is a high-performance inductive sensor designed for precise and reliable detection in industrial automation systems. With durable nickel-plated brass housing and stable output characteristics, it ensures dependable operation in demanding environments.
Manufacturer: Balluff
Type: Inductive Sensor
Model: BESM30MI-PSC10B-S04K
Order Code: BES00A4
| Sensing Range | 10 mm |
| Operating Voltage | 12 / 30 V DC |
| Electrical Design | PNP |
| Switching Output | Normally Open |
| No-load Current Io max | 10 mA |
| Rated Insulation Voltage Ui | 250 V AC |
| Rated Operating Current | 200 mA |
| Connector Type | M12, 4-pin |
| Size | M30 x 1.5 |
| Housing | Cylindrical |
| Housing Material | Brass, Nickel-plated |
| Operating Temperature | -25 / 70 °C |
