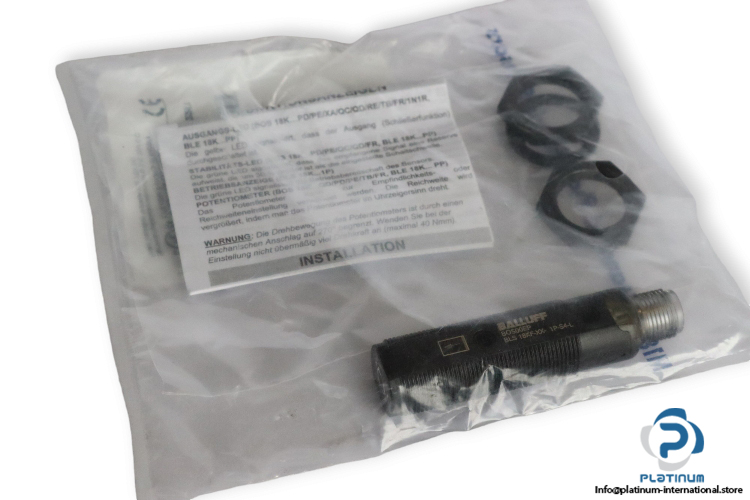

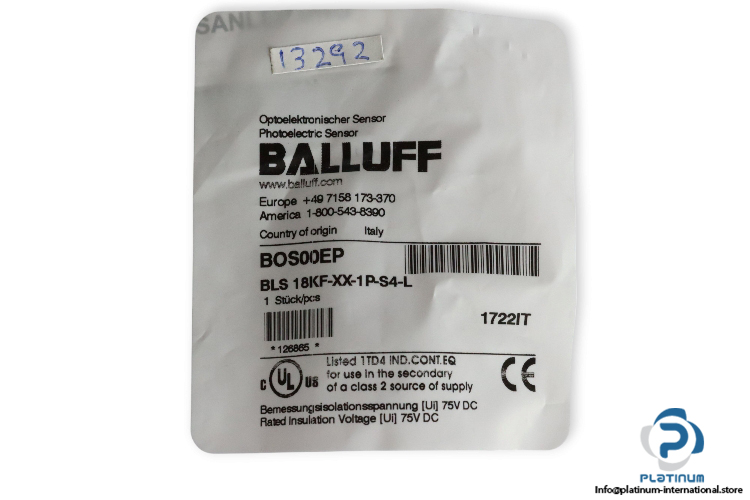

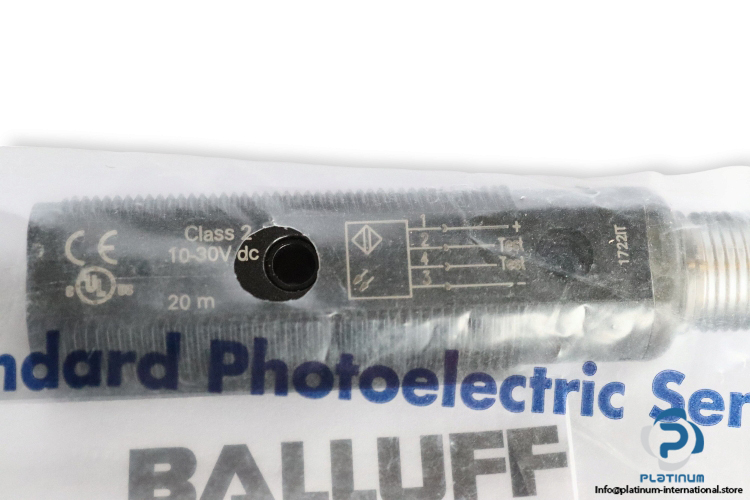

Balluff BOS00EP Photoelectric Sensor

Name: BALLUFF BOS00EP PHOTOELECTRIC SENSOR
SKU: 1043700
Availability: LimitedAvailability

balluff-BOS00EP-photoelectric-sensor-(new)

balluff-BOS00EP-photoelectric-sensor-(new)-1

balluff-BOS00EP-photoelectric-sensor-(new)-2

Neu

Auf Lager3 EinheitenVersandbereit

Photoelektrischer Sensor

Hersteller

BALLUFF

SKU

1043700

Kategorie

Sensors

Zustand

Neu

20000mm Balluff Emitter Photoelectric Sensor Sn:Through-beam

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacture: Balluff
Type: Photoelectric Sensor
Model: BOS00EP
MNR: BLS 18KF-XX-1P-S4-L
Series: 18KF

Sensing Range: 0 … 20 m
No-load current Io max. at Ue: 35 mA
Operating voltage Ub: 10 … 30 VDC
Rated insulation voltage Ui: 75 V DC
Connection method: Connector, M12x1-Male, 4-pin
Housing Material: PBT
Light type: Infrared
Principle of optical operation: Through-beam sensor (Emitter)
Wave length: 880 nm
Degree of protection (IP): IP67
Ambient temperature: -25 … 55°C
Dimensions: M18 x Length 71.5 mm
Basic standard: IEC 60947-5-2
Style: Flat cylinder, Straight optics

Spezifikation	Wert
Weight	0,02 kg
Condition	New
Manufacturer	BALLUFF
Type of Product	Photoelectric Sensor
Max. Sensing Range [mm]	20000
Nominal Voltage [DC]	24 V
Shelf No.	240420
MNR	BLS 18KF-XX-1P-S4-L
Dimensions [mm]	M18 x Length 71.5 mm
