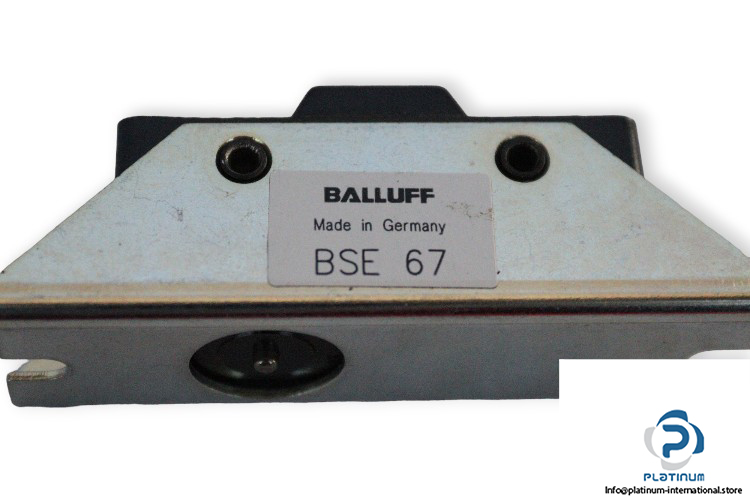

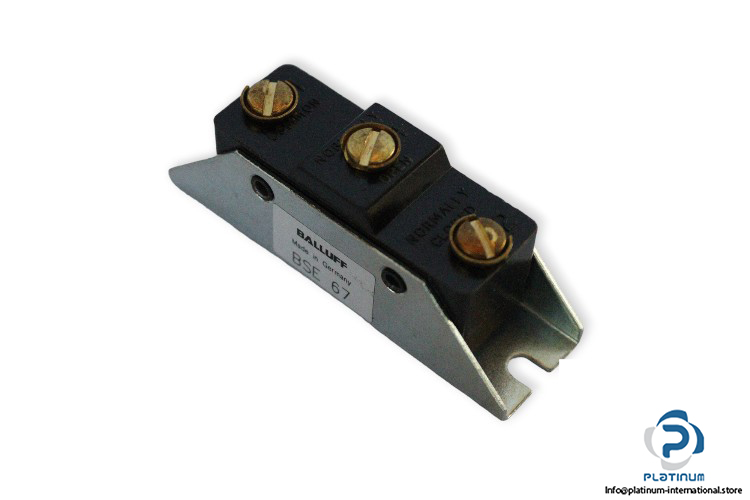

Balluff BSE 67-RK Single Position Limit Switch

Manufacture: Balluff
Type: Single Position Limit Switch
Model: BSE67RK

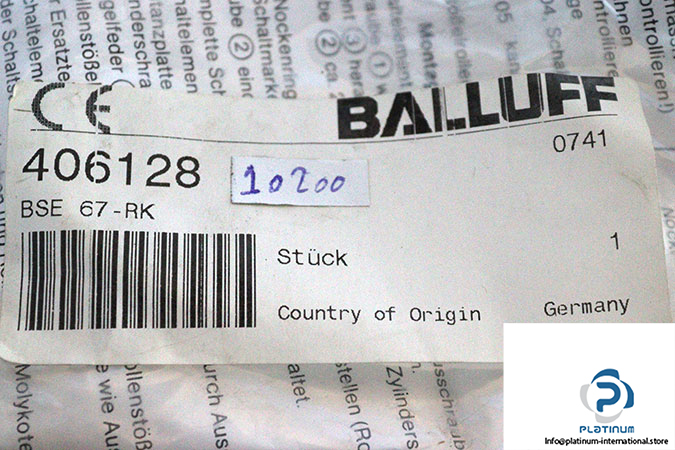

Part No.: 406128

Nominal voltage: 500 V AC
Continuous current: 6.0 A
Electrical Connection: M3.5
Connection type: Screw terminal
Contact system: Single-pin changeover
Contact arrangement: NC, NO
Contact resistance: max. 20 mOhm
Switching principle: Snap switch
Material contacts: Silver
Connection cross-section: 1.5 mm²
Switching actuation force: max. 3.60 N
Ambient temperature: -5 … 80 °C
Dimensions: 61 x 68 x 19.5 mm
