Motion Control Linear Encoders

Balluff BTL02PF Magnetostrictive Linear Position Sensor

Name: BALLUFF BTL02PF MAGNETOSTRICTIVE LINEAR POSITION SENSOR
SKU: 1031034
Price: 399.99 USD
Availability: InStock

balluff-BTL5-A11-M0200-P-S32-magnetostrictive-sensors-(used)

balluff-BTL5-A11-M0200-P-S32-magnetostrictive-sensors-(used)-1

balluff-BTL5-A11-M0200-P-S32-magnetostrictive-sensors-(used)-2

Gebraucht

Auf Lager1 EinheitVersandbereit

399,99$

MAGNETOSTRIKTIVER SENSOR Balluff BTL5-A11-M0200-P-S32 magnetostriktiver Sensor bietet hochpräzise 200 mm lineare Messung mit eloxiertem Aluminiumgehäuse, IP67-Schutz und axialem M16-Stecker.

Hersteller

BALLUFF

SKU

1031034

Kategorie

Linear Encoders

Zustand

Gebraucht

8-pin Aluminium Axial Balluff BTL5-A11-M0200-P-S32 Connector High Housing Industrial IP67 Linear Magnetostrictive Micropulse Position Resolution Sensor

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

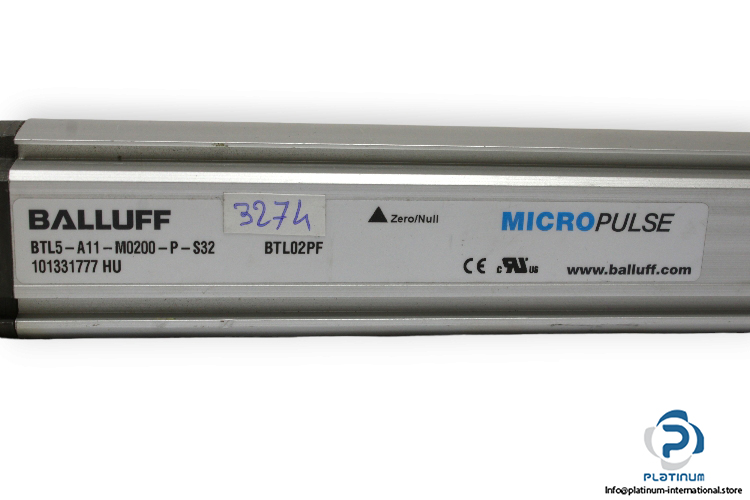

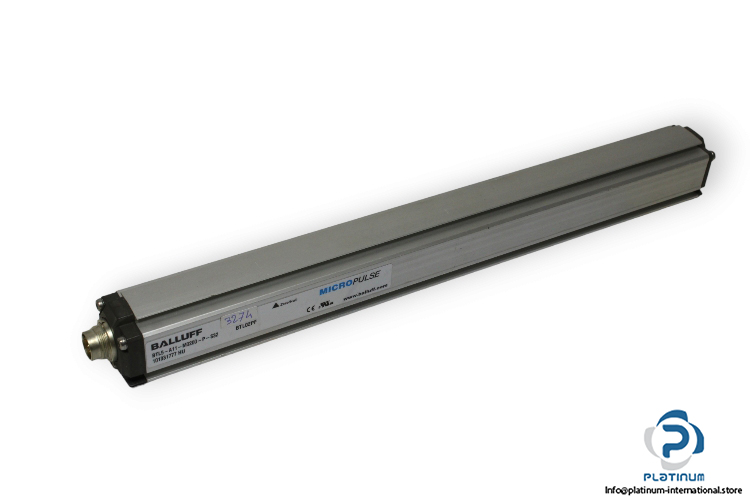

BALLUFF BTL5-A11-M0200-P-S32 MAGNETOSTRICTIVE SENSOR

The Balluff BTL5-A11-M0200-P-S32 is a high-precision magnetostrictive sensor designed for linear position measurement in demanding industrial applications. With durable anodized aluminum housing and IP67 protection, it ensures stable performance across harsh environments.

Manufacturer: Balluff

Type: Magnetostrictive Sensor

Model: BTL5-A11-M0200-P-S32

Part No: BTL02PF

Ref No: 101331777 HU

Series: Micropulse

Operating Voltage Ub	20 / 28 V DC
Current Consumption Max.	150 mA
Electric Stroke	200 mm
Ambient Temperature	-40 / 85 °C
Protection Degree	IP67

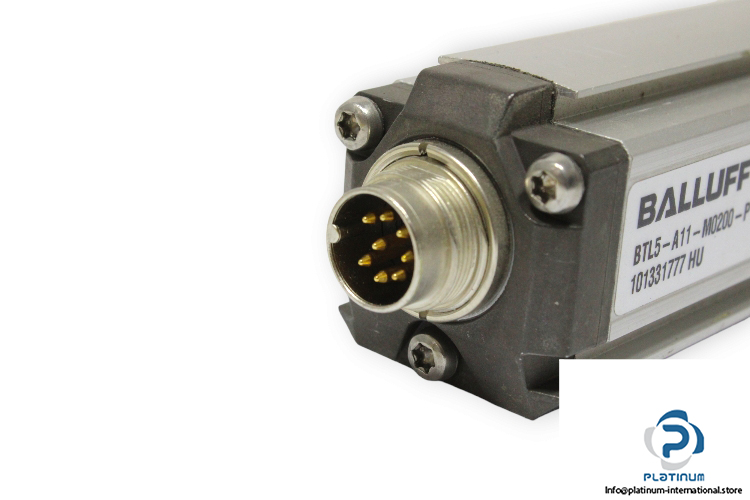

Connection	Connector M16x0.75, 8-pin
Connection Version	Axial
Housing Material	Aluminium, Anodized
Resolution	‰¤ 0.1 mV
Overall Length	346 mm
