Banner BMEL3616A Measuring Light Curtain
Neu
Auf Lager1 EinheitVersandbereit
399,99$
MEASURING LIGHT CURTAIN
Banner BMEL3616A emitter light curtain with 48-beam MINI-ARRAY system, 19 mm beam spacing, and 12V DC input ” engineered for industrial precision sensing.12V48AluminumBannerbeamcomasCurtaindcDetectionEmitterHousingIndustrialLightlongMeasuringMini-ArrayPrecisionRangeSensingSensor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

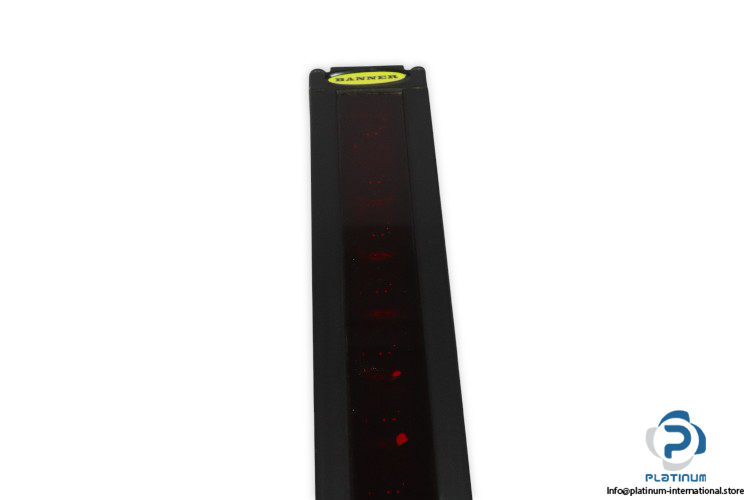

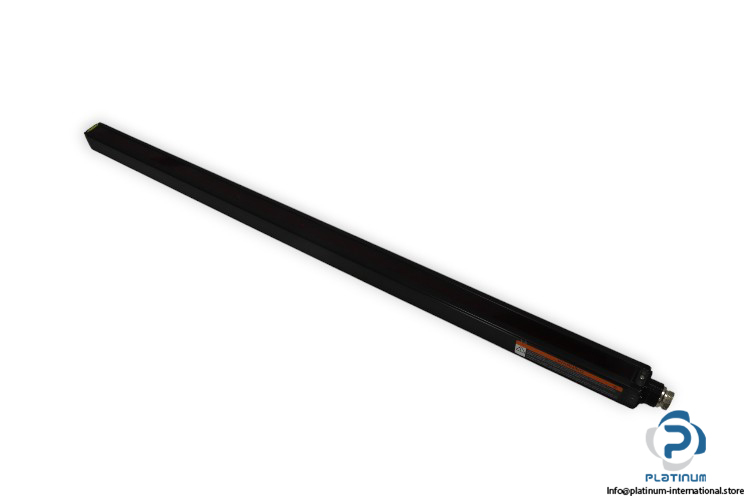

BANNER BMEL3616A MINI-ARRAY MEASURING LIGHT CURTAIN
The Banner BMEL3616A MINI-ARRAY Measuring Light Curtain is a highly precise emitter unit ideal for industrial applications requiring accurate part profiling, edge detection, and dimensional gauging. With durable aluminum housing and long-range capabilities, it offers dependable performance in challenging environments.
Manufacturer: BANNER
Type: MINI-ARRAY Series Measuring Light Curtain

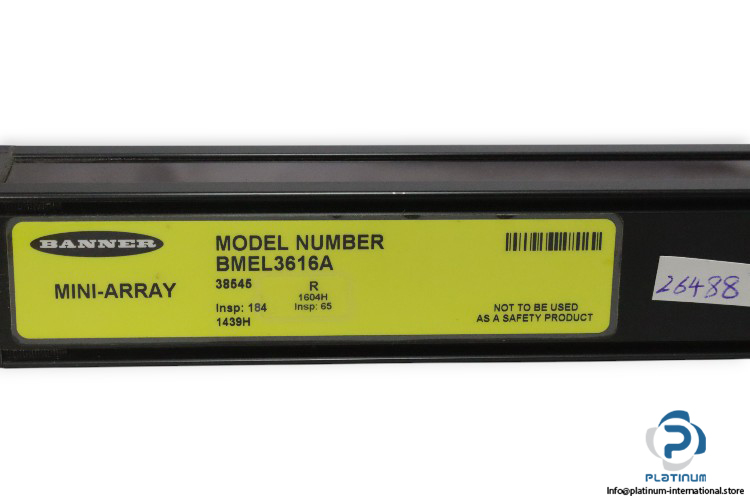

Model: BMEL3616A
Part No.: 38545
| Housing Length | 963 mm |
| Array Length | 895 mm |
| Number of Beams | 48 |
| Beam Spacing | 19 mm |
| Sensing Mode (Detailed) | Emitter |
| Emitter/Receiver Range | 0.9 “ 16.5 m |
| Device Type | Three-Piece |
| Primary Housing Material | Aluminum |
| Supply Voltage | 12V DC |
| Temperature Range | -20 to 70°C |
