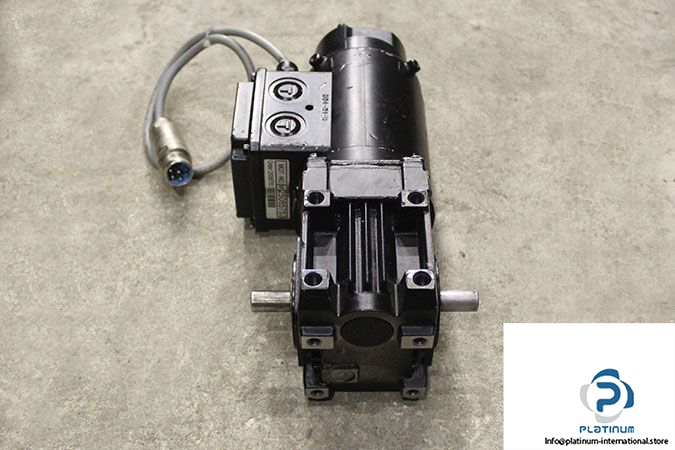

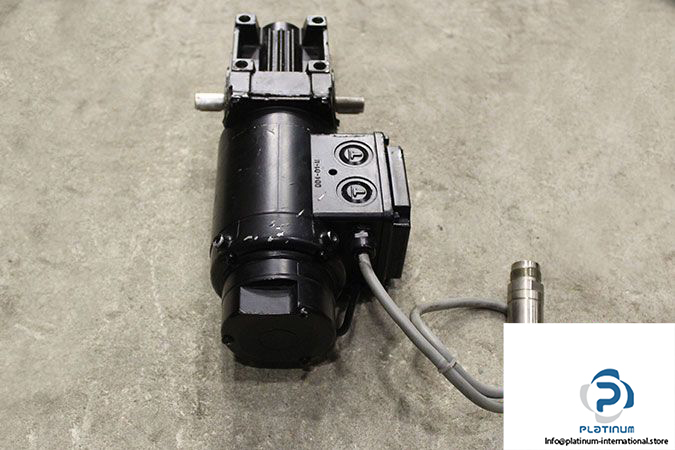

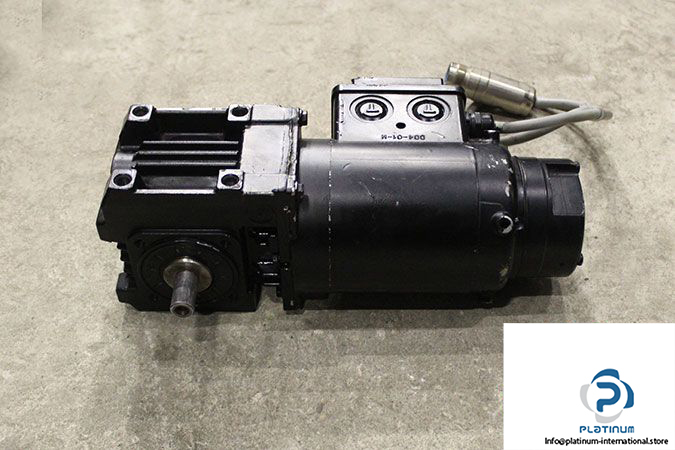

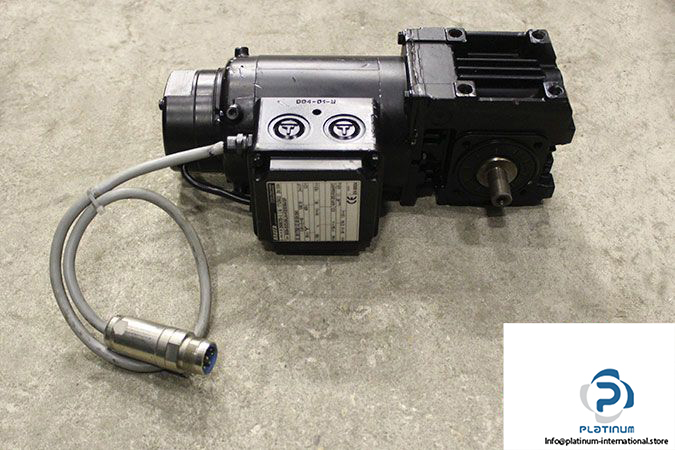

Bauer BS04-83/DU04LA4-K/E003B4/SP Geared Motor

Manufacturer: Bauer

Type: Geared Motors

Model: BS04-83/DU04LA4-K/E003B4/SP

ID No.: 2817750 137 00 EA1041

Ratio [i]: 90

Output Speed [rpm]: 1350/15

Rated Power [kW]: 0.04

Rated Voltage [V]: 400

Rated Current [A]: 0.2

Rated Torque [Nm]: 16.5

Power Factor: 0.6

Frequency [Hz]: 50

Brake Voltage [VDC]: 24

Brake Current [A]: 0.74

Brake Torque [Nm]: 1.5

Lubrication: 4UH1-200,Kiuber(H1)

Quantity Lubrication [L]: 0.2

Ambient Temperature [°C]: 40

Protection Class [IP]: 54

Insulation Class: F

Duty: S1 Cont.

Weight [kg]: 6.625
