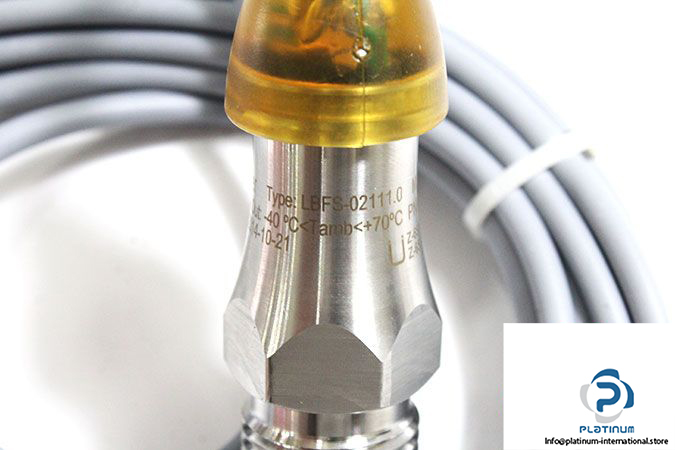

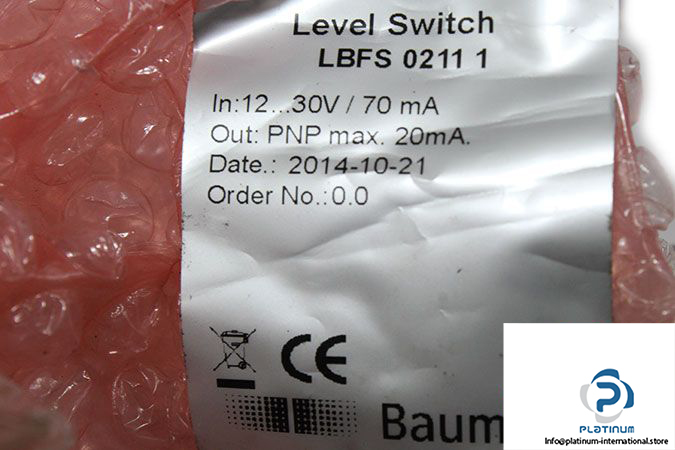

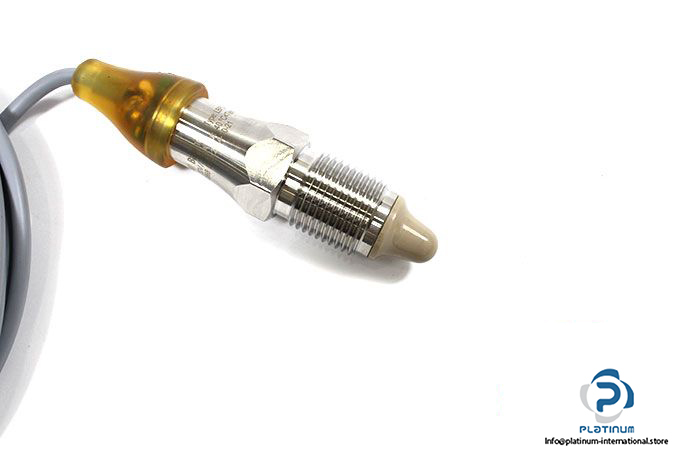

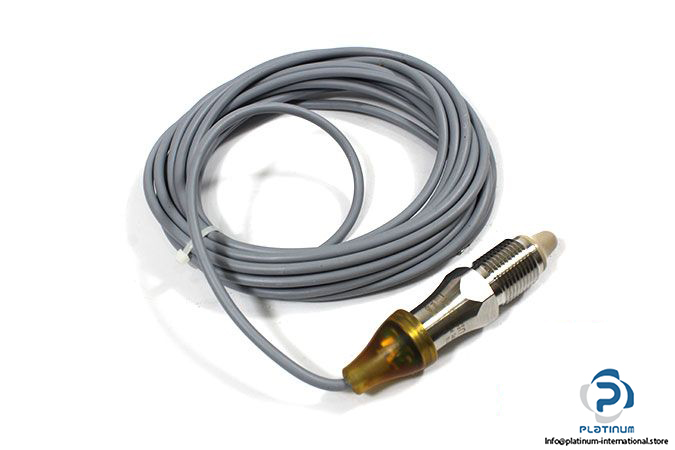

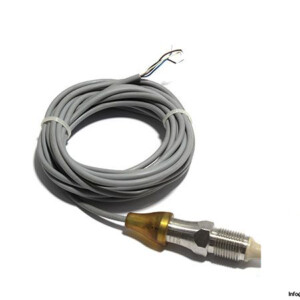

Baumer LBFS-02111.0 Level Switch
Hersteller: BAUMER Typ: CLEVERLEVEL SCHALTER Modell: LBFS-02111.0 Matr. Nr.: 11044624 Seriennummer: 83568
Manufacturer: BAUMER
Type: CLEVERLEVEL SWITCH
Model: LBFS-02111.0
Matr. No.: 11044624
Serial No.: 83568
Process connection: G1/2B ISO 228-1
Material of the process connection: AISI 304 stainless steel, 1.4301

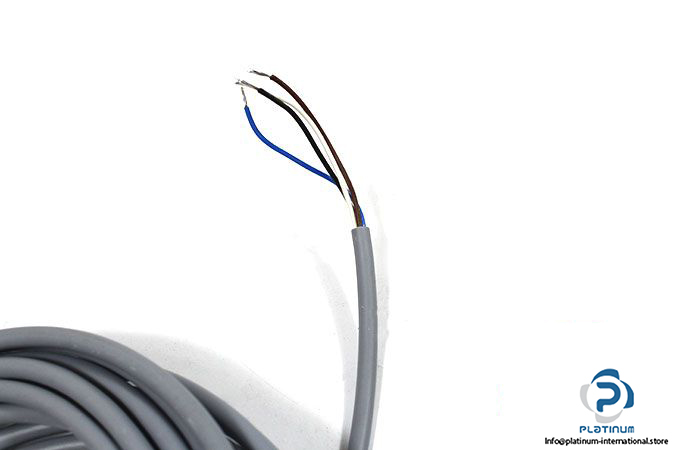

Electrical connection: 5 m cable, 4 wires, PVC (3)
Supply range: 12 … 30 VDC
Input current: 35 mA
Max. current: 20 mA
Max. Pressure: 100 bar
Output type: PNP
Max. Response time: 0.2 Sec
Protection Class: T1 … T5
Safety: Standard
Protection class: IP67
Frequency: 100 … 180 MHz
Process temperature: – 40 … 115 °C
Ambient Temperature: – 40 … 70 °C
