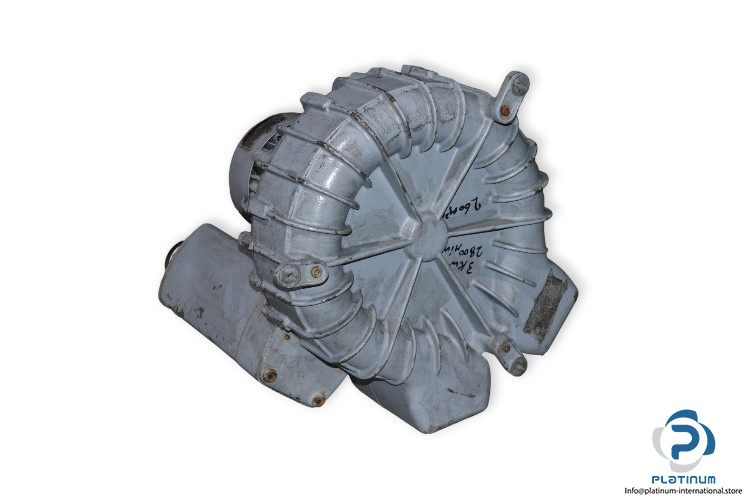

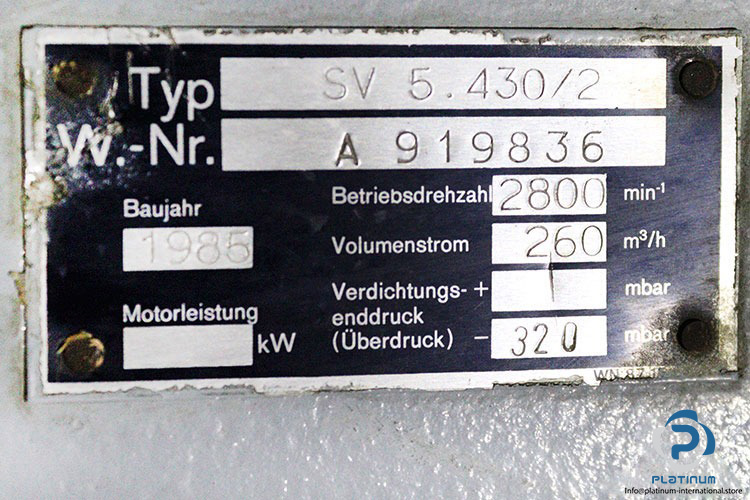

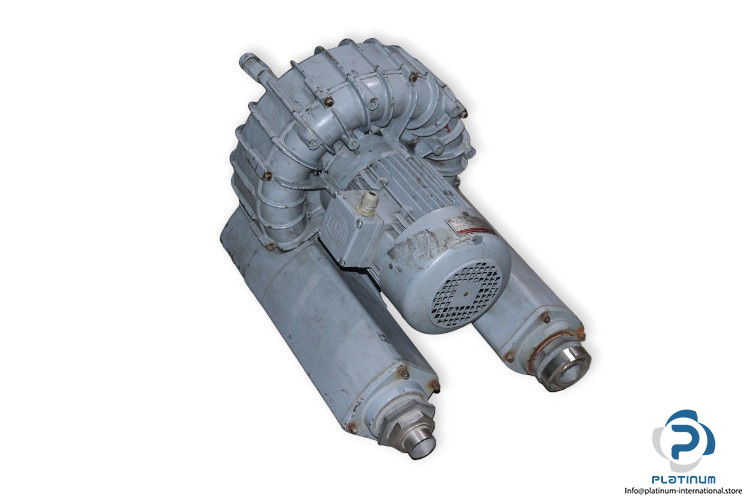

Becker SV 5.430/2 Single Side Channel Blower

Manufacturer: Becker
Type: Single Side Channel Blower
Model: SV5.430/2

Channel Design: Single
Rated Pressure [mbar]: 320
Max. Flow Rate [m³/min]: 260
Rated Speed [rpm]: 2800

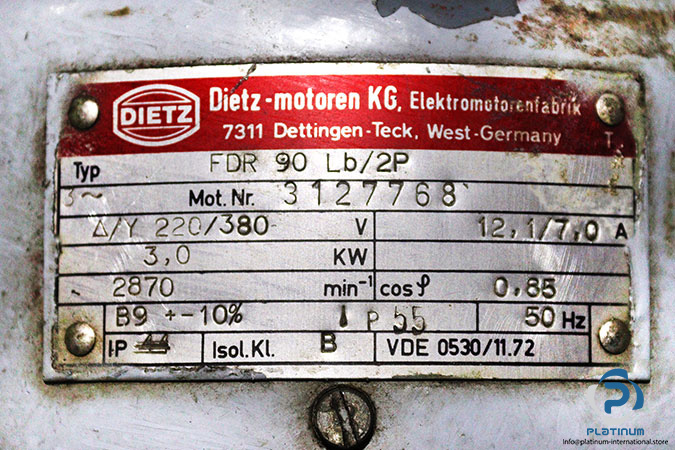

Attachment: Dietz FDR 90LB/2P 3-Phase Electric Motor
Manufacturer: Dietz
Type: 3-Phase Electric Motor
Model: FDR90LB/2P
Rated Power [kW]: 3.0
Supply Voltage [V]: 220/380
Rated Current [A]: 12.1/7.0
Frequency [Hz]: 50
Rated Speed [rpm]: 2870
Protection Class [IP]: 55
Power Factor [cos]: 0.85
Duty: S1
Insulation Class: F
